In modern piping systems, valves play a critical role in controlling the flow of liquids and gases. Among the many valve types available, the ball valve stands out for its durability, tight sealing performance, and simple operation. From oil and gas pipelines to water treatment plants and chemical processing facilities, ball valves are widely used in industries that require reliable shut-off and flow control.
But what exactly is a ball valve? How do ball valves work in industrial and residential applications? And why are they often preferred over gate valves, globe valves, or butterfly valves?
In this in-depth guide, we will explore the structure, working principle, types, materials, advantages, and applications of ball valves. Whether you are an engineer, procurement specialist, contractor, or distributor, this article will help you understand everything you need to know about industrial ball valves, stainless steel ball valves, and other related valve solutions.
A ball valve is a quarter-turn valve that uses a hollow, perforated, and pivoting ball to control the flow of media through a pipeline. The ball inside the valve body has a hole (called a bore) drilled through its center. When the bore is aligned with the pipe, fluid flows freely. When the ball is rotated 90 degrees, the bore becomes perpendicular to the flow path, completely blocking it.
This simple yet effective design allows ball valves to provide:
Fast shut-off
Excellent sealing performance
Minimal pressure drop
Long service life
Ball valves are commonly used in applications involving water, oil, gas, steam, chemicals, and compressed air. Because of their tight sealing capability, they are especially suitable for systems where leakage prevention is critical.
To understand how ball valves work, it is essential to know their main components:
The valve body houses all internal components. It is typically made of materials such as:
Stainless steel
Carbon steel
Brass
PVC or other plastics
The body can be one-piece, two-piece, or three-piece, depending on the design and maintenance requirements.
The ball is the core component. It contains a hole (bore) through the center. The size and shape of the bore determine the valve’s flow characteristics, such as full port or reduced port.
Seats are sealing rings that hold the ball in place and ensure a tight seal when the valve is closed. They are often made of PTFE (Teflon), reinforced PTFE, or other high-performance materials.
The stem connects the ball to the actuator or handle. When the handle is turned, the stem rotates the ball.
Ball valves can be operated manually using a lever handle or automatically using pneumatic, electric, or hydraulic actuators.
The working principle of a ball valve is based on a quarter-turn rotation mechanism.
Open Position:
When the handle is parallel to the pipeline, the ball’s bore aligns with the pipe. Fluid flows through the valve with minimal resistance.
Closed Position:
When the handle is turned 90 degrees (perpendicular to the pipeline), the ball rotates, and the bore blocks the flow path. The seats press tightly against the ball surface, preventing leakage.
This simple rotation mechanism allows for quick and reliable shut-off, making ball valves ideal for emergency isolation applications.
Although ball valves are primarily designed for on/off control, some configurations allow for partial flow regulation. However, they are not typically recommended for precise throttling, as prolonged partial opening may cause seat wear.
For better flow control, special designs such as V-port ball valves are used.
Ball valves come in various designs to meet different operational requirements.
Full Port Ball Valve:
The bore diameter matches the pipeline diameter. This design provides minimal pressure drop and is ideal for pigging operations in oil and gas pipelines.
Reduced Port Ball Valve:
The bore is smaller than the pipeline diameter. This design reduces cost and weight but causes a slight pressure drop.
In a floating ball valve, the ball is not fixed. It is held in place by the seats and can move slightly under pressure. When closed, upstream pressure pushes the ball against the downstream seat, ensuring tight sealing.
Floating ball valves are commonly used in low to medium pressure systems.
In a trunnion ball valve, the ball is supported by bearings at the top and bottom. This design reduces torque and improves sealing performance in high-pressure applications.
Trunnion mounted ball valves are widely used in oil and gas, petrochemical, and power generation industries.
Three-way ball valves allow flow to be directed between different pipelines. They are commonly used in mixing or diverting applications.
Manual ball valve (lever-operated)
Pneumatic ball valve
Electric ball valve
Hydraulic ball valve
Actuated ball valves are ideal for automated industrial systems and remote operation.
The choice of material affects performance, durability, and corrosion resistance.

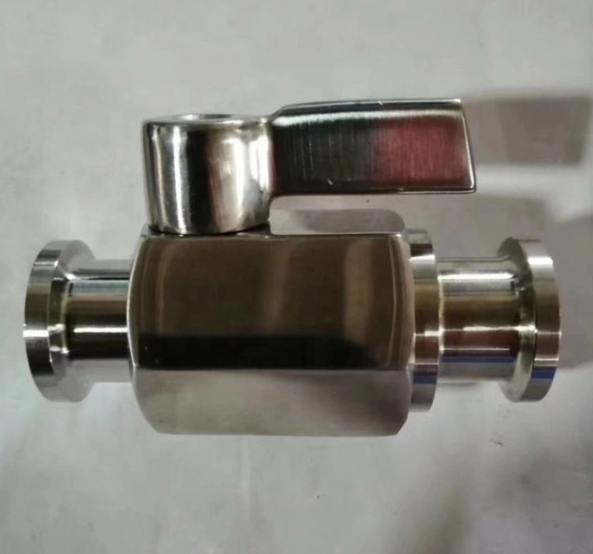

Stainless steel ball valves are widely used in:
Chemical processing
Food and beverage industry
Pharmaceutical industry
Marine environments
They offer excellent corrosion resistance and high strength.
Carbon steel ball valves are suitable for high-temperature and high-pressure applications but may require coatings to resist corrosion.
Brass ball valves are commonly used in plumbing and water supply systems.
PVC ball valves are lightweight and cost-effective, often used in irrigation and chemical handling.
Manufacturers like Jarzoo provide a wide range of ball valve materials to meet different industry standards and operating conditions.
Ball valves are popular for several reasons:
A 90-degree turn is enough to fully open or close the valve.
Ball valves offer excellent sealing performance with minimal leakage.
Full port ball valves allow smooth flow with minimal resistance.
With fewer moving parts compared to other valve types, ball valves have a long service life.
Three-piece ball valves allow easy disassembly and repair without removing the entire valve from the pipeline.
Ball valves are used across many industries:
Pipeline isolation
Crude oil transportation
Natural gas distribution
Pump isolation
Filtration systems
Wastewater treatment
Corrosive fluid handling
Solvent processing
Acid and alkali transfer
Heating and cooling water control
Chilled water pipelines
Hygienic fluid control
CIP (Clean-in-Place) systems
High-quality industrial ball valves, such as those produced by Jarzoo, are designed to meet international standards like API, ANSI, and ISO.
Ball valves provide faster operation.
Gate valves are better for full flow applications with minimal pressure drop over long distances.
Globe valves are better for throttling.
Ball valves are better for shut-off applications.
Ball valves offer tighter sealing.
Butterfly valves are lighter and more cost-effective for large diameters.
To ensure long service life:
Install the valve according to the flow direction (if specified).
Avoid excessive torque during operation.
Perform periodic inspection of seats and seals.
Keep the valve clean from debris and sediment buildup.
Choose the correct material based on operating temperature and pressure.
Proper selection and maintenance reduce downtime and improve system safety.
So, what is a ball valve and how do ball valves work? In simple terms, a ball valve is a quarter-turn valve that uses a rotating ball with a bore to control fluid flow. Its straightforward design ensures fast operation, tight sealing, and long-lasting performance.
From floating ball valves to trunnion mounted ball valves, and from stainless steel ball valves to PVC options, this versatile valve type plays a vital role in countless industries. Understanding its working principle, materials, advantages, and applications helps engineers and buyers make informed decisions.
As industrial systems continue to demand higher efficiency and reliability, ball valves remain one of the most trusted solutions for flow control and pipeline isolation. Choosing the right valve design and material ensures optimal performance, safety, and cost-effectiveness for years to come.
The main function of a ball valve is to provide reliable on/off control of fluid flow in a pipeline.
Standard ball valves are primarily for shut-off applications. For throttling, a V-port ball valve is recommended.
A floating ball valve uses pressure to push the ball against the seat, while a trunnion ball valve supports the ball with bearings, making it suitable for high-pressure systems.
Stainless steel ball valves or specially coated carbon steel valves are ideal for corrosive applications.
A full port design reduces pressure drop and allows pipeline cleaning operations such as pigging.
