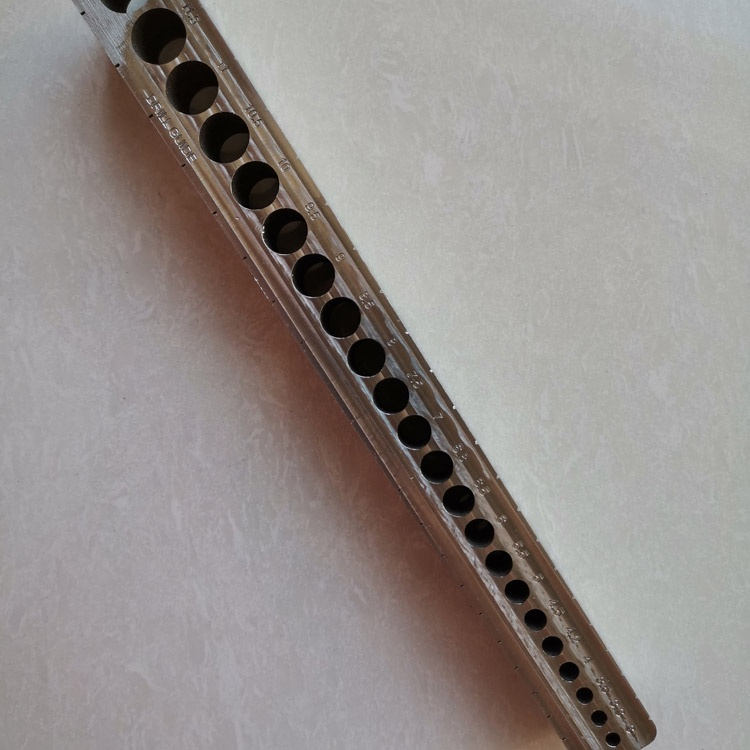

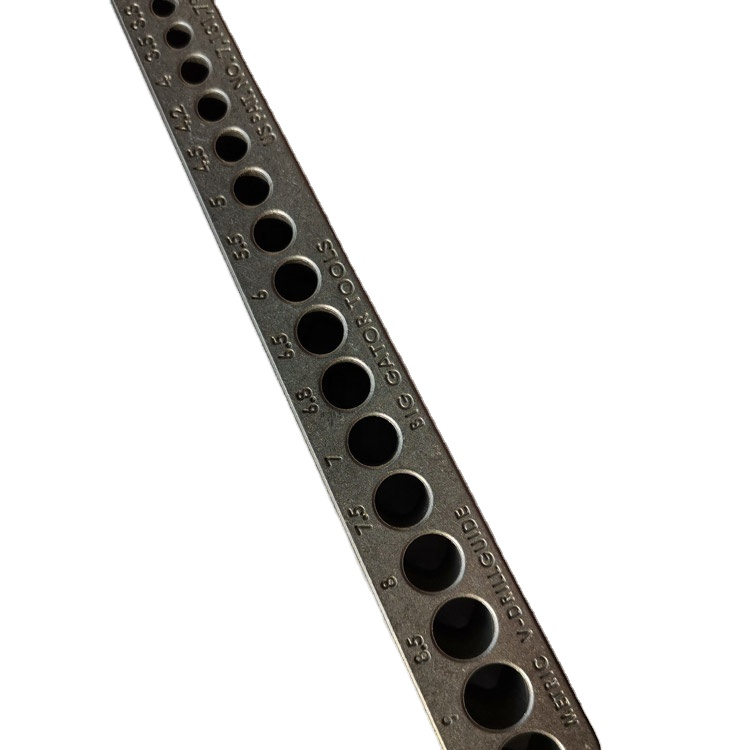

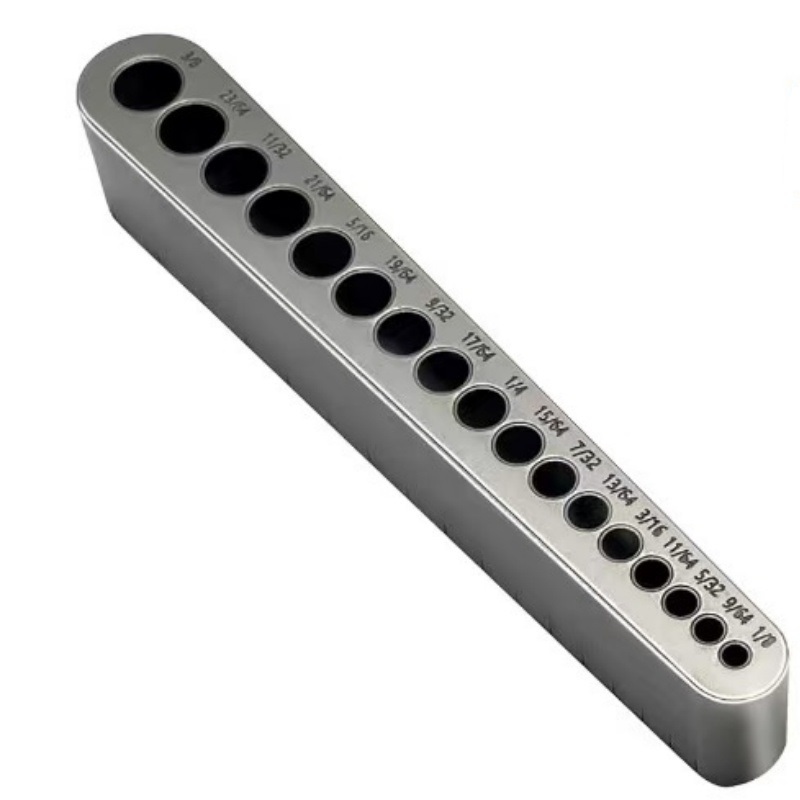

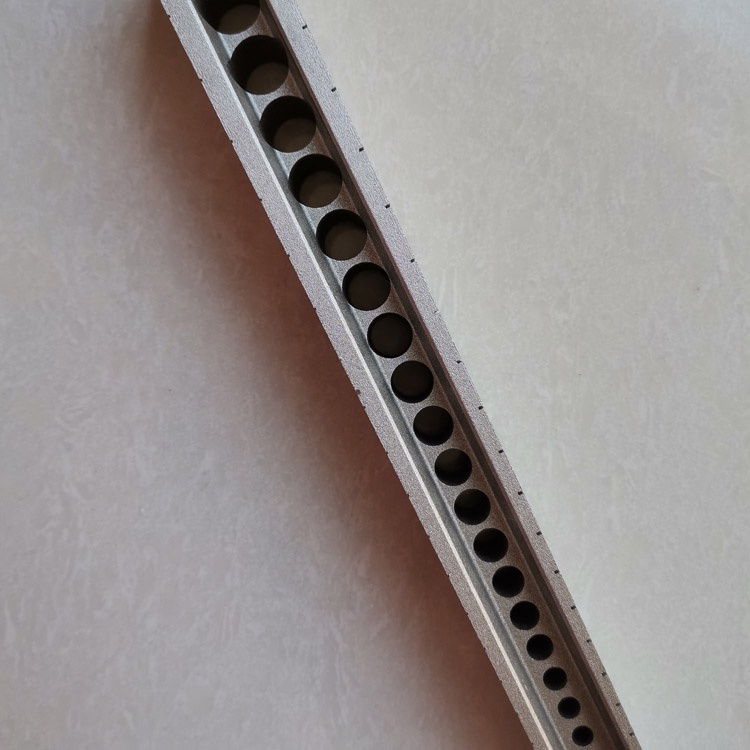

Straight Hole Drilling Guide Plate: Overview & Applications
1. Key Features:
- Alignment Guides: Integrated slots or bushings to position drill bits precisely.
- Material Stability: Typically made of hardened steel, aluminum, or high-strength plastics (e.g., PEEK) to resist wear and vibration.
- Adjustability: Some models offer modular designs for customizable hole patterns or angles.
2. Technical Advantages
- High Precision: Maintains hole perpendicularity within ±0.1° and positional accuracy up to ±0.05 mm, critical for assemblies requiring tight tolerances (e.g., aerospace components).
- Efficiency: Reduces setup time by eliminating manual marking and measurement, enabling rapid batch processing.
- Safety: Prevents drill bit slippage, protecting operators and workpieces from damage.
- Versatility: Compatible with various drilling methods (e.g., twist drills, CNC machining centers, or handheld drills).
3. Typical Applications
- Aerospace & Defense
- Drilling mounting holes for turbine blades, fuselage panels, or satellite components.
- Example: Aligning fastener holes in aluminum alloy structural parts to ensure load distribution.
- Automotive Manufacturing
- Creating precise holes for engine blocks, transmission housings, or chassis components.
- Example: Guiding drill bits for oil gallery passages in cylinder heads.
- Medical Device Production
- Fabricating orthopedic implants (e.g., bone plates) with biocompatible material drilling.
- Example: Ensuring screw holes in titanium hip implants align with anatomical requirements.
- Electronics & Precision Engineering
- Drilling circuit board housings or heat sinks with micro-sized holes.
- Example: Creating ventilation holes in 5G base station enclosures.
- Construction & Architecture
- Installing anchor bolts in concrete or steel structures with consistent spacing.
- Example: Guiding holes for façade cladding systems on high-rise buildings.
4. Design Considerations
- Material Selection:
- Hardened steel for high-wear applications (e.g., automotive mass production).
- Aluminum alloys for lightweight portability (e.g., field repairs).
- Customization:
- 3D-printed guide plates for prototyping or low-volume production.
- Laser-etched markings for quick reference for hole diameters/depths.
- Integration with CNC:
- Some advanced guide plates incorporate sensors or IoT connectivity for real-time drilling data monitoring.
5. Industry Standards & Compliance
- ISO 2768-1: General tolerance standards for hole positions in mechanical components.
- ASTM E8: Tensile testing standards for guide plate material strength validation.
- FDA/GMP: For medical-grade guide plates, ensuring biocompatibility and sterilization compatibility.
Example Use Case (Automotive)
Scenario: Drilling oil cooler mounting holes in an aluminum engine block.
Challenge: Holes must be perpendicular to the block surface and aligned within 0.02 mm to prevent coolant leaks.
Solution: A CNC-compatible straight hole drilling guide plate with carbide bushings ensures consistent hole quality across 10,000+ units.
Supported Materials
We offer CNC machining services for a wide variety of industrial-grade metals and engineering plastics:
Metal Materials:
Aluminum Alloys: 2000 series, 5052, 6061, 7075 — lightweight, corrosion-resistant, ideal for structural parts and enclosures.
Stainless Steels: SUS303, SUS304, SS316, SS316L, 17-4PH — perfect for high-strength and corrosion-resistant applications in medical and marine fields.
Carbon & Alloy Steels: 1214L, 1215, 1045, 4140, SCM440, 40CrMo — engineered for toughness and wear resistance.
Brass & Bronze Alloys: C260, C360, H59–H70, H62, H65, H68, H70, copper — excellent for precision fittings, electronics, and decorative elements.
Titanium: Grade F1 to F5 — known for its high strength-to-weight ratio, ideal for aerospace and biomedical components.
Engineering Plastics:
Acetal (POM), Nylon (PA), PMMA (Acrylic), PVC, Polyurethane, PTFE (Teflon), PEEK, and more — selected for electrical insulation, chemical resistance, and low friction.
Not sure which material fits your project? Our engineers can help you select the best option based on application and cost-efficiency.
Surface Finishing Options
We provide a full spectrum of surface finishing services to improve durability, functionality, and appearance:
Anodizing: Hard and decorative finishes for aluminum components.
Bead Blasting: Creates a uniform matte texture.
Brushing / Polishing: Enhances surface aesthetics and touch feel.
Plating: Zinc, Nickel, Chrome, Titanium — for corrosion and wear resistance.
PVD Coating: Advanced wear-resistant coatings for luxury-grade components.
Powder Coating / Painting: Durable color finish options for visual impact.
Passivation / Electropolishing: Ideal for stainless steel corrosion resistance.
Knurling, Laser Etching & Engraving: Custom logos, textures, and grip patterns.
All finishes are tested for adhesion, thickness, and durability to ensure long-term performance.
Why Customers Choose Us:
- Design-to-Part Consultation– Submit your CAD model and get DFM analysis within 24h
- Material Versatility– From titanium and stainless steel to PEEK and nylon
- Precision Matters– Tolerance capability up to ±0.005 mm with full inspection reports
- Rapid Lead Time– Efficient prototyping and low-volume runs as fast as 5–7 days
- Traceable Quality– All components tagged and recorded for full traceability
32+ years professional
industry production experience and
experienced R&D team and
international trade service team. |
Attentive pre-sales
and after-sales service. timely
resolution of the customers'
problems. |
Quality assurance. strict material
selection and quality inspection system.
strict QC system to guarantee the
superior quality. The best products
at the most reasonable price. |
OEM&ODM Customisable
according to the customers' drawings
or products.we have experienced
techinicians to help you design
what you want. |
Industries We Serve:
- Aerospace sensor casings, brackets
- Medical equipment shell & insert plates
- Automation end-effectors and fixture components
- Robotics rotating joints and arms
- Custom connectors and adapter fitting
Our CNC Machining Capabilities:
Machines
- Multi-axis CNC milling (3, 4, 5-axis)
- Turn-mill centers for complex geometries
- Precision Swiss lathes
Operations
- Pocket milling, contour cutting
- Deep hole drilling
- Internal threading
- Surface contouring
Quality is Engineered, Not Assumed
We implement a 3-step quality assurance system, covering:
- Pre-machining verification (tolerance and fixture simulation)
- In-process dimensional control
- Final QC with CMM, roughness testers, and hardness gauges
Every part comes with an inspection summary upon request.
From Prototype to Production
Need 1 prototype for testing? Or a 500-piece batch for validation?
We support flexible order volumes. With in-house programming and digital job tracking, we reduce turnaround time while maintaining exceptional accuracy.
Get a Fast Custom Quote
Submit your STEP, IGS, or PDF drawing — our engineering team will analyze and provide:
- Full cost breakdown
- Lead time estimate
- Material & finish recommendations
- DFM feedback (design for manufacturability)
Contact Our CNC Experts！
