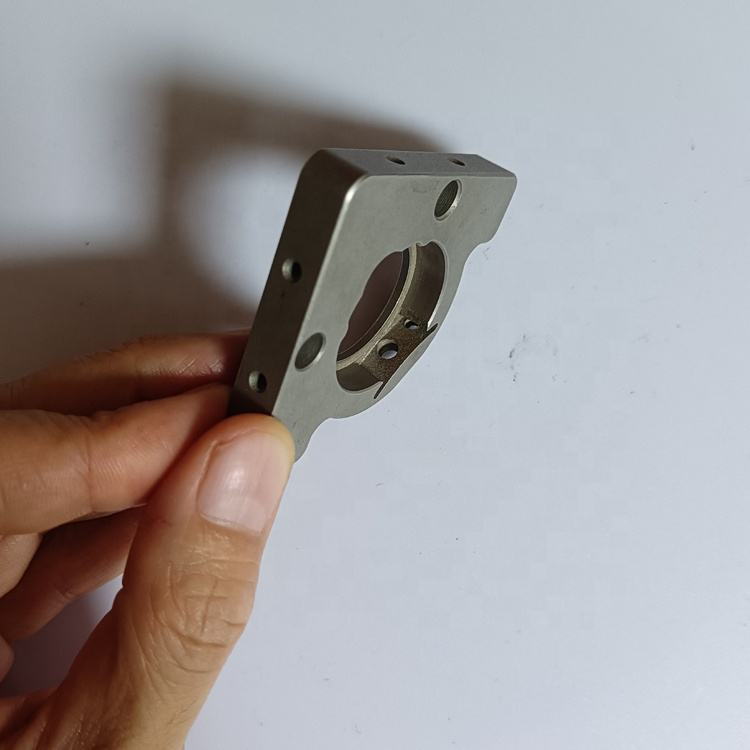

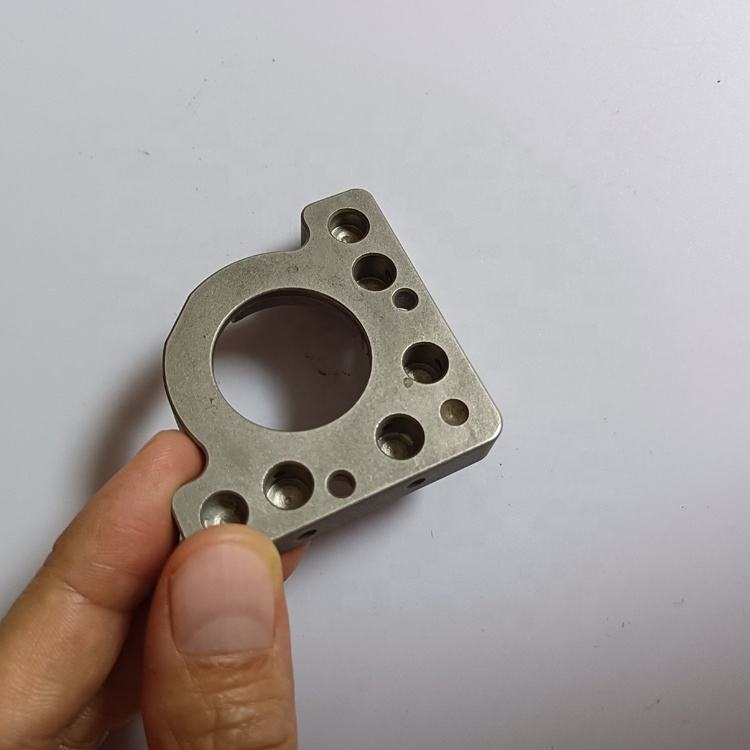

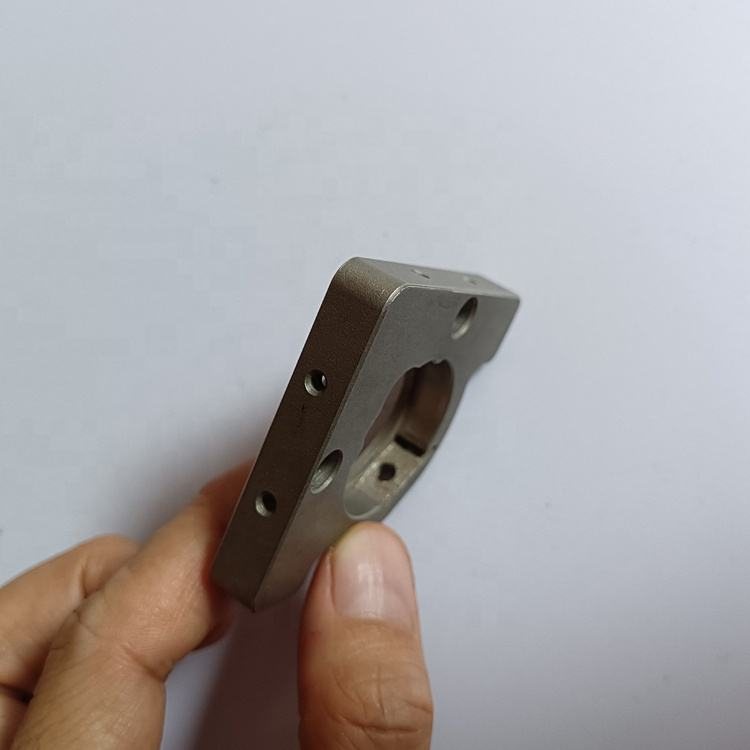

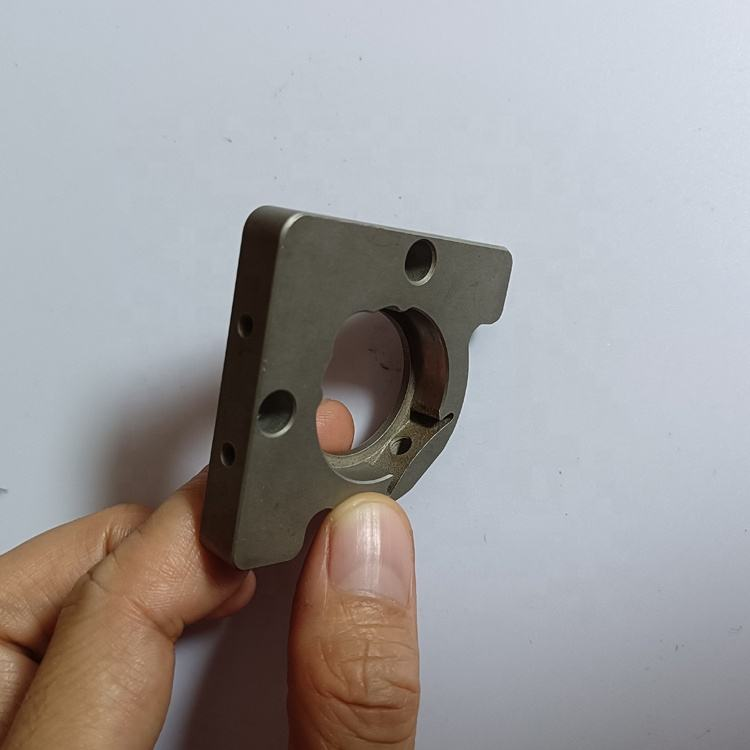

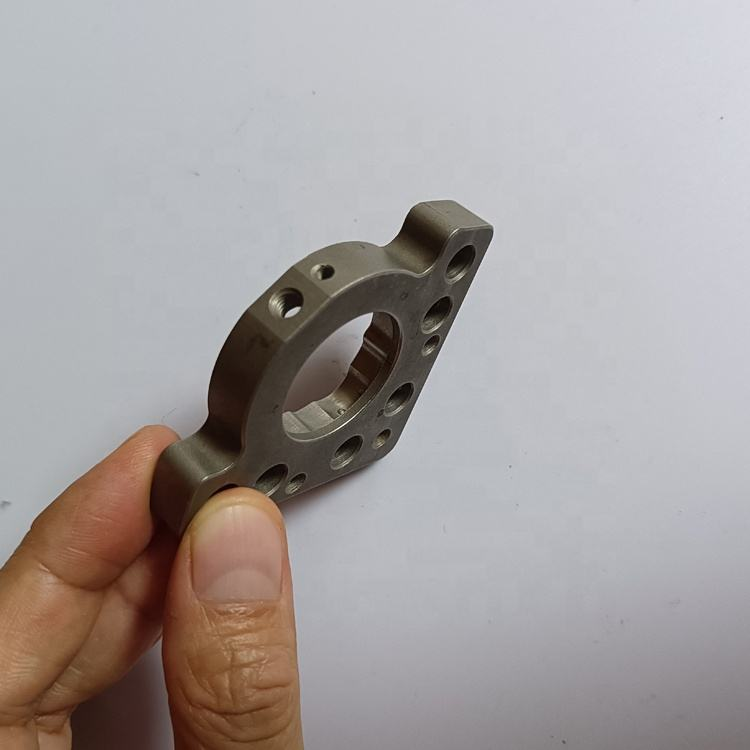

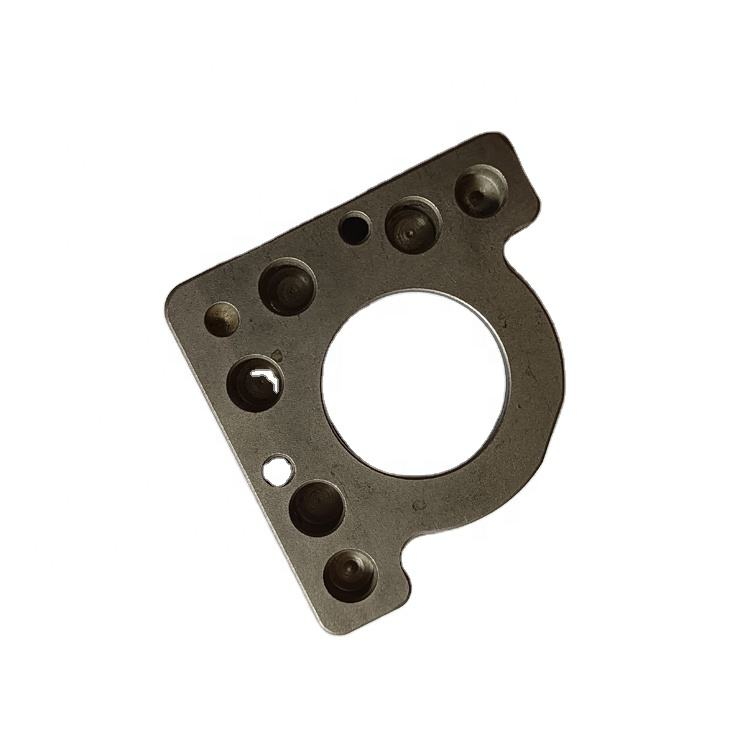

Custom CNC Machining Stainless Steel Parts for Optical Experiment

Optical Experiment Accessories: A Comprehensive English Introduction

1. Optical Platform & Mounting Systems

Optical Platform

• A vibration-damped stainless steel surface with threaded holes (e.g., M6, 25 mm spacing) for securing components.
• Used in laser alignment, interferometry, and imaging experiments.

Modular Optical Mounts

• Post Holders & Rods: Adjustable stainless steel rods with height markings for precise component positioning.
• Cage Systems: Four-rod assemblies for 3D alignment of lenses, mirrors, or detectors (e.g., Thorlabs’ 30 mm cage system).
• Flip Mounts: Allow temporary insertion/removal of optical elements (e.g., beam samplers) without misaligning the setup.

2. Optical Components

Lenses (Optical Lenses)

• Convex/Concave Lenses: For focusing or diverging light beams.
• Aspheric Lenses: Reduce spherical aberration in high-precision systems (e.g., laser focusing).
• Focal Length: Critical for imaging systems (e.g., microscope objectives with 10x–100x magnification).

Mirrors (Optical Mirrors)

• First-Surface Mirrors: High-reflectivity coatings (e.g., aluminum or silver) for laser beam steering.
• Dichroic Mirrors: Reflect specific wavelengths while transmitting others (used in fluorescence microscopy).

Beam Splitters (Beamsplitters)

• Divide a laser beam into two paths (e.g., 50:50 or 90:10 ratio) for interferometry or dual-channel experiments.

Polarizers & Wave Plates

• Linear Polarizers: Filter light to a single polarization state (e.g., Glan-Taylor polarizers for high extinction ratios).
• Quarter-Wave Plates: Convert linear to circular polarization (used in optical quantum experiments).

Optical Filters

• Bandpass Filters: Transmit a narrow wavelength range (e.g., 532 nm for green lasers).
• Neutral Density Filters: Reduce light intensity uniformly (e.g., ND2 filters for camera exposure control).

3. Light Sources & Detectors

Light Sources

• Lasers: CW (continuous-wave) or pulsed lasers (e.g., Nd:YAG for 1064 nm output).
• LEDs: Broadband sources for spectroscopy or imaging (e.g., white LED for color calibration).

Detectors

• Photodiodes: Fast response for laser power monitoring (e.g., Si photodiodes for visible light).
• CCD/CMOS Cameras: Capture images or interference patterns (e.g., sCMOS cameras for low-light imaging).

4. Alignment & Measurement Tools

Iris Diaphragms (Aperture Stops)

• Adjustable holes for controlling beam diameter or blocking stray light.

Reticle Eyepieces

• Eyepieces with crosshairs or grids for precise alignment (e.g., aligning laser cavities).

Power Meters

• Measure laser output power (e.g., thermal or photodiode-based sensors).

Wavefront Sensors

• Analyze beam quality (e.g., Shack-Hartmann sensors for aberration correction).

5. Specialized Accessories

Optical Fibers

• Multimode Fibers: Transmit high-power lasers (e.g., for medical endoscopes).
• Single-Mode Fibers: Preserve polarization for quantum optics experiments.

Diffusers & Homogenizers

• Scatter light uniformly (e.g., for LED illumination in machine vision).

Optical Tables & Breadboards

• Vibration-isolated platforms for sensitive experiments (e.g., gravitational wave detection).

6. Safety Equipment

Laser Safety Goggles

• Filter specific wavelengths (e.g., OD 6+ for 1064 nm Nd:YAG lasers).

Enclosures & Interlocks

• Prevent accidental exposure to high-power lasers (e.g., Class 4 laser safety cabinets).

Key Applications

• Laser Physics: Aligning resonators, measuring beam quality (M² factor).
• Microscopy: Building custom imaging systems with infinity-corrected objectives.
• Spectroscopy: Dispersing light with diffraction gratings for material analysis.
• Quantum Optics: Generating entangled photons with nonlinear crystals (e.g., BBO crystals).

Technical Considerations

• Material Compatibility: Use UV-grade fused silica for ultraviolet experiments.
• Coating Durability: Diamond-like carbon (DLC) coatings for scratch-resistant mirrors.
• Thermal Stability: Low-CTE (coefficient of thermal expansion) materials for precision setups.

Supported Materials

We offer CNC machining services for a wide variety of industrial-grade metals and engineering plastics:

Metal Materials:

Aluminum Alloys: 2000 series, 5052, 6061, 7075 — lightweight, corrosion-resistant, ideal for structural parts and enclosures.

Stainless Steels: SUS303, SUS304, SS316, SS316L, 17-4PH — perfect for high-strength and corrosion-resistant applications in medical and marine fields.

Carbon & Alloy Steels: 1214L, 1215, 1045, 4140, SCM440, 40CrMo — engineered for toughness and wear resistance.

Brass & Bronze Alloys: C260, C360, H59–H70, H62, H65, H68, H70, copper — excellent for precision fittings, electronics, and decorative elements.

Titanium: Grade F1 to F5 — known for its high strength-to-weight ratio, ideal for aerospace and biomedical components.

Engineering Plastics:

Acetal (POM), Nylon (PA), PMMA (Acrylic), PVC, Polyurethane, PTFE (Teflon), PEEK, and more — selected for electrical insulation, chemical resistance, and low friction.

Not sure which material fits your project? Our engineers can help you select the best option based on application and cost-efficiency.

Surface Finishing Options

We provide a full spectrum of surface finishing services to improve durability, functionality, and appearance:

Anodizing: Hard and decorative finishes for aluminum components.

Bead Blasting: Creates a uniform matte texture.

Brushing / Polishing: Enhances surface aesthetics and touch feel.

Plating: Zinc, Nickel, Chrome, Titanium — for corrosion and wear resistance.

PVD Coating: Advanced wear-resistant coatings for luxury-grade components.

Powder Coating / Painting: Durable color finish options for visual impact.

Passivation / Electropolishing: Ideal for stainless steel corrosion resistance.

Knurling, Laser Etching & Engraving: Custom logos, textures, and grip patterns.

All finishes are tested for adhesion, thickness, and durability to ensure long-term performance.

Why Customers Choose Us:

• Design-to-Part Consultation– Submit your CAD model and get DFM analysis within 24h
• Material Versatility– From titanium and stainless steel to PEEK and nylon
• Precision Matters– Tolerance capability up to ±0.005 mm with full inspection reports
• Rapid Lead Time– Efficient prototyping and low-volume runs as fast as 5–7 days
• Traceable Quality– All components tagged and recorded for full traceability

Industries We Serve:

• Aerospace sensor casings, brackets
• Medical equipment shell & insert plates
• Automation end-effectors and fixture components
• Robotics rotating joints and arms
• Custom connectors and adapter fitting

Our CNC Machining Capabilities:

Machines

• Multi-axis CNC milling (3, 4, 5-axis)
• Turn-mill centers for complex geometries
• Precision Swiss lathes

Operations

• Pocket milling, contour cutting
• Deep hole drilling
• Internal threading
• Surface contouring

Quality is Engineered, Not Assumed

We implement a 3-step quality assurance system, covering:

• Pre-machining verification (tolerance and fixture simulation)
• In-process dimensional control
• Final QC with CMM, roughness testers, and hardness gauges
  Every part comes with an inspection summary upon request.

From Prototype to Production

Need 1 prototype for testing? Or a 500-piece batch for validation?
We support flexible order volumes. With in-house programming and digital job tracking, we reduce turnaround time while maintaining exceptional accuracy.

Get a Fast Custom Quote

Submit your STEP, IGS, or PDF drawing — our engineering team will analyze and provide:

• Full cost breakdown
• Lead time estimate
• Material & finish recommendations
• DFM feedback (design for manufacturability)

Contact Our CNC Experts！
