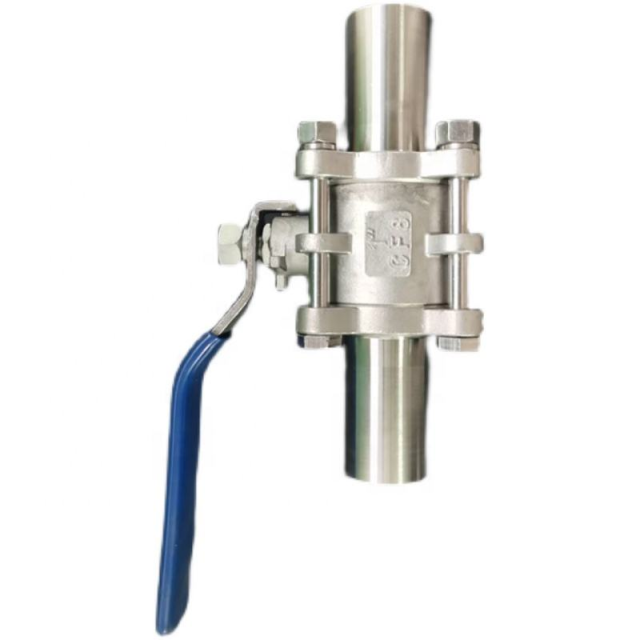

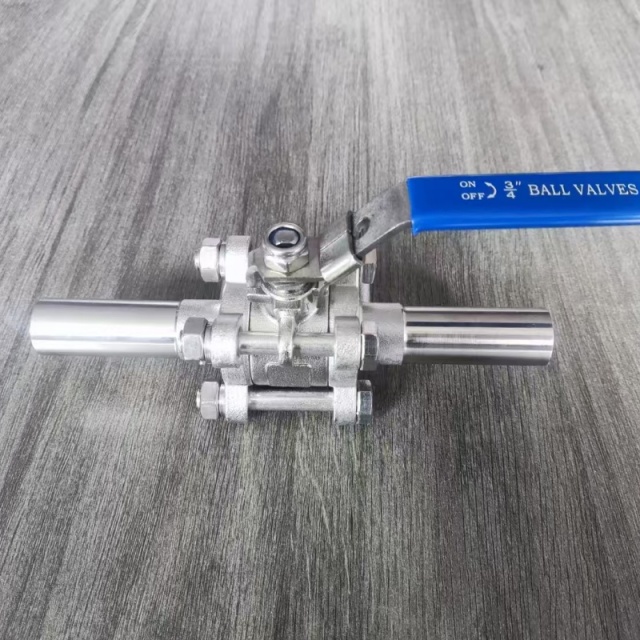

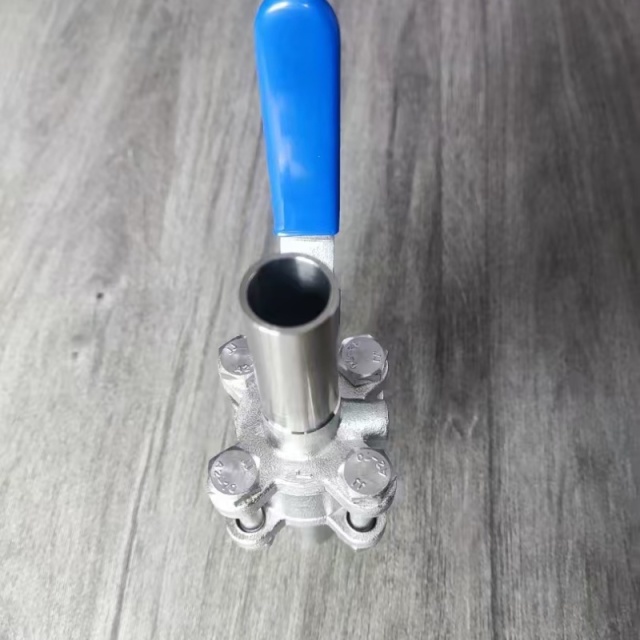

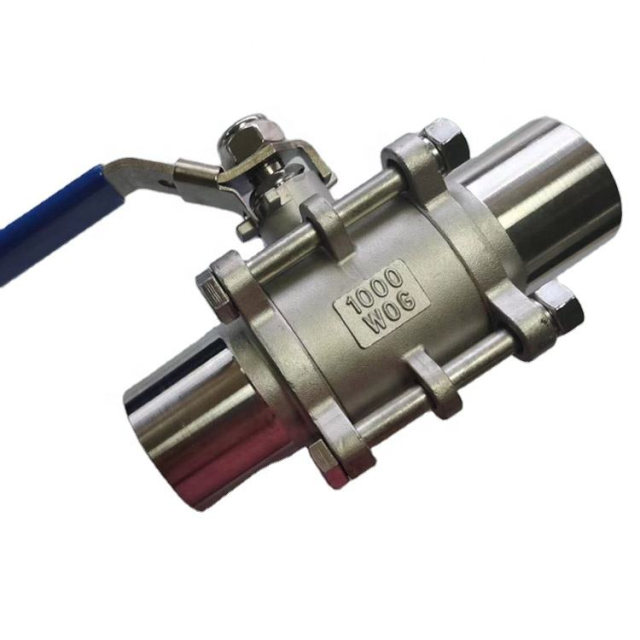

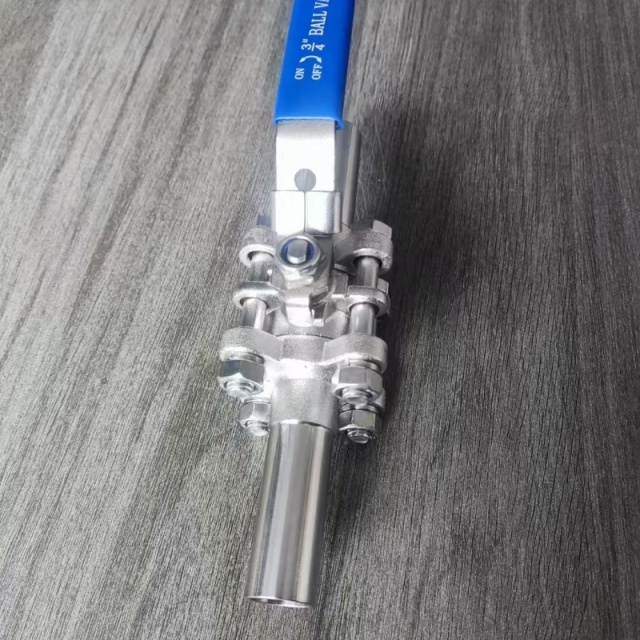

Custom Hot Sale High Quality Stainless Steel 304 316 3PCS Long Butt Weld End Ball Valve

Key Features & Benefits

Stainless steel three-piece socket weld ball valves combine the corrosion resistance of stainless steel materials, the maintainability of the three-piece structure, and the high-strength characteristics of butt-weld connections, demonstrating significant advantages in industrial fluid control. Below is a detailed analysis of their core strengths:

1. Exceptional Corrosion Resistance

Material Advantages:

• Constructed from 304/316L stainless steel, these valves exhibit superior resistance to chloride ions, acidic media (e.g., sulfuric acid, hydrochloric acid), and oxidative environments.
• 316L, enriched with molybdenum (Mo), offers enhanced pitting and crevice corrosion resistance, making it ideal for harsh conditions like seawater and chemical processing.

Application Scenarios:

• Marine Engineering: Seawater desalination, shipboard piping systems.
• Chemical Industry: Acid/alkali transfer, organic solvent handling.
• Food & Pharmaceuticals: Sterile fluid transfer, compliant with FDA/GMP standards.

2. High Strength and Pressure Resistance

Butt-Weld Connection Design:

• The valve is fused with the pipeline via high-temperature welding, eliminating loosening risks caused by vibration or thermal expansion, and withstanding pressures up to PN64 (ANSI Class 4500)—far exceeding threaded ball valves.

Structural Reinforcement:

• The three-piece body is bolted to distribute stress concentration, complemented by thickened valve walls to resist high-pressure surges and water hammer impacts, extending service life.

3. Zero-Leakage Sealing Assurance

Bidirectional Sealing Technology:

• Metal-to-metal hard sealing (e.g., Stellite coating) or soft sealing (PTFE/RPTFE) between the ball and seats ensures bidirectional zero leakage, meeting API 598/ISO 5208 Class VI standards.

Fire-Safe Design:

• Certain models incorporate graphite sealing rings and anti-static springs to maintain sealing integrity under fire conditions, passing API 607 fire safety certification.

4. Low Flow Resistance and Energy Efficiency

Full-Bore Design:

• The ball’s bore matches the pipeline’s inner diameter, reducing fluid resistance (Kv value close to the pipe itself) by 15–30%, cutting pump energy consumption.

Self-Cleaning Flow Path:

• 360° fluid scouring prevents debris deposition, making it suitable for particle-laden media (e.g., pulp, slurry).

5. Modular Maintenance Convenience

Split-Body Structure:

• Valve bodies can be disassembled by loosening bolts, enabling online seat/ball replacement without pipeline shutdown, slashing maintenance time by over 70%.

Standardized Interfaces:

• Compliant with ISO 5211, these valves support rapid integration with pneumatic/electric actuators for remote automation.

6. Adaptability to Extreme Conditions

Wide Temperature Range:

• Cryogenic Applications: LNG valves feature extended stems to endure -196°C (paired with austenitic stainless steel).
• High-Temperature Applications: Special valve seats withstand 600°C steam (e.g., power plant boiler feedwater systems).

Vibration Resistance:

• Rigid butt-weld connections minimize vibration transmission, ideal for high-vibration environments like compressor discharge lines.

7. Long-Term Cost Efficiency

Low Lifecycle Costs:

• Despite higher initial costs than carbon steel valves, corrosion resistance extends maintenance intervals to 5–10 years, reducing total costs by over 40%.

Reduced Unplanned Downtime:

• High reliability minimizes leakage risks, avoiding production interruptions and environmental penalties.

8. Environmental Compliance and Certifications

Non-Polluting Materials:

• Stainless steel and PTFE components comply with RoHS/REACH standards, eliminating heavy metal contamination risks.

Comprehensive Certifications:

• Certified under CE/ATEX (explosion-proof), PED (Pressure Equipment Directive), and other global market access requirements.

Typical Application Cases

• Oil & Gas:
  In a Saudi Arabian oilfield project, 316L three-piece butt-weld ball valves replaced traditional gate valves, achieving zero leakage in high-pressure wellhead gas flow and extending service life to 8 years.
• Semiconductor Manufacturing:
  A TSMC factory adopted ultrapure water-specific ball valves (electropolished) to meet 18 MΩ·cm resistivity standards for chip cleaning processes.
• Nuclear Power:
  A Chinese third-generation nuclear plant selected radiation-resistant stainless steel ball valves, certified to 1E K3 standards for reactor coolant system safety.

Selection Guidelines

• Media Corrosivity:
  • Strong acids: Opt for 316L + Hastelloy seats.
  • Mild corrosion: 304 + PTFE seals suffice.
• Pressure Rating:
  High-pressure systems (≥PN16) require thickened bodies and double piston-effect seats.
• Temperature Requirements:
  Cryogenic conditions demand extended stems and low-temperature grease (e.g., Mobiltemp SHC 100).

Stainless steel three-piece butt-weld ball valves, with their corrosion resistance, high strength, and ease of maintenance, are the top choice for high-pressure piping systems in chemical, energy, and environmental sectors, offering unmatched long-term stability compared to conventional valves.

Applications of Stainless Steel Three-Piece Welded Ball Valves

Stainless steel three-piece welded ball valves are widely used in industries requiring high hygiene, corrosion resistance, and reliable flow control. Their modular three-piece design (body, left/right flanges) allows easy disassembly for cleaning, maintenance, and replacement of internal components without removing the entire valve from the pipeline. Below are their key applications:

1. Food & Beverage Industry

• Sanitary Processing: Used in pipelines for milk, beer, juice, soft drinks, and edible oils.
• Advantages:
  • Hygienic Design: Crevice-free construction prevents bacterial growth.
  • Material Compatibility: 304/316L stainless steel resists corrosion from acidic or alkaline media.
  • Easy Cleaning: Full-port design minimizes fluid residue; welded ends ensure no leaks during CIP/SIP (Clean-in-Place/Sterilize-in-Place).

2. Pharmaceutical & Biotechnology

• Critical Fluid Control: Used in drug manufacturing, sterile water systems, and bioreactor pipelines.
• Advantages:
  • Compliance: Meets standards like 3A, FDA, and cGMP for sterile processing.
  • Leak-Proof: Welded connections eliminate threaded joints, reducing contamination risks.
  • Precision: Ball valves provide bubble-tight shutoff for sensitive media.

3. Chemical & Petrochemical

• Corrosive Media Handling: Suitable for acids, alkalis, solvents, and hydrocarbons.
• Advantages:
  • Material Durability: 316L stainless steel withstands chlorides and high temperatures.
  • High-Pressure Resistance: Welded construction ensures integrity under pressures up to PN64 (64 bar).
  • Fire-Safe Design: Some models comply with API 607/6FA for fire-resistant applications.

4. Oil & Gas

• Upstream/Midstream Operations: Used in wellheads, separators, and pipeline transfer systems.
• Advantages:
  • Robust Construction: Withstands harsh environments (e.g., H₂S, CO₂ corrosion).
  • Full Bore: Minimizes pressure drop in long-distance pipelines.
  • Anti-Static Design: Prevents sparking during operation.

5. Water Treatment & Desalination

• Seawater/Brackish Water Systems: Resists corrosion from chlorides and salts.
• Advantages:
  • Low Maintenance: Welded body prevents leakage in submerged or buried installations.
  • Long Service Life: Stainless steel construction extends operational lifespan.

6. HVAC & Building Services

• Chilled Water/Hot Water Systems: Regulates flow in heating/cooling loops.
• Advantages:
  • Compact Design: Saves space in tight installations.
  • Quiet Operation: Ball valves reduce water hammer compared to gate valves.

7. Marine & Offshore

• Shipboard Piping: Used in ballast water, fuel oil, and seawater cooling systems.
• Advantages:
  • Vibration Resistance: Welded connections withstand ship motion.
  • Saltwater Resistance: 316L stainless steel prevents pitting corrosion.

Key Technical Features Supporting Applications

• Material: 304/316L stainless steel for corrosion resistance.
• Pressure Rating: Up to PN64 (64 bar) / ANSI Class 600.
• Temperature Range: -20°C to 180°C (higher with special seals).
• End Connections: Butt-welded (BW), clamped, or threaded (NPT/BSP).
• Certifications: 3A, FDA, CE, PED, ATEX (for explosive atmospheres).

Conclusion

Stainless steel three-piece welded ball valves are versatile, hygienic, and durable, making them ideal for industries where cleanliness, corrosion resistance, and reliability are critical. Their modular design further enhances their applicability in systems requiring frequent maintenance or sterilization.

Quality Assurance

Jarzoo ensures the highest quality standards:

100% visual & pressure testing before shipment

No burrs, perfect threads, and smooth casting surfaces

In-house chemical analysis of molten material before casting

Traceability: All test samples retained for 2 years

About Jarzoo

Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.

We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.

Packaging & Delivery

Packaging: Secure carton or pallet packing

Delivery Time: Samples within 25 days; bulk order within 60 days

Shipping: Global delivery supported

Payment Terms:

Orders ≤ $1000: 100% advance

Orders ≥ $1000: 30% deposit, 70% before shipment

FAQ

Q: Do you offer samples?
A: Yes, sample is available with MOQ of 1 pc.

Q: Can I customize the logo or size?
A: Absolutely. We support custom logos, graphics, and non-standard sizes with a minimum order of 100 pieces.

Q: What materials can you provide?
A: We offer a wide range: SS304, SS316, WCB, alloy steel, carbon steel, copper alloys, and more.

Q: Can you trace materials and production batches?
A: Yes. All testing data and samples are archived for traceability.
