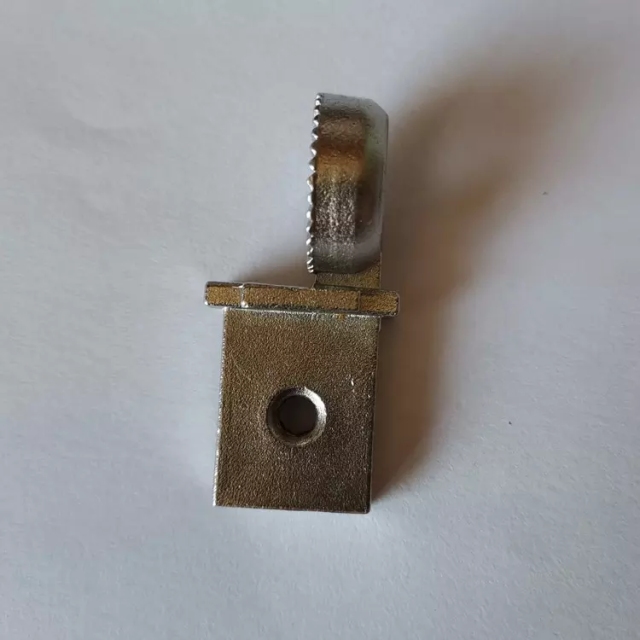

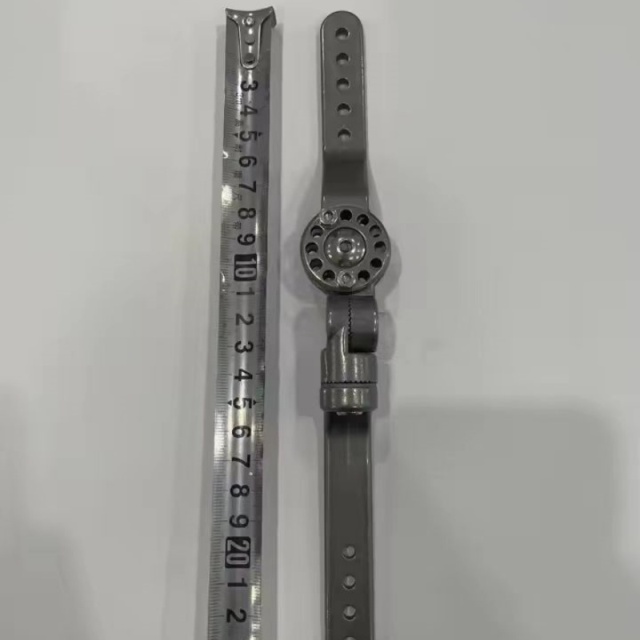

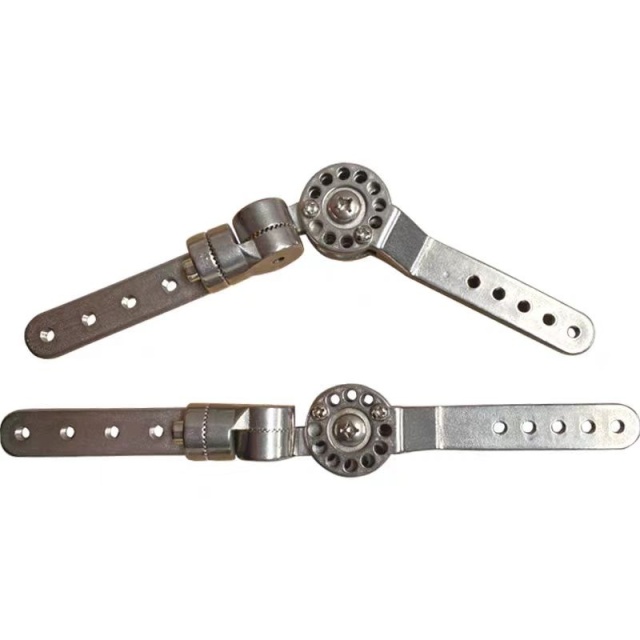

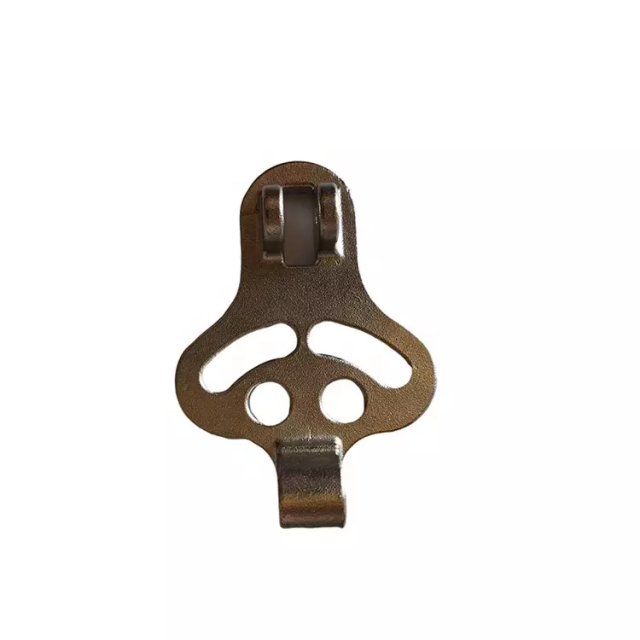

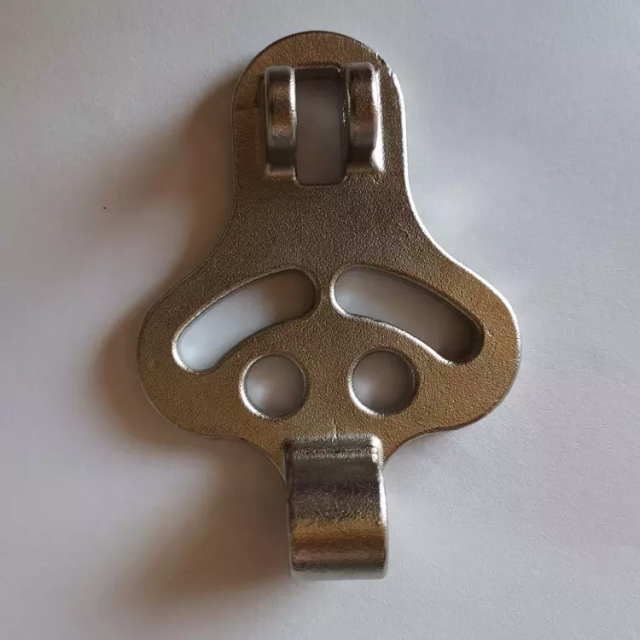

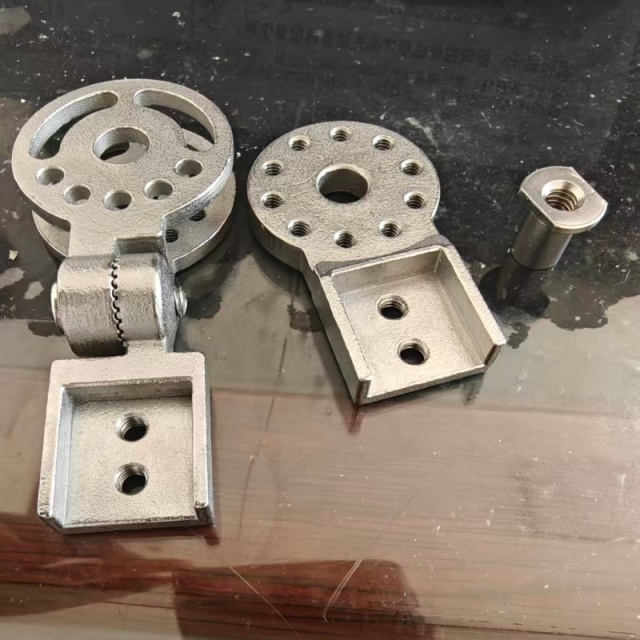

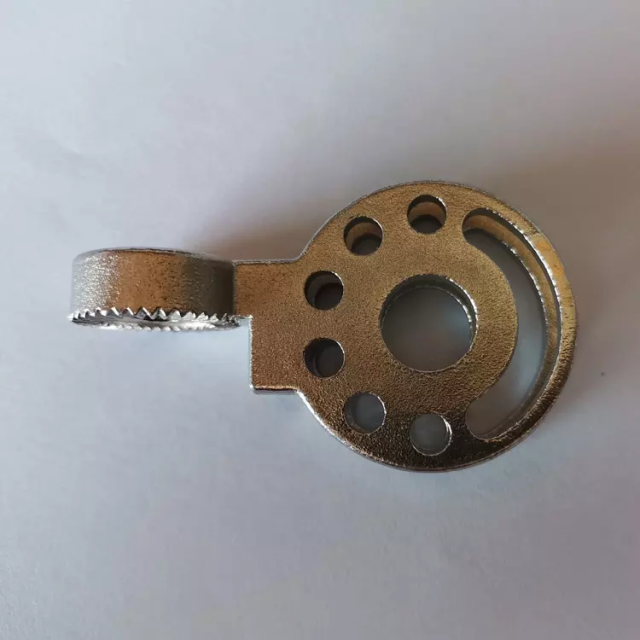

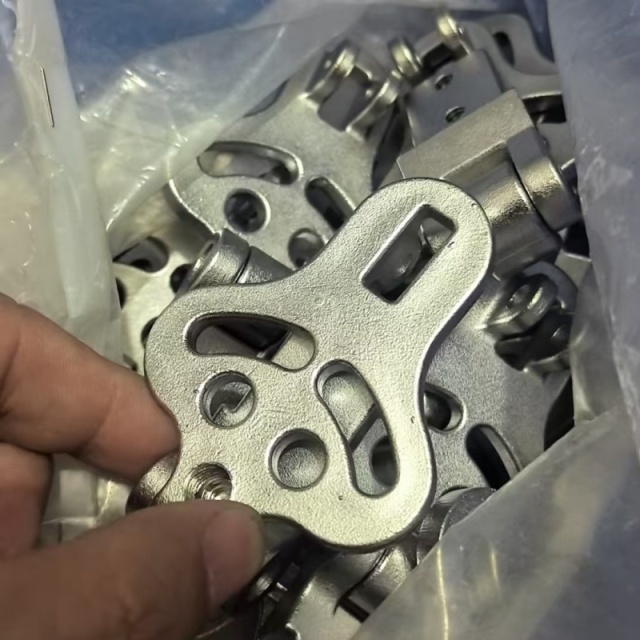

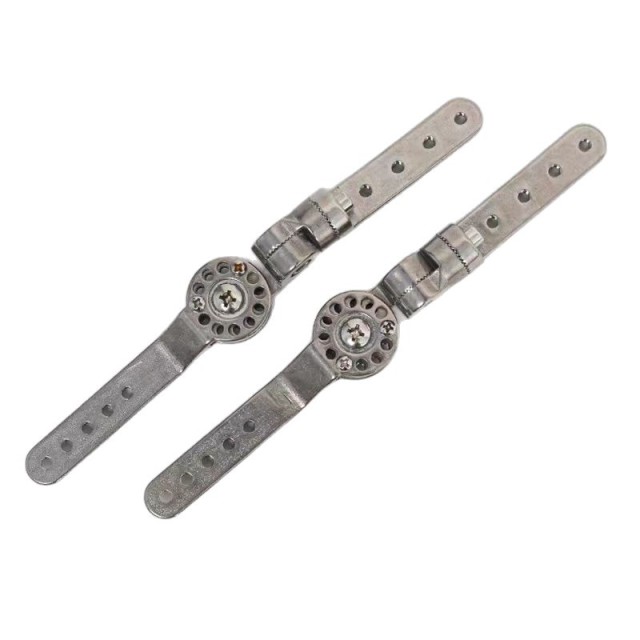

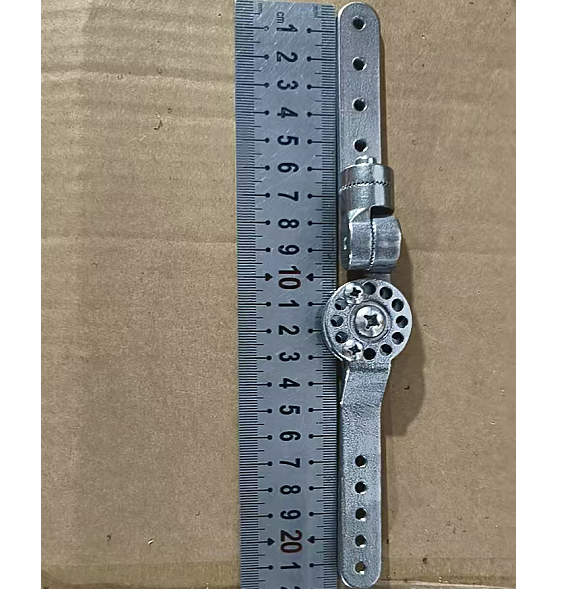

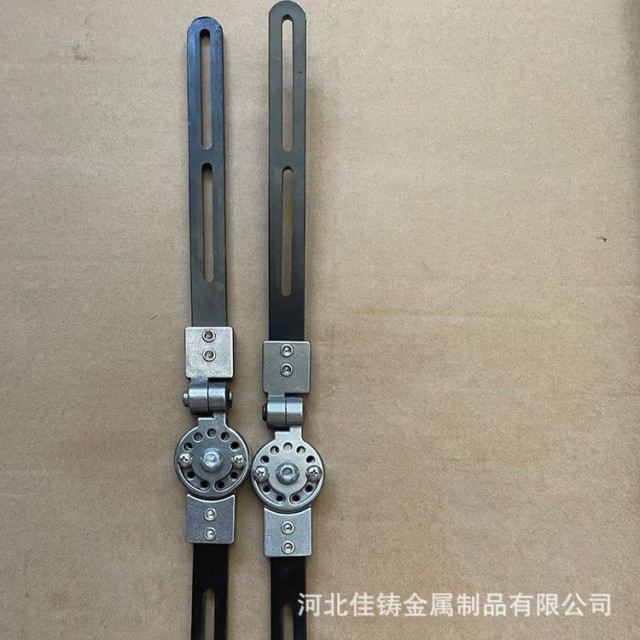

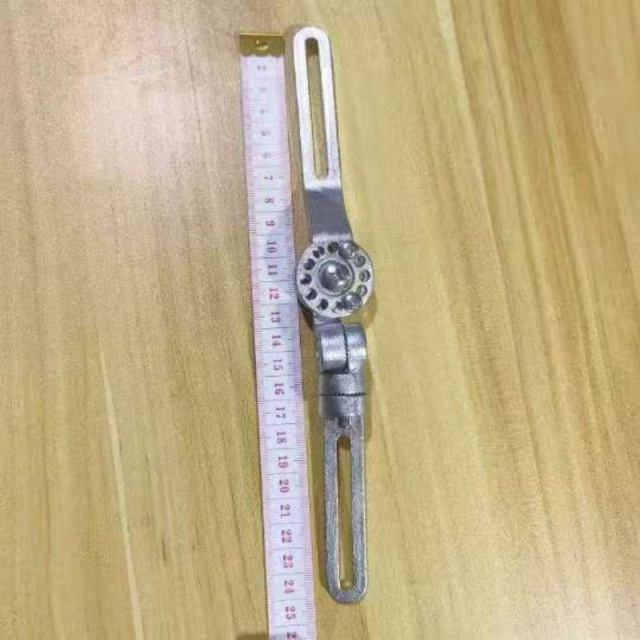

Custom-made Stainless Steel 304 316 Adjustable Metal Locking Knee Joints Medical Hinge Medical Orthopedic Brace with an Adjustable Angle

Custom-Made Stainless Steel 304/316 Adjustable Metal Locking Knee Joints for Medical Orthopedic Braces: A Technical Overview

1. Material Specifications

• Stainless Steel 304 (CF8/1.4308):
  • A medical-grade alloy with excellent corrosion resistance, suitable for non-critical saline environments.
  • Cost-effective and widely used in general orthopedic devices.
• Stainless Steel 316 (CF8M/1.4408/316L CF3M 1.4404):
  • Contains molybdenum, enhancing resistance to pitting and crevice corrosion in chloride-rich environments (e.g., seawater or bodily fluids).
  • Preferred for long-term implants or high-moisture applications due to superior durability.

2. Key Features

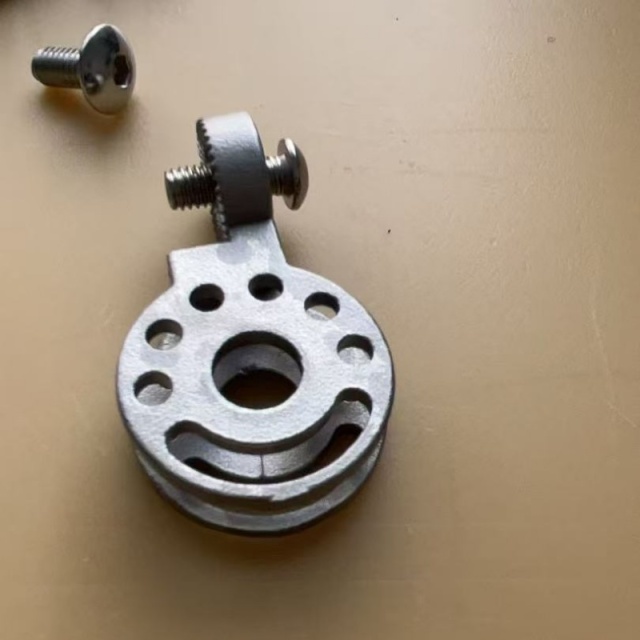

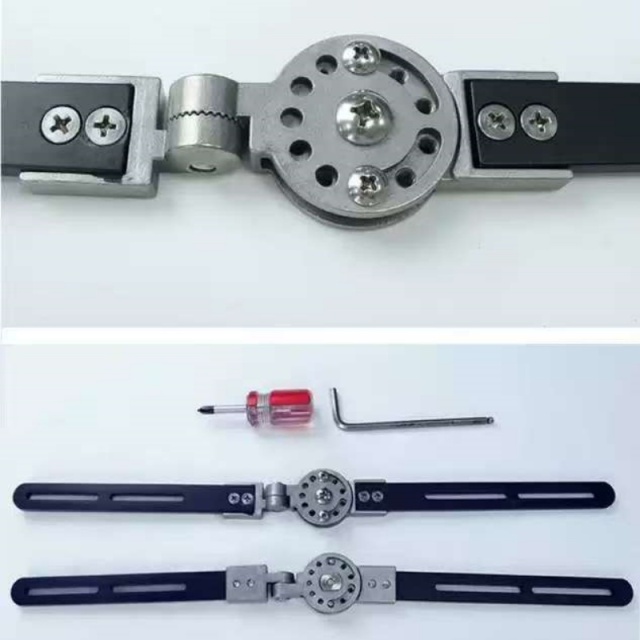

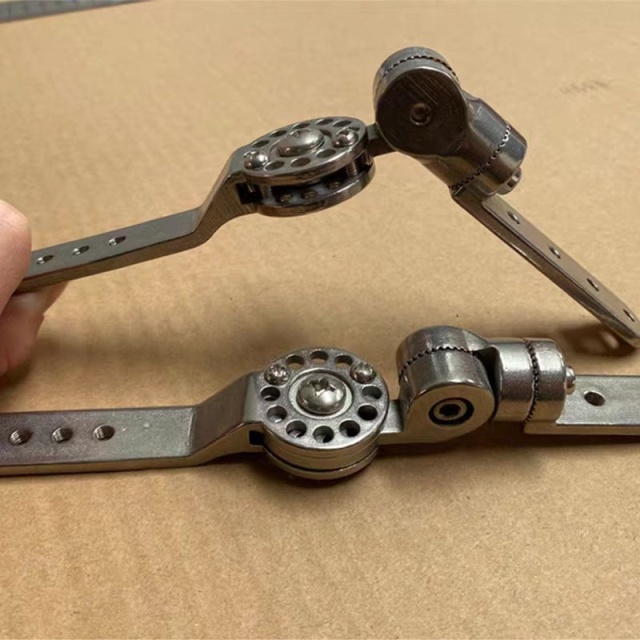

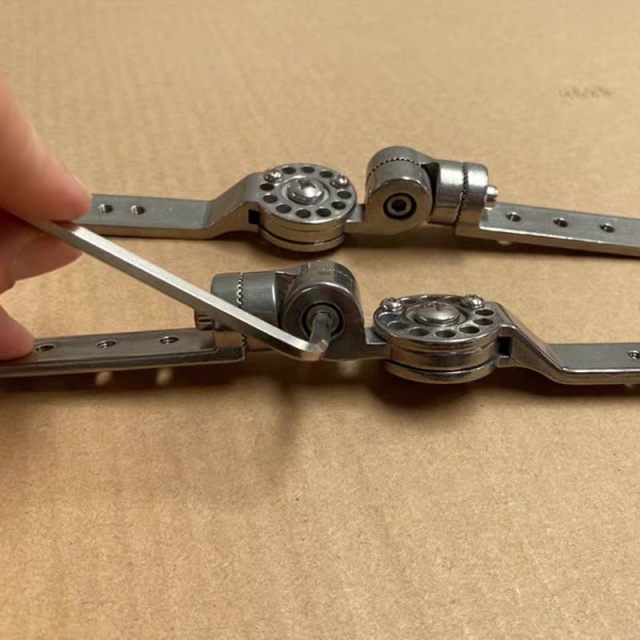

• Adjustable Angle Locking Mechanism:
  • Enables precise control of knee flexion/extension angles (typically 0°–120°) via bilateral dials or ratchet systems.
  • One-hand locking tabs allow for quick adjustments during rehabilitation without removing the brace.
• Modular Design:
  • Interchangeable components (e.g., ratchet locks, ring locks, or lever locks) accommodate varying patient needs, such as partial weight-bearing or full motion restriction.
  • Posterior offset options improve anatomical fit for comfort and stability.
• Corrosion Resistance:
  • Electropolished surfaces reduce biofouling and bacterial adhesion, critical for infection control in medical settings.
  • Passivation treatments create a protective oxide layer to prevent rust in chlorinated environments.
• Load-Bearing Capacity:
  • Heavy-duty construction supports body weight during ambulation, with some models rated for up to 300 lbs (136 kg) of dynamic load.

3. Manufacturing Process

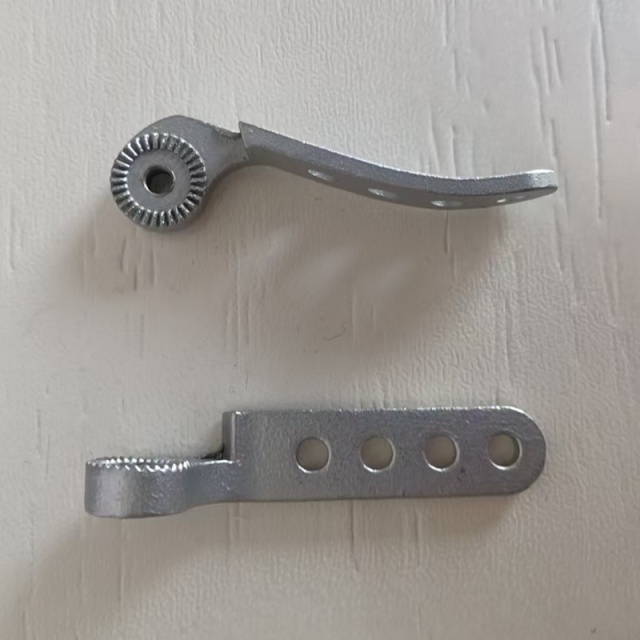

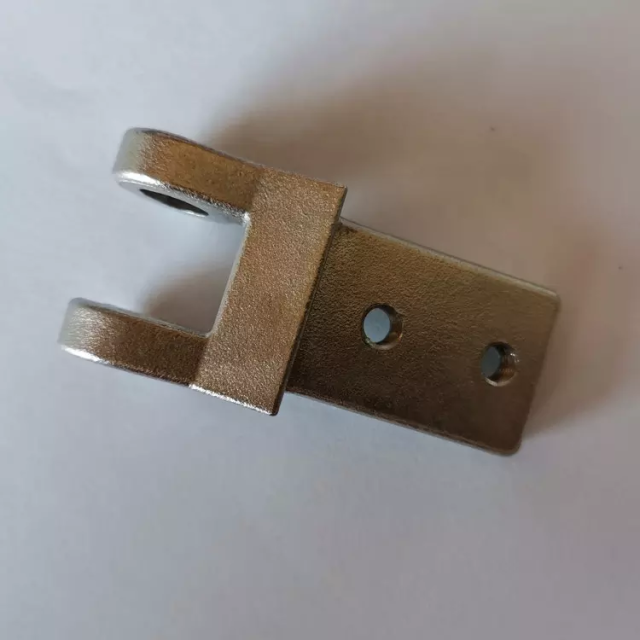

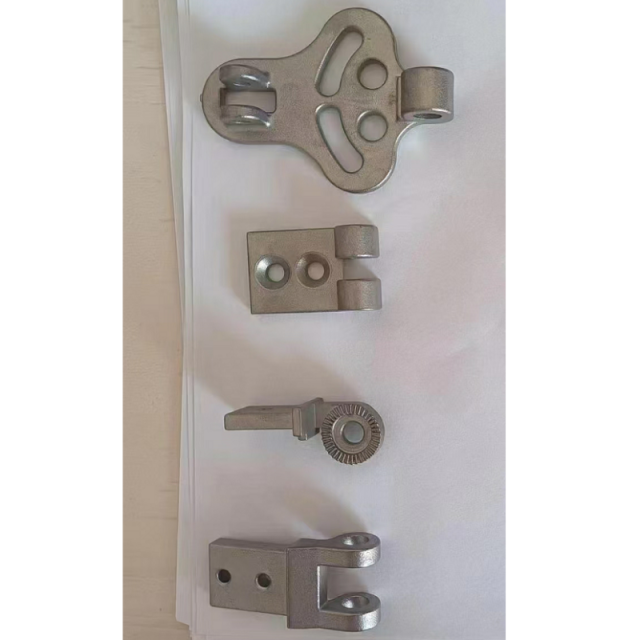

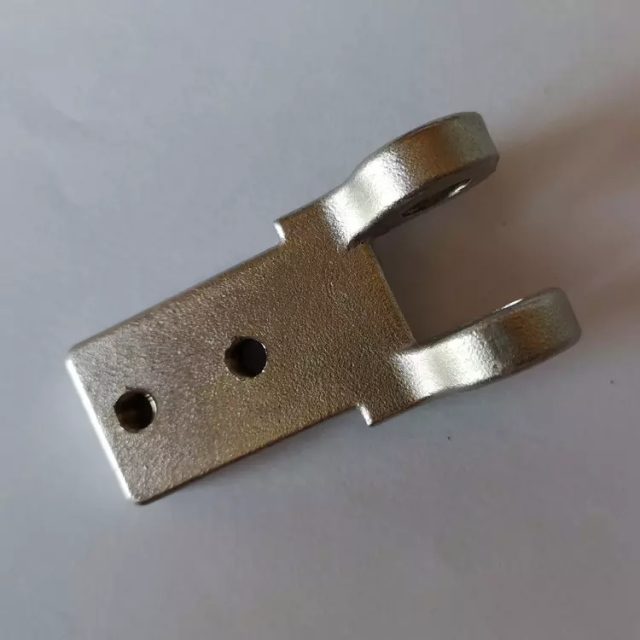

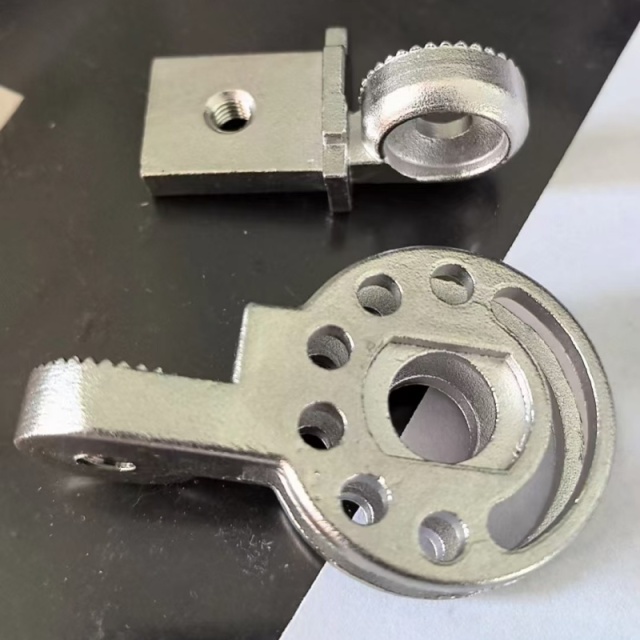

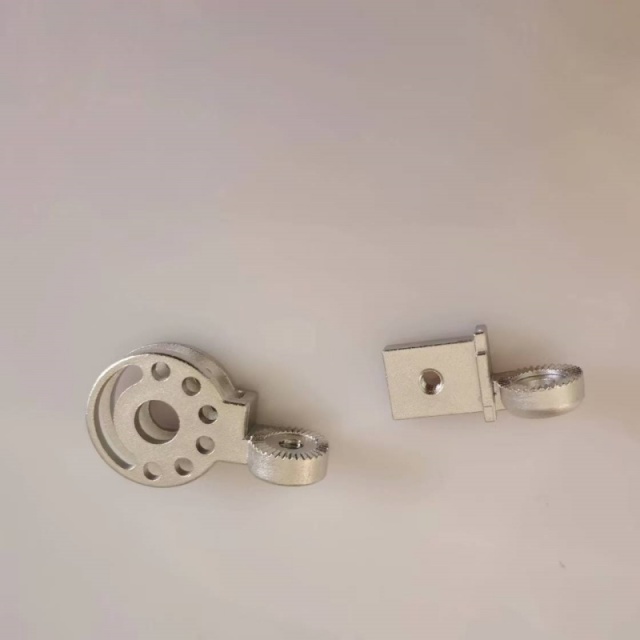

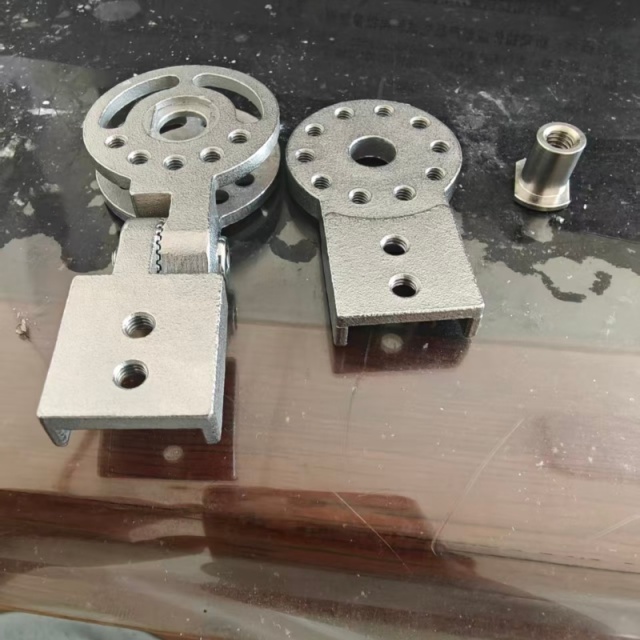

• Silicon Sol Precision Casting:
  • Produces intricate geometries (e.g., hinge joints, locking mechanisms) with minimal post-machining, ensuring tight tolerances (±0.05 mm).
• CNC Machining:
  • Used for critical components like adjustment dials or locking pins, guaranteeing smooth operation and longevity.
• Surface Treatment:
  • Electropolishing enhances corrosion resistance and provides a hygienic, easy-to-clean finish.
  • Anodizing (for aluminum components) or PVD coating (for decorative/functional layers) may be added for additional protection.

4. Applications

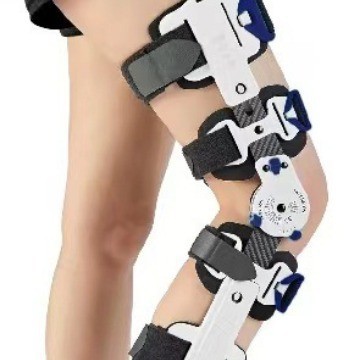

• Post-Operative Rehabilitation:
  • Stabilizes the knee after ACL/PCL reconstruction, meniscus repair, or total knee arthroplasty (TKA).
  • Controls range of motion to prevent hyperextension or excessive flexion during healing.
• Chronic Condition Management:
  • Supports patients with osteoarthritis, rheumatoid arthritis, or degenerative joint diseases by redistributing weight and reducing pain.
• Prosthetic Limbs:
  • Integrates with below-knee (BK) or above-knee (AK) prostheses to mimic natural knee movement and improve gait efficiency.
• Orthopedic Furniture:
  • Adjustable-angle hinges are used in therapeutic chairs or beds to position patients comfortably during recovery.

5. Customization Options

• Patient-Specific Adjustments:
  • Hinges can be tailored to individual anatomical requirements, such as limb length discrepancy or specific motion restrictions.
• Material Upgrades:
  • Carbon steel components may be offered for cost-sensitive applications, though stainless steel is preferred for its biocompatibility.
• Aesthetic Finishes:
  • Polished or brushed surfaces match medical device aesthetics, while colored coatings (e.g., black PVD) may be available for patient preference.

6. Industry Standards & Compliance

• ISO 13485: Ensures quality management systems for medical device manufacturing.
• ASTM F136/F138: Specifies mechanical properties and corrosion resistance for implantable stainless steel.
• FDA/CE Certification: Mandatory for market approval in the U.S. and Europe, respectively, verifying safety and efficacy.

7. Advantages

• Durability: Withstands repeated use and sterilization cycles without degradation.
• Precision: Modular design allows for fine-tuned adjustments, improving patient compliance and outcomes.
• Hygiene: Non-porous stainless steel surfaces resist bacterial growth, reducing infection risks.

8. Limitations

• Cost: 316 stainless steel hinges are more expensive than 304 due to molybdenum content.
• Weight: Heavy-duty designs may add bulk, potentially affecting comfort for some patients.

Conclusion

Custom-made stainless steel 304/316 adjustable metal locking knee joints are critical components in medical orthopedic braces, offering precision, durability, and patient-specific customization. Their corrosion-resistant properties and modular design make them ideal for post-operative rehabilitation, chronic condition management, and prosthetic integration. By adhering to international standards (e.g., ISO, ASTM, FDA/CE), these hinges ensure safety and efficacy in clinical settings, enhancing both patient recovery and quality of life.

For inquiries about custom designs, material selection, or bulk orders, contact [Your Company Name]—a leading manufacturer of medical-grade orthopedic hinges.
