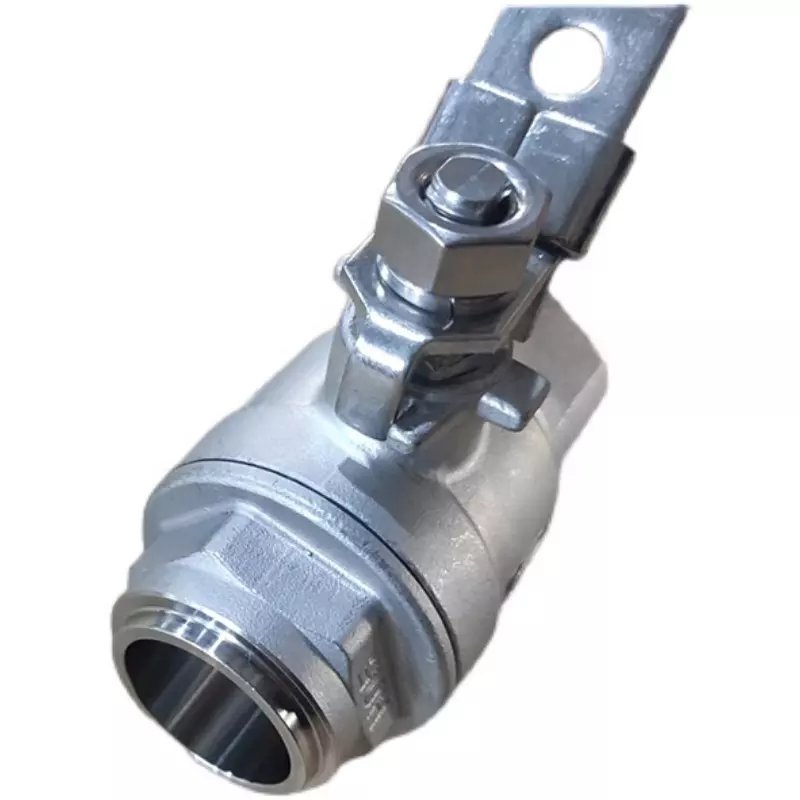

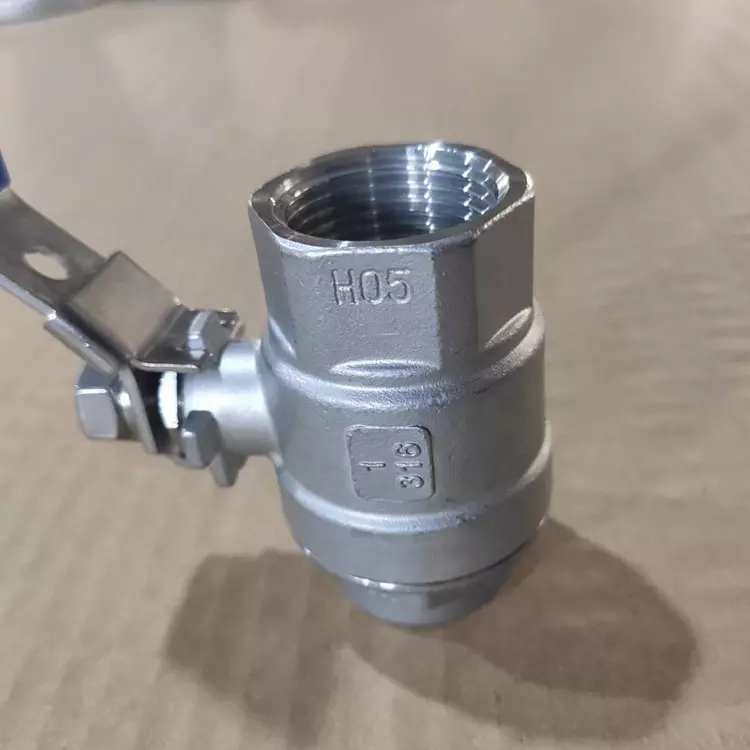

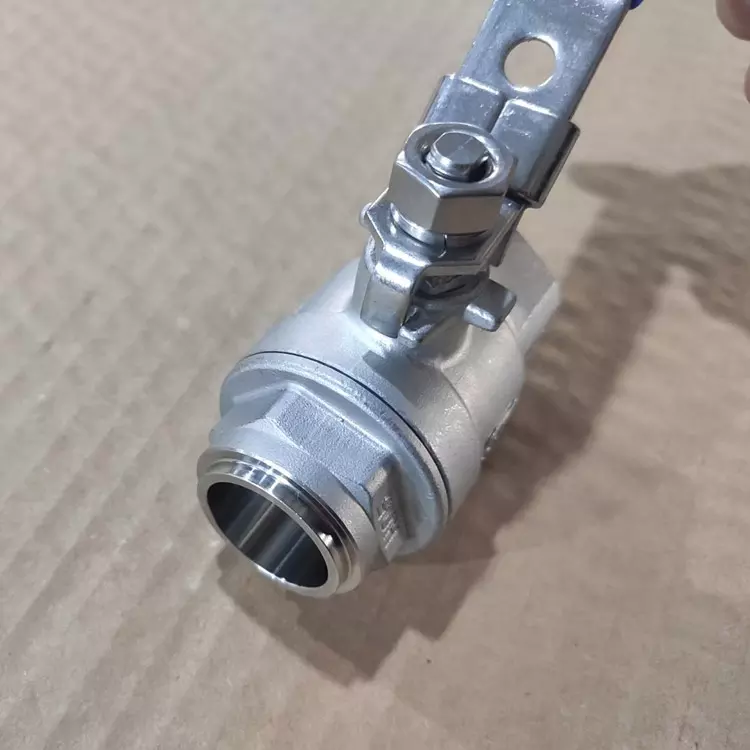

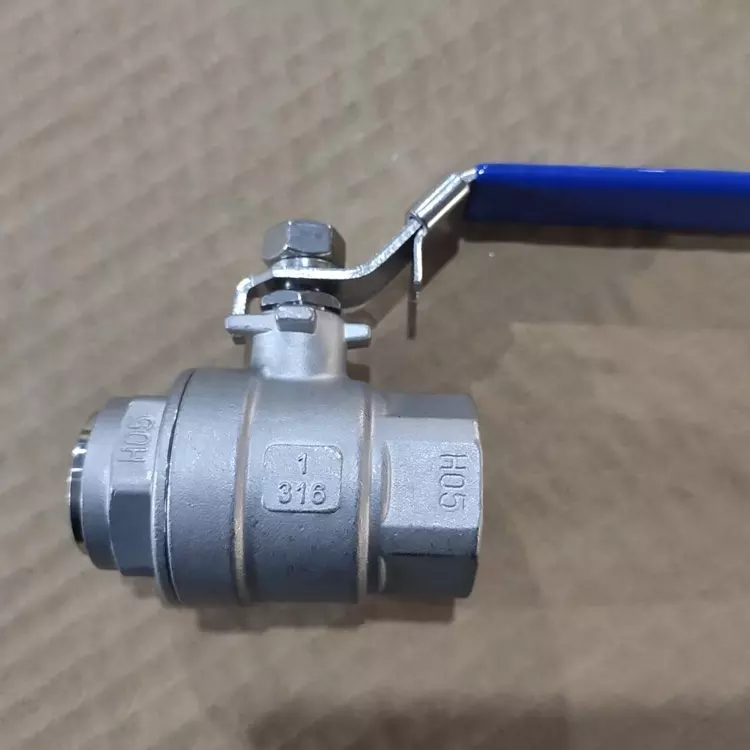

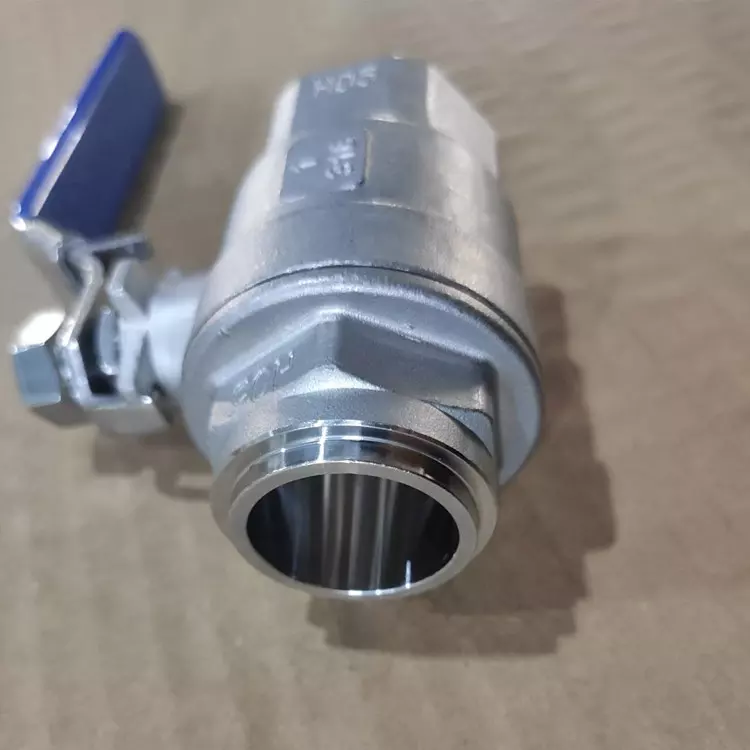

Stainless Steel Two-Piece Welded Ball Valve: English Introduction
1. Overview
The stainless steel two-piece welded ball valve is a high-performance shut-off valve designed for industrial pipelines. It features a two-piece body structure (valve body + end cap), typically made of 304/316 stainless steel, ensuring corrosion resistance and durability. This valve is widely used in systems requiring reliable on/off control of liquids, gases, and vapors, including corrosive media.
2. Key Features
- Material:
- Body & Ball: ASTM A351 GR CF8M (SS316) or CF8 (SS304) for superior corrosion resistance.
- Stem: ASTM A276 T-316 stainless steel, blow-out proof design.
- Design:
- Full Port (Full Bore): The valve bore matches the pipe diameter, minimizing pressure drop and ensuring unrestricted flow.
- Welded Connection: End caps are welded to the body, providing a leak-proof seal suitable for high-pressure applications.
- PTFE/RTFE Seats: Resistant to chemicals and high temperatures (up to 300°C with specialized seals).
- Pressure & Temperature Ratings:
- Pressure: Up to 1000 PSI (CWP) or 150# WSP, depending on the model.
- Temperature: -29°C to 180°C (standard seals) or -29°C to 300°C (high-temp seals).
3. Technical Specifications
- End Connections:
- Welded: Suitable for permanent installations in high-pressure systems.
- Optional: Threaded (NPT/BSP) or flanged ends for flexibility.
- Flow Direction: Bidirectional, allowing media to flow in both directions.
- Actuation: Manual (lever/gear) or automated (pneumatic/electric).
- Standards:
- Design: MSS SP-110, API 608.
- Certifications: ISO 9001:2015, CE, UL/FM (for fire protection).
4. Advantages
- Leak-Proof: Welded construction eliminates potential leakage points.
- High Flow Capacity: Full port design reduces turbulence and pressure loss.
- Corrosion Resistance: SS316/304 body withstands harsh environments (e.g., marine, chemical).
- Low Maintenance: Fewer parts simplify inspection and repair.
- Versatility: Suitable for water, steam, oil, gas, and corrosive chemicals.
5. Applications
- Industries:
- Oil & Gas: Pipeline isolation, refinery processes.
- Chemical/Petrochemical: Handling acids, solvents, and corrosive fluids.
- Water Treatment: Potable water, wastewater, and desalination systems.
- HVAC: Chilled water, steam, and glycol systems.
- Fire Protection: Dry/wet pipe systems (UL/FM listed models).
- Specialized Use:
- High-Pressure Systems: Offshore platforms, hydraulic circuits.
- High-Temperature Applications: Steam lines, thermal oil systems.
6. Installation & Maintenance
- Installation:
- Ensure proper alignment and welding procedures.
- Avoid over-tightening threaded connections (if applicable).
- Maintenance:
- Periodic inspection of seats and stems.
- Replace seals if worn or damaged.
- Lubricate stems for smooth operation (if required).
7. Model Example
- Series SC201 (316 Stainless Steel):
- Pressure Rating: 1000 PSI CWP, 150# WSP.
- Features: Pressure-balancing hole, locking handle, vacuum service rated to 29” Hg.
- Certifications: Lead-free, ISO 9001:2015.
8. Industry Recognition
- Adopted Globally: Used in EU, North America, and Asia for critical infrastructure.
- Compliance: Meets international standards (API, MSS, ISO) for reliability.
Example Use Case:
A 316 stainless steel two-piece welded ball valve (Series SC201) was installed in a Saudi Arabian offshore oil platform, withstanding 800 PSI and 150°C seawater conditions for 10+ years without failure.
This valve combines durability, efficiency, and safety, making it ideal for demanding industrial environments.
Key Features & Benefits
Material Options:
Made from food-grade 304 stainless steel beer tap or high-grade 316 stainless steel faucet for maximum safety and hygiene.
Provides excellent corrosion resistance and oxidation resistance, ensuring long-lasting performance in draft and brewing environments.
Manufactured according to international casting material standards (CF8, CF8M, 1.4308, 1.4408) to guarantee consistent quality and reliability.
Ball valve beer spigot design allows smooth operation, leak prevention, and precise flow control.
Available in multiple sizes (3/8", 1/2", 3/4", 1") to fit diverse beer brewing equipment and beverage dispensing systems.
