Basic Information
|
Product Name
|
Stainless Steel Hose Fittings/Adapters/Parts
|
|
|
Brand
|
Jarzoo (providing OEM/ODM/OBM)
|
|
Origin
|
China
|
|
Material
|
Stainless Steel 304/316/316L
|
|
Shape
|

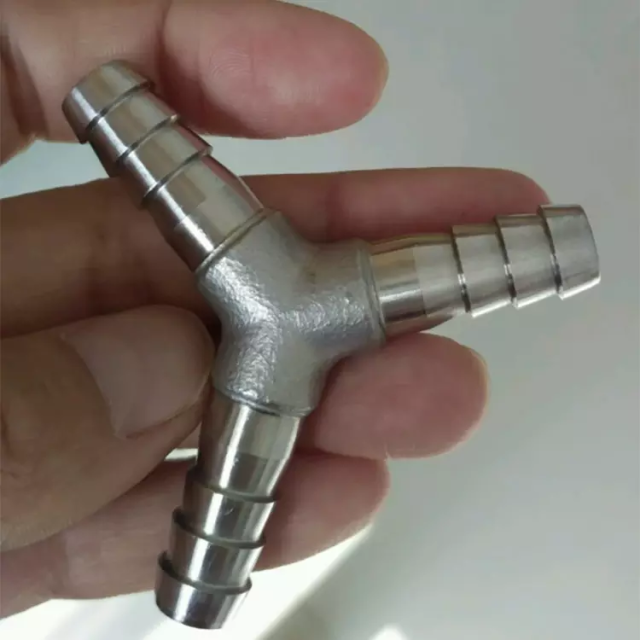

Equal diameter/T-shaped/Y-shaped/Customized
|
|
Head Type
|
Hexagonal/Custom
|
|
Connection Type
|
Hose Connection/External Thread/Internal Thread
|
|
Technology
|
Investment casting + CNC machining + Surface treatment
|
|
Surface Treatment
|
Smooth/Mirror Polishing/Passivation
|
|
Standard
|
International Standards&As per customer's requirements
|
|
OEM and ODM Services
|
Available
|
|
Application
|
Water, Oil, Natural Gas, Construction, Machinery, Shipbuilding, Power Generation
|
Core Features of Stainless Steel Barb Fittings
1. Secure Barb Design
Multi-tiered tapered barbs provide a tight, clamp-free seal on various soft hoses. Resists vibration and pressure changes to prevent disconnection.
2. Corrosion-Resistant Material
Constructed from 304/316/316L stainless steel for superior durability in harsh environments including chemical and marine applications.
3. Smooth Flow Passage
Full-bore design minimizes pressure loss and improves system efficiency with unobstructed fluid transfer.
4. Tool-Free Installation
Allows quick and easy hose attachment without tools, reducing assembly time and maintenance costs.
5. Wide Compatibility
Supports multiple connection types (NPT, BSP, tri-clamp, etc.) and is suited for use in
water, air, food, chemical, and industrial systems.
Advantages
- Cost-Effective: Simplifies inventory with single-part solutions
- Extended Service Life: Stainless steel and high-grade seals ensure durability in harsh conditions
- Enhanced Safety: Features fire-resistant (ATEX-compliant) and leak-proof operation
- Eco-Friendly: Reusable and recyclable to support sustainability
- Efficient Flow: Reduces pressure drop by up to 98% for compact system design
- Quick Installation: Tool-free assembly cuts installation time by 70%
- Broad Compatibility: Suitable for both water-glycol and dielectric fluids
Technical Specifications
When selecting stainless steel barb fittings—also called hose barb connectors or pagoda-style fittings—it is essential to review the technical specifications to ensure compatibility with your fluid transfer system.
|
Category
|
Specification
|
|
Material
|
Body: 304 / 316L stainless steel (food-grade versions available)
Seals: EPDM (standard), Viton® (for high-temp & chemical resistance), Silicone (for medical applications)
|
|
Size Range
|
Standard sizes from 1/8" to 2"
Custom dimensions available upon request
|
|
Pressure Rating
|
Working pressure up to 10 bar (150 psi)
Higher pressure models available
|
|
Temperature Range
|
-20°C to 120°C (-4°F to 248°F)
Seal material determines operating limits
|
|
Certifications
|
PED 2014/68/EU, FDA, 3A Sanitary Standards
ATEX / IECEx certified for use in explosive environments
|
Applications of Stainless Steel Barb Fittings and Valves
- Industrial Hydraulics & Pneumatics- Provides reliable, vibration-resistant connections for manufacturing and pneumatic equipment.
- Thermal Management & Cooling Systems- Ensures efficient leak-free cooling in data centers, EV batteries, and energy storage units.
- Chemical & Petrochemical Processing- Resists corrosive fluids in harsh environments with long-lasting 316L stainless steel.
- Food & Beverage Production- Delivers hygienic, sanitary-compliant fluid transfer for food and beverage processing.
- Marine & Offshore Engineering- Withstands saltwater corrosion in marine and offshore applications for durable performance.
Stainless Steel Tower-Type Valves Overview
Stainless steel tower-type valves - also known as pagoda-style valves or barb-head valves - are specialized devices for secure and reliable fluid connections.
They combine a valve mechanism with a tapered barb fitting, making them suitable for flow regulation and quick hose attachment.
Key Features
Hybrid design
Durable stainless steel body.
Unique barb head ensures a strong hose grip.
Enhanced service life and performance.
Types of valves available
Ball valves: Fast on/off control with minimal pressure loss.
Gate valves: Smooth flow handling in low-pressure systems.
Check valves: Prevent backflow and protect system integrity.
Needle valves: Precise adjustments for sensitive applications.
Seal material options
EPDM: Best for water systems.
Viton®: Resistant to high temperatures and chemicals.
Silicone: Food-grade applications and safe contact.
Certifications
PED, FDA, 3A standards for quality and hygiene.
ATEX/IECEx for explosive or hazardous atmospheres.
Applications of Tower-Type Valves
Thanks to their corrosion resistance and flexible configurations, stainless steel tower-type valves are widely applied in:
- Industrial hydraulics
- Chemical processing
- Food and beverage systems
- Other demanding fluid control applications
Selection Guide
When selecting stainless steel tower-type valves (also known as pagoda-style valves) or stainless steel barb-head valves, there are several key factors to keep in mind.
1. Always confirm fluid compatibility, especially that the seals can withstand chemical exposure without degrading.2. Ensure that both pressure and temperature ratings align with your system’s requirements to prevent operational failures.3. Verify that products meet necessary certifications, such as ASME B16.34 or ISO 5208 for valves, and ASME B31.3 or ISO 7241-1 for barb fittings.
Whether you're using corrosion-resistant valves or barbed fittings, both offer durable engineering, strong chemical resistance, and user-friendly installation. These features make them essential components in fluid control systems across various sectors, particularly in industrial hydraulics and temperature-sensitive applications. Their adaptability and consistent performance support reliability in demanding environments.
Customization Options
For projects requiring unique branding or specifications, these stainless steel hose barb fittings can be customized to meet specific requirements.
|
Customization Type
|
Minimum Order Quantity
|
|
Logo Printing
|
100 pieces
|
|
Custom Packaging
|
100 pieces
|
|
Graphic Customization
|
100 pieces
|
|
Product Customization
|
100 pieces
|
Certifications & Quality Assurance
Manufactured under stringent ISO-certified systems (e.g., ISO 9001)
SGS-verified quality checks ensure material and performance reliability
Optionally produced under GRS-certified processes (Global Recycled Standard), supporting eco-friendly and sustainable production
Packaging & Shipping
Products are carefully protected with spark-proof film or kraft paper, then boxed or palletized. Reinforced corners and custom packaging help withstand long-distance sea or truck transport, ensuring safe arrival at customer destinations.
|
Packaging Details
|
Carton/Palette/Customized
|
|
Individual Packaging Size
|
Example: 8X10X15 cm (subject to change)
|
|
Single Item Gross Weight
|
Example: 0.50 KG (subject to change)
|
|
Delivery Time
|
7-30 days after payment
|
|
Shipping Method
|
Sea/Air/Courier
|
Why Choose Us
For custom-designed solutions, expert technical guidance, and reliable product offerings, turn to Jarzoo—your trusted partner alongside leading manufacturers in the field.
Get a Free Quotation Today
Share your drawings or samples with us, and our engineering team will offer technical consultation, 3D modeling, and a competitive quote within 24 hours.
Recommend Products
FAQs
Q1: What sizes are available for these hose barb fittings?
We offer a wide range of custom fittings that are designed to be compatible with both SS 304 and SS 316 material options, ensuring that you have the flexibility to choose the right solution for your specific needs.
Q2: Can these fittings withstand corrosive environments?
Yes. Made from high-grade stainless steel, they resist corrosion, making them ideal for harsh chemical or outdoor exposure.
Q3: Are installation tools required?
Most fittings can be tightened by hand using the hex shape. For high-pressure systems, a wrench is recommended to ensure secure fittings.
