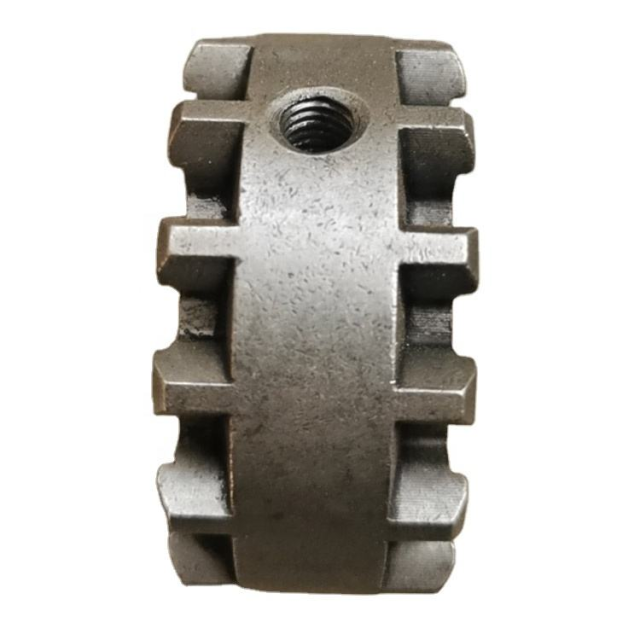

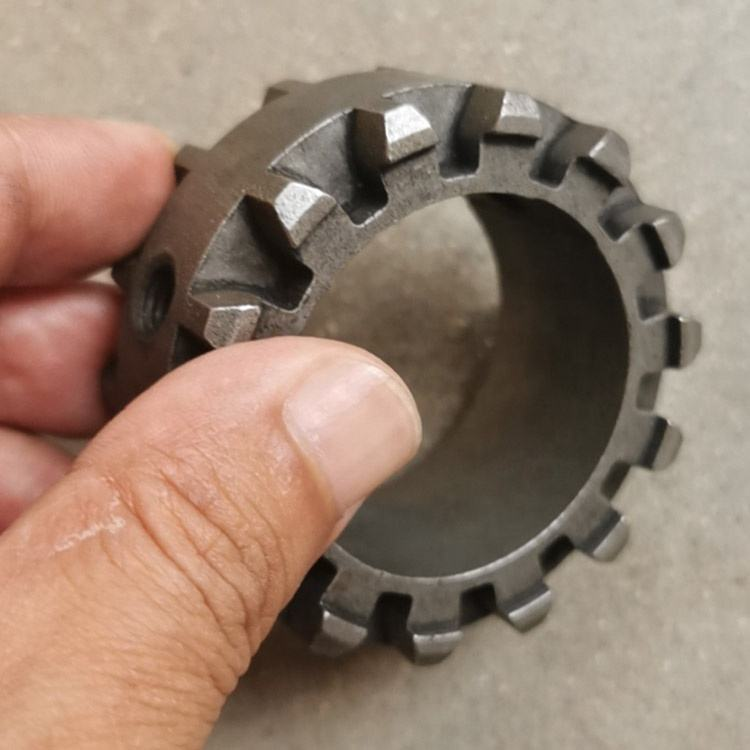

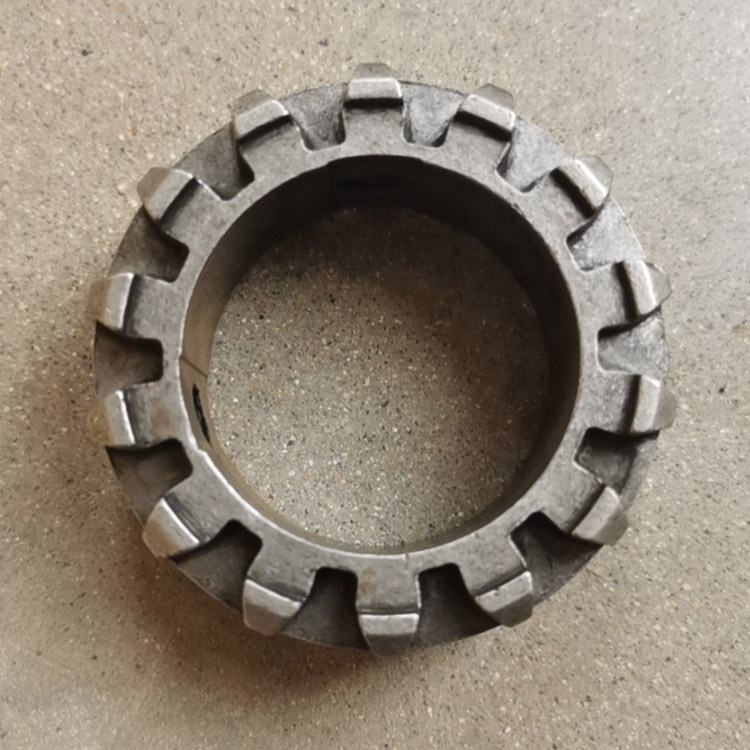

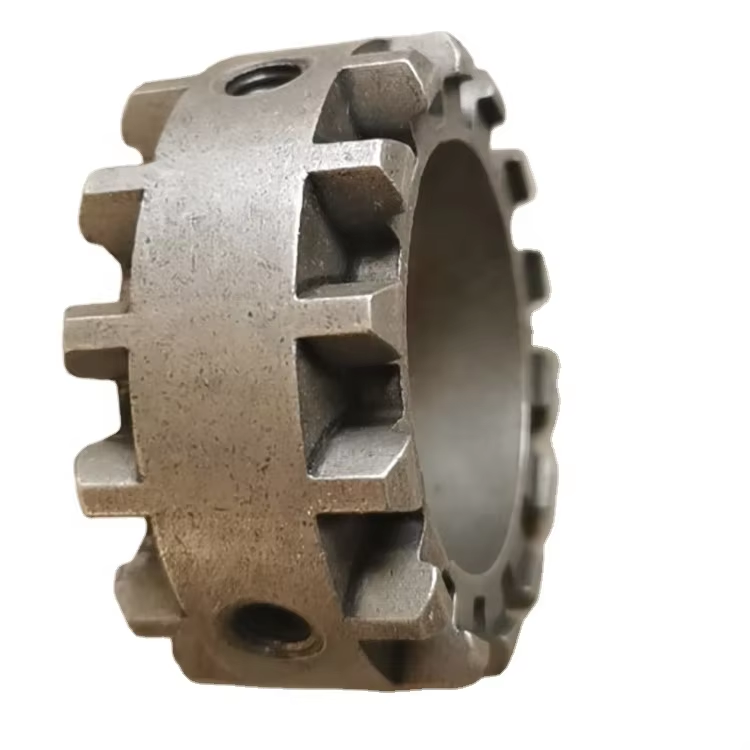

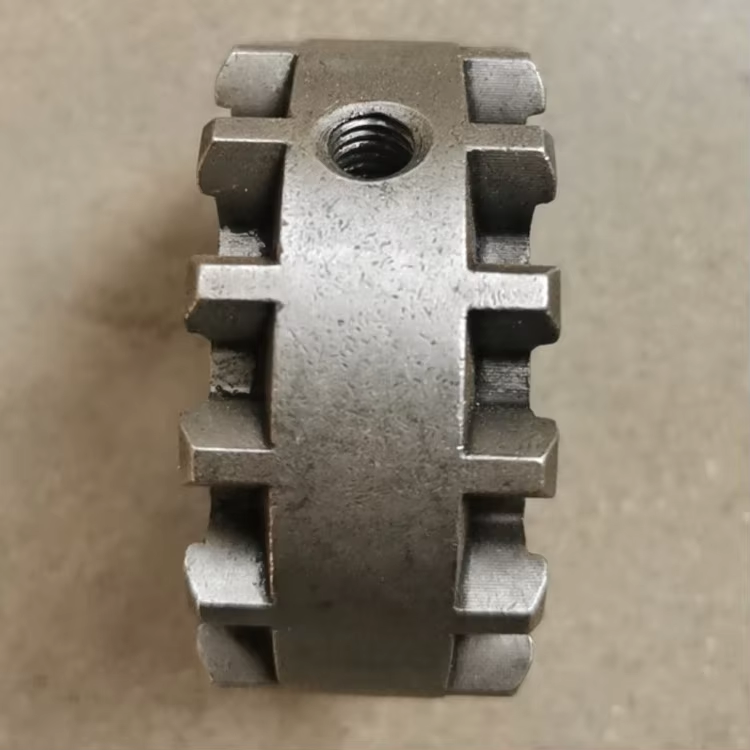

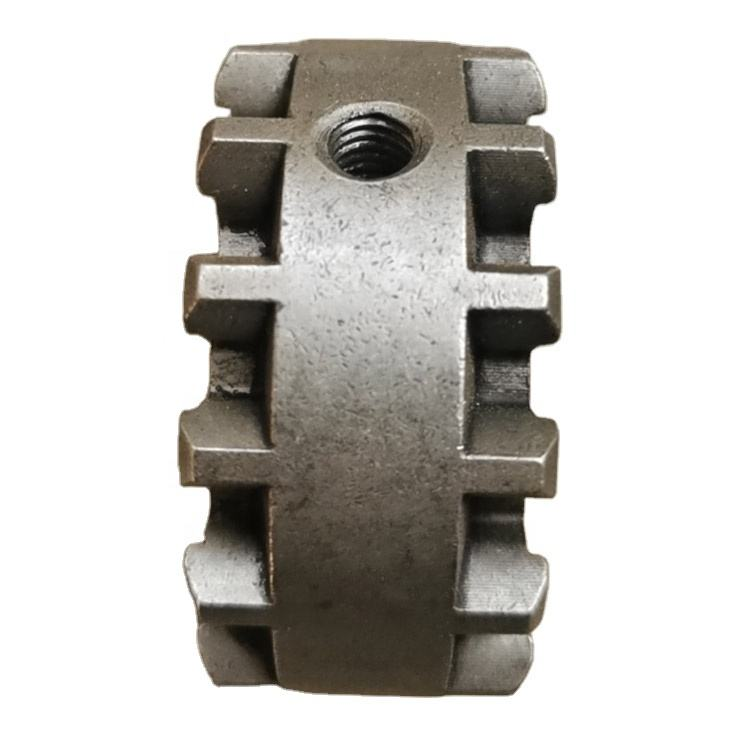

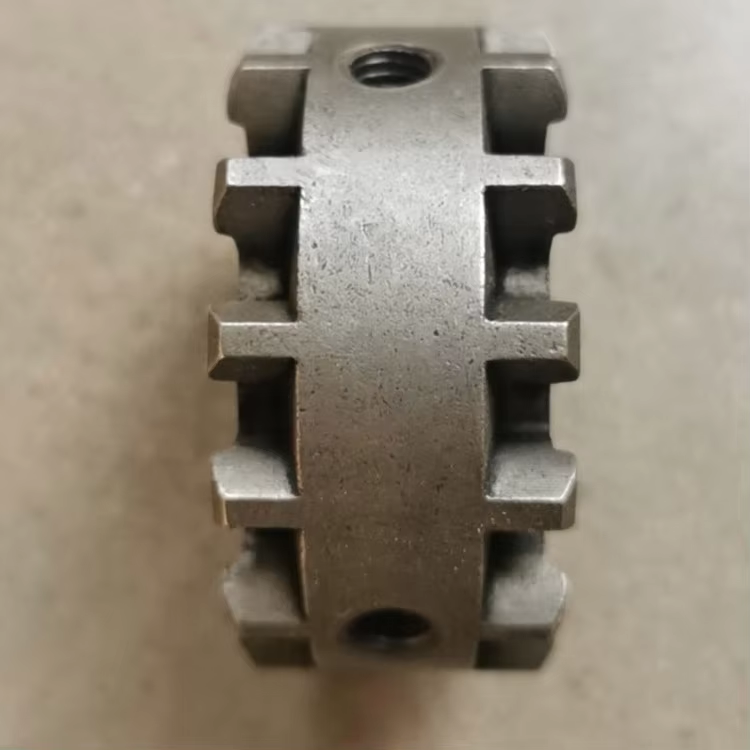

Custom Stainless Steel 304/316 Investment Casting (Silica Sol Precision Casting) Steel Precision Casting Gear

Stainless Steel Precision Casting Gears: Technical Overview and Applications

Key Features of Stainless Steel Precision Casting Gears

1. Material Properties
   • Corrosion Resistance: Stainless steel alloys (e.g., 304, 316, 17-4PH, and duplex grades like 2205) provide inherent resistance to rust, chemicals, and extreme temperatures, ensuring long-term durability in harsh environments.
   • High Strength: Precision-cast stainless steel gears exhibit excellent mechanical properties, including high tensile strength and fatigue resistance, enabling them to withstand heavy loads and cyclic stresses.
   • Heat Resistance: Certain grades (e.g., ZG20Cr13, ZG05Cr26Ni6Mo2N) are optimized for high-temperature applications, such as turbine blades or boiler systems, where thermal stability is critical.
2. Dimensional Accuracy and Surface Finish
   • The precision casting process achieves tight tolerances (typically ±0.1 mm) and a surface roughness as low as Ra 1.6–6.3 μm, reducing the need for extensive post-processing.
   • Near-net-shape casting minimizes material waste and allows for the production of intricate features like thin-walled sections, internal splines, and complex tooth profiles.
3. Design Flexibility
   • Unlike traditional machining or forging, precision casting enables the production of gears with undercuts, hollow structures, or integrated components (e.g., hubs, flanges) in a single step.
   • Advanced 3D modeling and CAD/CAM technologies optimize wax patterns for complex geometries, ensuring consistency across batches.

Manufacturing Process

1. Pattern Creation: A wax or foam model of the gear is produced using 3D printing or injection molding, ensuring high precision in tooth geometry and overall dimensions.
2. Mold Preparation: The pattern is coated with a ceramic shell, which is cured and heated to remove the wax (lost-wax process), leaving a cavity for molten metal.
3. Casting: Stainless steel alloy is melted and poured into the mold under vacuum or inert gas to prevent oxidation, ensuring high material integrity.
4. Post-Processing:
   • Heat Treatment: Solutions annealing or precipitation hardening enhances mechanical properties (e.g., hardness, toughness).
   • Surface Finishing: Polishing, mirror finishing (Ra 0.02–0.1 μm), or bead blasting improves aesthetics and reduces friction in transmission systems.
   • Quality Control: Non-destructive testing (NDT), such as X-ray or ultrasonic inspection, detects internal defects, while CMM (Coordinate Measuring Machine) verifies dimensional accuracy.

Applications

1. Aerospace: Turbine gears, actuator components, and fuel system parts benefit from stainless steel’s lightweight strength and corrosion resistance.
2. Automotive: High-performance transmission gears, differential components, and electric vehicle drivetrain parts leverage precision casting for noise reduction and efficiency.
3. Medical: Surgical instrument gears and prosthetic joints require biocompatible stainless steel (e.g., 316LVM) with polished surfaces to minimize bacterial adhesion.
4. Industrial Machinery: Gearboxes, pumps, and valves in chemical processing or marine environments rely on duplex stainless steel (e.g., 2205) for combined strength and corrosion resistance.

Advantages Over Alternative Methods

• Cost-Effectiveness: Reduces machining time and material waste compared to forging or CNC milling.
• Complexity: Enables the production of geometries impossible to achieve with conventional methods.
• Material Efficiency: Thin-walled designs save weight without compromising strength, critical for aerospace and automotive applications.

Industry Standards

Stainless steel precision casting gears comply with international standards such as ASTM A995, AMS 5355, and MIL-STD-2175, ensuring traceability and performance in regulated sectors like defense and nuclear energy.

Conclusion
Stainless steel precision casting gears represent a fusion of advanced materials science and manufacturing precision, delivering high-performance components for demanding industries. Their ability to combine corrosion resistance, strength, and intricate design makes them indispensable in applications where reliability and efficiency are paramount.
