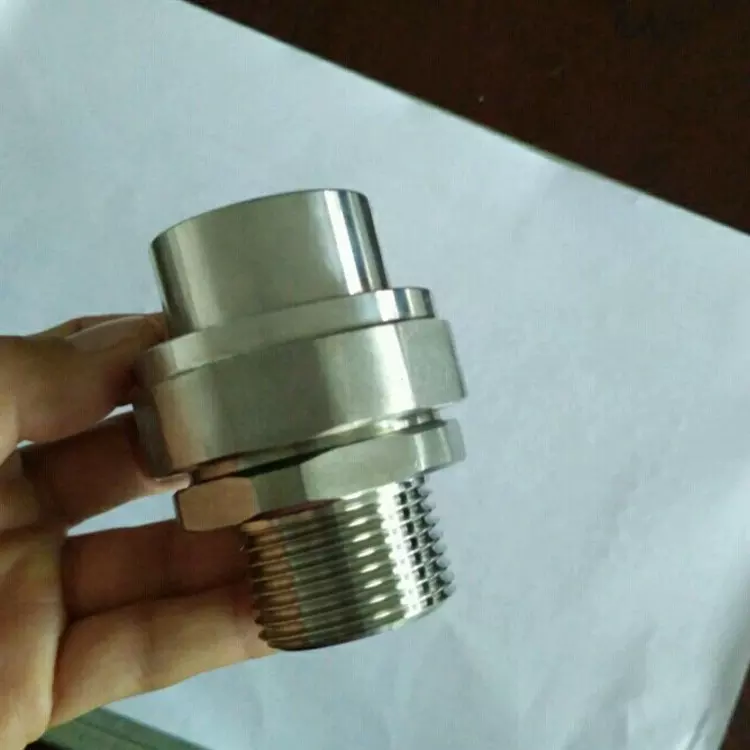

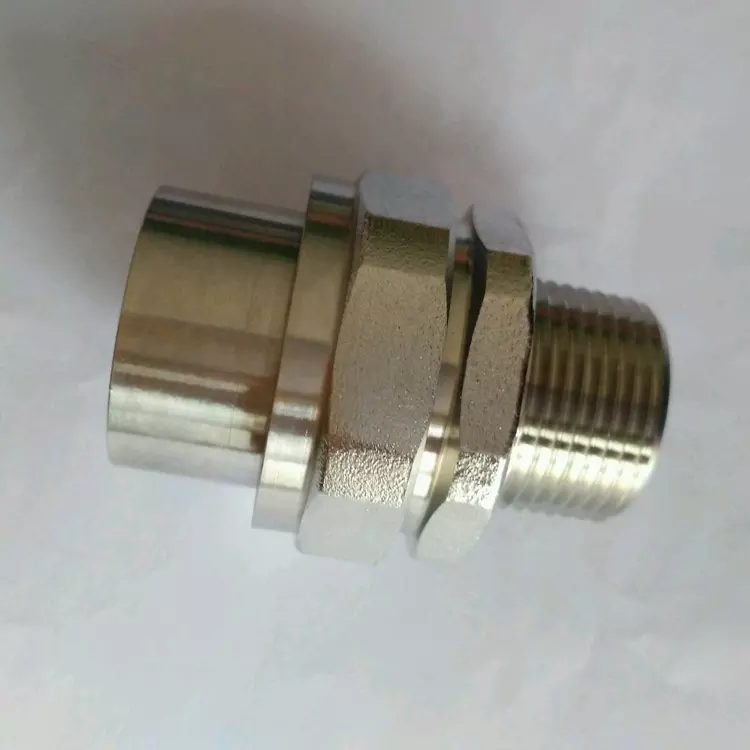

Custom Stainless Steel 304 316 Union

Key Manufacturing Processes

Investment Casting (Lost-Wax Casting)

Steps: Wax model creation → Shell molding (ceramic/silica sol coating) → Dewaxing → High-temperature baking → Stainless steel pouring → Cooling & finishing.

Advantages of Stainless Steel Precision Casting Pipe Fittings

1. High Precision and Complex Geometries

Precision casting (investment casting) allows the creation of highly intricate components—such as hollow structures, multi-way valves, and thin-walled fittings—with tight tolerances up to ±0.05mm. This eliminates the need for extensive machining and supports fully custom designs tailored to specialized industries including medical devices and aerospace.

2. Superior Corrosion Resistance

Stainless steel fittings made from grades such as 304, 316, and 316L offer exceptional resistance to corrosion, oxidation, and chemical exposure. These properties make them suitable for demanding environments including marine, chemical processing, and food-grade applications. The use of the silica sol casting process further improves surface integrity, minimizing risks of pitting and crevice corrosion.

3. Material Efficiency and Cost-Effectiveness

With near-net-shape production, precision casting achieves material utilization rates exceeding 90%, significantly reducing waste. This makes it a cost-efficient solution, especially for small to medium batch production. The process also minimizes secondary operations such as drilling or welding, shortening lead times and streamlining manufacturing.

4. Durability and High-Temperature Performance

Stainless steel precision castings retain high mechanical strength under extreme temperatures—up to 1,200°C for specific grades—making them ideal for high-heat applications like automotive exhaust systems and industrial machinery. They also offer excellent resistance to wear, impact, and fatigue, ensuring reliable performance in harsh operating conditions.

5. Smooth Surface Finish and Aesthetic Quality

Precision casting delivers components with consistently smooth surfaces and high aesthetic appeal, reducing the need for post-processing. The superior finish not only enhances visual quality but also supports hygienic and cleanability requirements in applications such as food, pharmaceutical, and architectural fittings.

Applications of Stainless Steel Precision Casting Pipe Fittings

Stainless steel precision casting pipe fittings are critical components in industries requiring corrosion resistance, high precision, and complex geometries. Their versatility stems from advanced manufacturing processes like investment casting (lost-wax casting) and silica sol casting, enabling seamless integration into diverse systems. Below are their primary applications:

1. Plumbing & Sanitary Systems

Shower Enclosures: Precision-cast glass clamps, hinges, and U-channels for frameless shower doors (e.g., 304 stainless steel E-shaped clamps with 50kg load capacity).

Drainage & Piping: Elbows, tees, and reducers for corrosion-resistant wastewater systems in residential and commercial buildings.

Water Supply: Fittings for potable water lines (compliant with NSF/ANSI 61 standards for safe drinking water contact).

Precision casting enables leak-proof joints and smooth internal surfaces, which help prevent bacterial growth. It also supports custom designs to meet aesthetic and functional requirements, such as concealed fixtures.

2. Industrial Machinery & Equipment

Pump & Valve Components: Impellers, housings, and connectors for chemical, oil & gas, and marine applications (e.g., 316L stainless steel pump bodies resistant to seawater corrosion).

Automotive Systems: Exhaust flanges, turbocharger manifolds, and fuel rail fittings (withstanding high temperatures and vibrations).

Instrumentation: Precision connectors for pressure gauges, flow meters, and sensors (e.g., miniature 304 stainless steel tees with ±0.05mm tolerance).

Produces lightweight yet durable parts with thin walls (as low as 2mm) for efficiency.

Ensures dimensional stability under extreme operating conditions.

3. Medical & Pharmaceutical Equipment

Surgical Instruments: Handles, connectors, and joints for laparoscopic tools (e.g., 316L stainless steel fittings with mirror-polished surfaces for easy sterilization).

Fluid Management Systems: Valves, filters, and couplings for sterile liquid transfer in biotech and pharmaceutical plants.

Diagnostic Devices: Fittings for MRI machines, X-ray equipment, and lab analyzers (non-magnetic 304/316L grades to avoid interference).

Meets stringent hygiene standards (ISO 13485, FDA compliance).

Eliminates welding lines that could harbor contaminants, ensuring biocompatibility.

4. Architectural & Decorative Applications

Staircase Handrails: Adjustable elbows, brackets, and end caps for modern stair designs (e.g., 50mm-diameter 304 stainless steel elbows with 90° rotation).

Curtain Wall Systems: Spiders, claws, and connectors for glass facades in high-rise buildings.

Furniture & Lighting: Decorative tubes, joints, and bases for luxury interior fittings (e.g., brushed finish 304 stainless steel lamp holders).

Achieves intricate designs (e.g., logo embossing, curved profiles) without machining.

Provides consistent surface quality for aesthetic appeal (e.g., 600-grit polishing).

5. Food & Beverage Processing

Dairy & Brewery Equipment: Fittings for milk tanks, beer kegs, and pasteurization systems (e.g., 316L stainless steel sanitary clamps with Tri-Clamp connections).

CIP (Clean-in-Place) Systems: Spray balls, nozzles, and distributors for automated cleaning of processing lines.

Resists acidic/alkaline cleaning agents without degradation.

Ensures smooth internal contours to prevent product residue buildup.

6. Marine & Offshore Engineering

Shipbuilding: Pipe fittings for ballast water systems, fuel lines, and cooling circuits (e.g., duplex stainless steel 2205 tees for saltwater resistance).

Offshore Platforms: Subsea connectors, chokes, and manifolds for oil extraction (withstanding pressures up to 10,000 PSI).

Combines high strength with corrosion resistance in harsh marine environments.

Reduces weight compared to forged parts, improving fuel efficiency.

Advantages

• Enables production of intricate shapes (e.g., hollow structures, multi-way valves).
• Delivers high dimensional accuracy (tolerance ±0.1mm) and smooth surface finish (Ra ≤ 3.2μm).
• Supports diverse stainless steel grades: 304, 316, 316L, etc., for varying corrosion and temperature resistance.

This process is widely applied in Stainless Steel Lost Wax Casting Pipe Fittings, ensuring durability and precision for complex designs.

Silica Sol Casting

A refined variant of investment casting using silica sol as a binder, offering superior surface quality and fewer defects (e.g., porosity, sand inclusions).

Ideal for high-end applications like medical devices and food-grade machinery (compliant with ISO 13485, FDA standards). Many Stainless Steel Cast Pipe Fittings are produced using this method to guarantee a smooth finish and enhanced reliability.

Key attributes

About Jarzoo

Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.

We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.



Technical Specifications

Specification	Customizable according to customers' drawings or samples
Material	stainless steel;304 CF8 1.4308 304L CF3 316 CF8M 1.4408 316L CF3M 1.4404 1.4409
	WCB 1.0619 25# 35# 45# Carbon Steel; Alloy Steel; Copper alloy etc.
	We test the chemical composition of every furnace before pouring by spectrometer to accord with the international standards
Technology	Silicon sol precision casting/investment casting/lost wax casting
Machining	CNC machining center, CNC lathe
Casting tolerance	IT4 - IT7
Machining tolerance	+/- 0.005mm,ISO2768-f
Standard	DIN,JIS,ASTM,GOST,ISO,BS
Weight range	0.01-150kg
Specification of casting furnace	200T
Finish	Acid passivation
Heat treatment	Available
Surface treatment	Electrochemical polish.mirror polish. As customers’ requirements
Application	Automobile, agriculture, machinery, furniture,
	construction, home appliances, electronics.piping.aircraft parts,hardware,OEM&ODM capability.etc.

Why Choose Us?

This combination of precision, durability, and versatility makes stainless steel precision casting pipe fittings indispensable in modern engineering and design. For customized solutions, partnering with Jarzoo ensures cost-effective, high-quality outcomes.

Packaging & Shipping

Products are carefully protected with spark-proof film or kraft paper, then boxed or palletized. Reinforced corners and custom packaging help withstand long-distance sea or truck transport, ensuring safe arrival at customer destinations.

Packaging Details	Carton/Palette/Customized
Individual Packaging Size	Example: 8X10X15 cm (subject to change)
Single Item Gross Weight	Example: 0.50 KG (subject to change)
Delivery Time	7-30 days after payment
Shipping Method	Sea/Air/Courier

Customization options

Frequently Asked Questions

Q1: What is your typical delivery time?

Sample orders are typically delivered within 25 working days. Mass production orders are generally completed within 60 working days.

Q2: What are your accepted payment terms?

For orders under $1000 USD, full payment is required in advance. For orders of $1000 USD or more, a 30% deposit via T/T is required upfront, with the remaining balance due before shipment.

Q3: What information do you need from clients to begin production?

We can customize products based on your provided drawings and samples.

Q4: Do you retain traceability records?

Yes, tested samples are securely stored in our laboratory for a minimum of two years to ensure full traceability.
