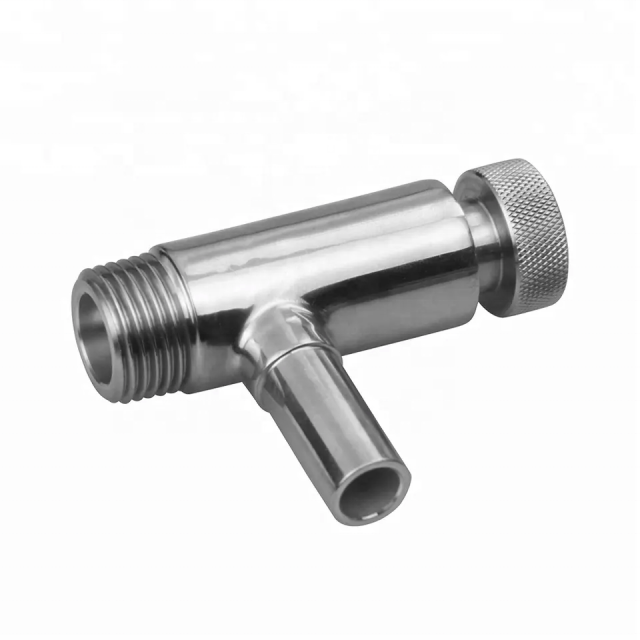

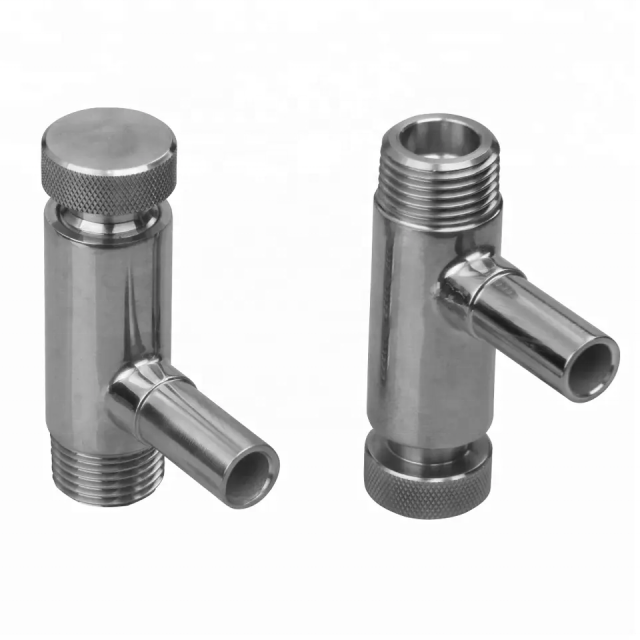

Custom Stainless Steel Sampling Valve

Stainless Steel Sampling Valve: Precision, Hygiene, and Durability in Sample Extraction

Key Features

1. Material Quality:
   • Made from 304 or 316L stainless steel, ensuring excellent corrosion resistance and durability.
   • 316L stainless steel is preferred for applications involving harsh chemicals or sterile environments due to its enhanced corrosion resistance and low carbon content.
2. Hygienic Design:
   • Many stainless steel sampling valves feature a sanitary design with smooth, crevice-free surfaces to prevent bacterial growth and facilitate easy cleaning.
   • Some models are sterilizable (e.g., via autoclaving or steam sterilization), making them suitable for applications requiring strict aseptic conditions, such as pharmaceutical manufacturing or food processing.
3. Precision and Safety:
   • Equipped with a flushing hole at the base of the stem to ensure continuous flow and prevent sample contamination.
   • Limited stem travel minimizes the risk of accidental spills or exposure to hazardous materials.
   • Pressure ratings of up to 400 PSI (at 200°F) ensure reliable operation in high-pressure systems.
4. Versatile Connection Options:
   • Available with various connection types, including Tri-Clamp® ferrules, NPT threads, or weld bodies, to accommodate different piping systems.
   • Optional stem extensions allow sampling directly within product flow in tubing ranging from 1” to 4” in diameter.
5. Ease of Use:
   • Solid Delrin knob or 17-4 stainless steel knob insert for ergonomic operation.
   • Optional 90-degree or in-line models for flexible installation in tight spaces.

Applications

• Food and Beverage: Used to extract samples from tanks or pipelines for quality control, microbial testing, or ingredient verification.
• Pharmaceuticals and Biotechnology: Ensures sterile sampling for process validation, product testing, or regulatory compliance.
• Petrochemicals: Enables safe extraction of samples from high-pressure or corrosive fluid streams for analysis or monitoring.
• Water Treatment: Facilitates sampling of water or wastewater for chemical analysis or microbial testing.

Technical Specifications (Example)

• Material: 316L stainless steel (body and stem).
• Seal Material: Silicone O-ring (standard), with optional materials available.
• Pressure Rating: 400 PSI at 200°F.
• Temperature Range: Up to 248°C (depending on model).
• Connection Types: 1/2” Tri-Clamp®, 1/4” NPT, or weld bodies.
• Discharge: 3/8” OD hose barb for product discharge.

Advantages

• Corrosion Resistance: Stainless steel construction ensures long-term durability in harsh environments.
• Hygienic Design: Minimizes contamination risks, making it ideal for sensitive applications.
• Precision Sampling: Flushing hole and limited stem travel ensure accurate, representative samples.
• Easy Maintenance: Smooth surfaces and minimal dead space simplify cleaning and sterilization.

Example Product
The Stainless Products, LLC (SPI) Sampling Valve features 316L stainless steel construction, a pressure rating of 400 PSI at 200°F, and a flushing hole for continuous flow. It is available with various connection types and optional stem extensions for flexible installation.

Key Features & Benefits

Applications:

 Specifications

Quality Assurance

Jarzoo ensures the highest quality standards:

100% visual & pressure testing before shipment

No burrs, perfect threads, and smooth casting surfaces

In-house chemical analysis of molten material before casting

Traceability: All test samples retained for 2 years

About Jarzoo

Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.

We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.

Packaging & Delivery

Packaging: Secure carton or pallet packing

Delivery Time: Samples within 25 days; bulk order within 60 days

Shipping: Global delivery supported

Payment Terms:

Orders ≤ $1000: 100% advance

Orders ≥ $1000: 30% deposit, 70% before shipment

FAQ

Q: Do you offer samples?
A: Yes, sample is available with MOQ of 1 pc.

Q: Can I customize the logo or size?
A: Absolutely. We support custom logos, graphics, and non-standard sizes with a minimum order of 100 pieces.

Q: What materials can you provide?
A: We offer a wide range: SS304, SS316, WCB, alloy steel, carbon steel, copper alloys, and more.

Q: Can you trace materials and production batches?
A: Yes. All testing data and samples are archived for traceability.
