customisable stainless steel 304 316 hose barbed mini ball valve

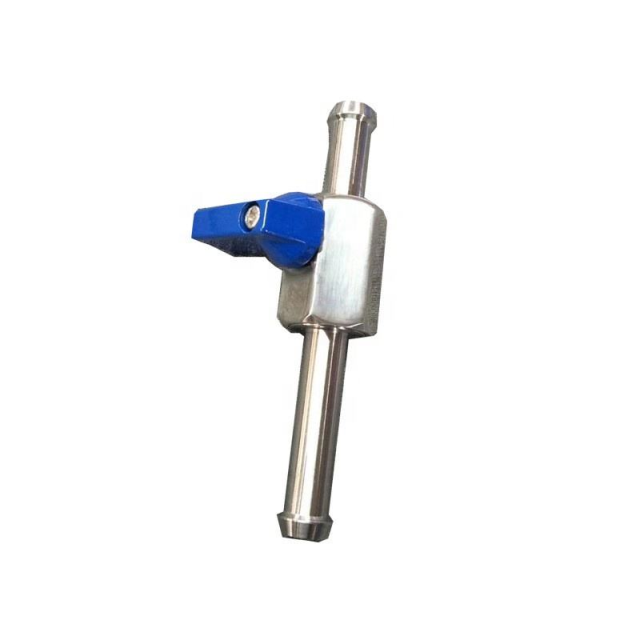

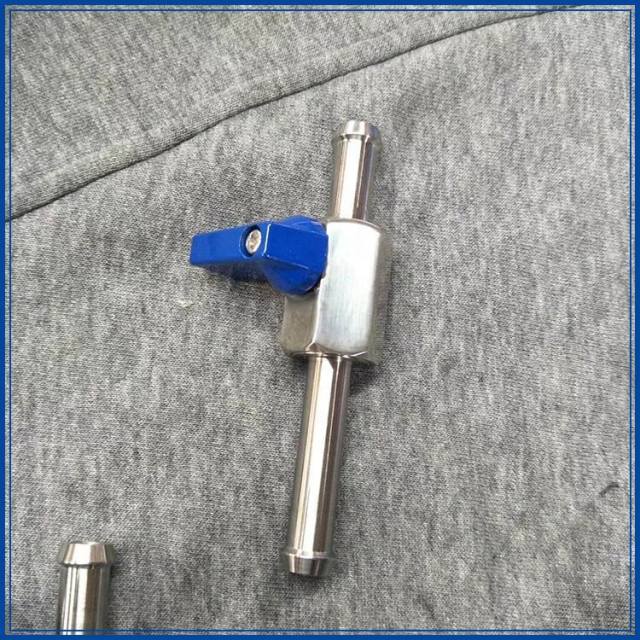

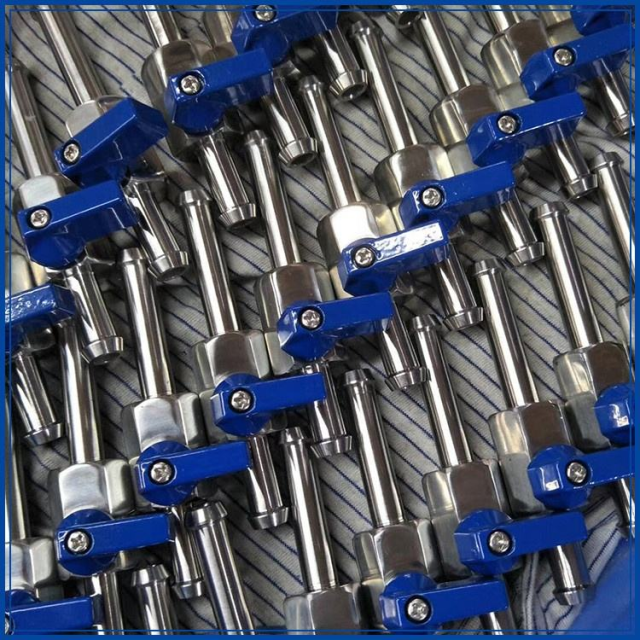

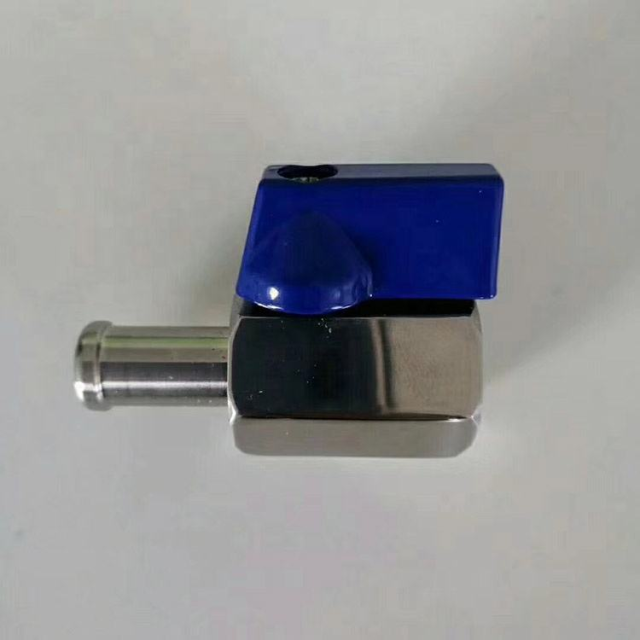

Stainless Steel Mini Ball Valve with Tapered Barb Ends

(Alternative Terms: Double-Lug Mini Ball Valve, Mini Stainless Steel Hose Barb Ball Valve)

1. Product Definition & Core Features

A stainless steel mini ball valve with tapered barb ends is a compact, corrosion-resistant flow control device designed for low-pressure piping systems requiring quick, secure connections to flexible hoses. Key attributes include:

• Material: 304/316L stainless steel body for durability in harsh environments.
• Tapered Barb Design: Conical ends enable push-fit installation into rubber/PVC hoses, secured by hose clamps or crimped fittings.
• Miniature Size: Port sizes range from 1/8" to 1/2" (DN4-DN15), ideal for space-constrained applications.
• Manual Operation: 90° turn lever handle for fast on/off control with minimal torque.

2. Technical Specifications

3. Key Advantages

• Quick Installation: Eliminates need for threaded adapters or flanges—simply push hose onto barbs and tighten clamps.
• Space Efficiency: 50% smaller than standard ball valves, fitting into tight instrument panels or equipment.
• Leak-Proof: PTFE seats ensure bubble-tight sealing under rated pressure.
• Corrosion Resistance: Stainless steel construction withstands aggressive media (e.g., saltwater, acids).
• Low Maintenance: Self-lubricating ball design reduces wear, extending service life.

4. Typical Applications

1. Laboratory & Analytical Systems
   • Connects gas/liquid lines in HPLC, GC, or mass spectrometry equipment.
2. Food & Beverage Processing
   • Controls ingredient flow in brewing, dairy, or soft drink production lines.
3. Medical Devices
   • Regulates fluid in dialysis machines, dental units, or laboratory samplers.
4. Pneumatic & Hydraulic Control
   • Manages air/oil flow in compact machinery, robotics, or automation setups.
5. Aquariums & Water Treatment
   • Adjusts water circulation in fish tanks or chemical dosing systems.

5. Example Product Models

• Swagelok SS-4MB-TB: 1/4" mini ball valve with 316L SS body and tapered barbs, rated to 1000 PSI.
• Parker Hannifin A-Lok Mini-Barb Series: Compact design with BSPP threads for European compatibility.
• HAM-LET H200-BB: Sanitary-grade valve with tri-clamp ends and optional barb adapters for pharma use.

6. Customization Options

• End Connections: Alternate between tapered barbs, threaded (NPT/BSP), or sanitary clamps.
• Seal Materials: Upgrade to Viton for high-temperature steam or Kalrez for ultra-corrosive chemicals.
• Actuation: Add pneumatic or electric actuators for remote control in hazardous environments.

Final Note:
This valve is the optimal choice for applications demanding compact size, rapid installation, and reliable performance in corrosive or high-purity environments. Its stainless steel construction and innovative barb-end design simplify piping layouts while ensuring long-term durability.
