Material Options:
· Food-grade 304 stainless steel or high-grade 316 stainless steel
· Excellent corrosion and oxidation resistance
· Complies with international casting material standards (CF8, CF8M, 1.4308, 1.4408)
Connection Sizes:
·Available in 1/8" 1/4" 3/8", 1/2", 3/4", and 1" thread sizes
· BSPP, BSPT, NPT, DIN thread compatibility
Precision Engineering:
· Investment casting (lost-wax/silica sol process)
· CNC machining with ±0.005mm tolerance
· Smooth internal surfaces for hygienic flow
Highly Durable & Leak-Proof:
· 100% pressure & leakage tested
· Built to withstand medium temperatures and demanding use
·Mirror-polished surface for easy cleaning and aesthetics
OEM & Customization Support:
· Custom sizes, logo engraving, surface finish, packaging
· MOQ for customization starts from 100 pieces
· Full support from prototype to batch production

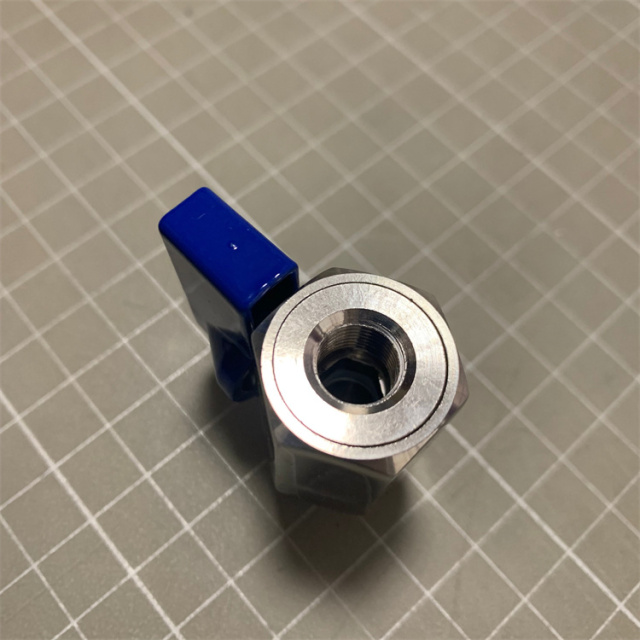

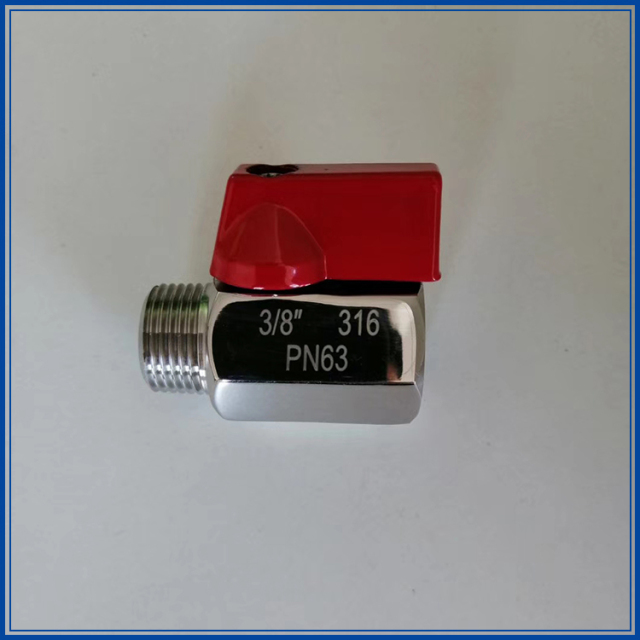

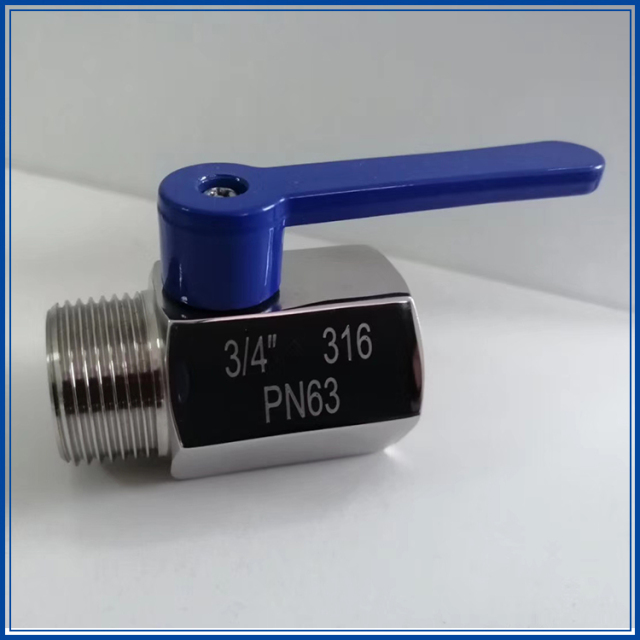

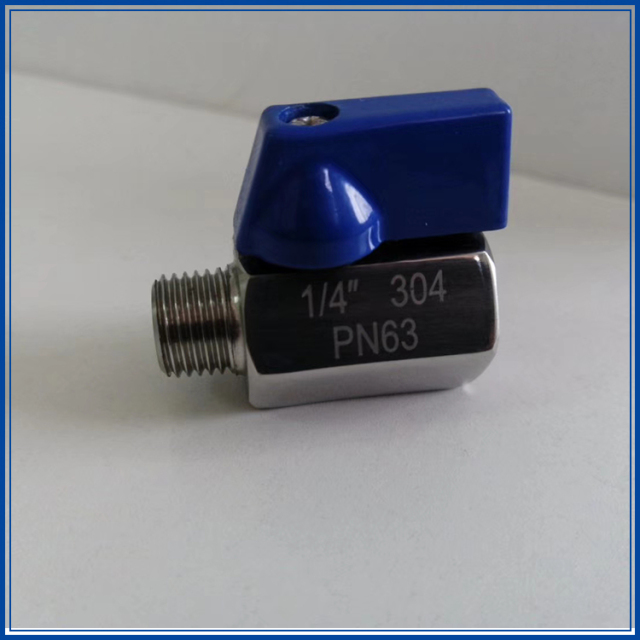

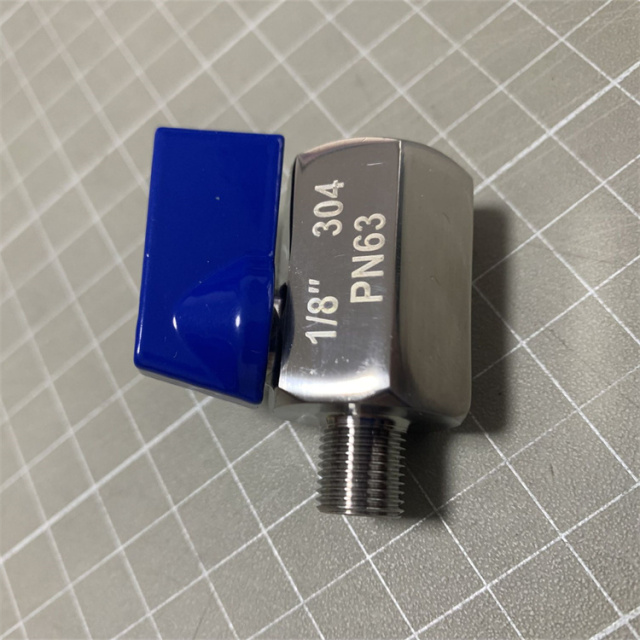

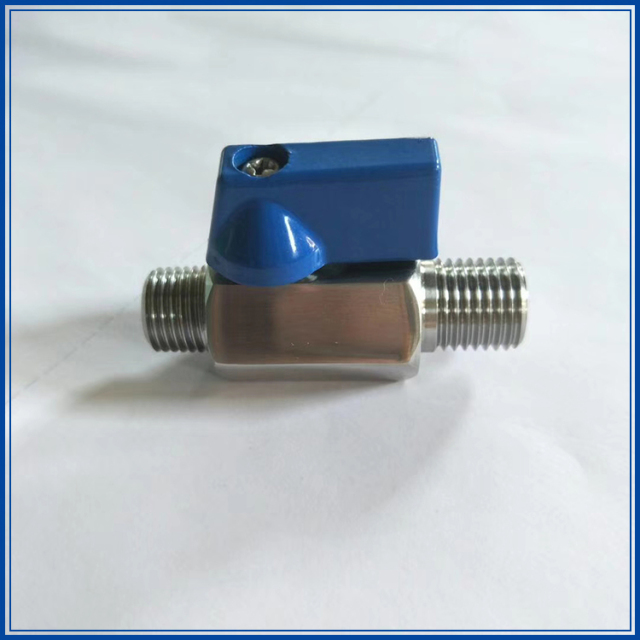

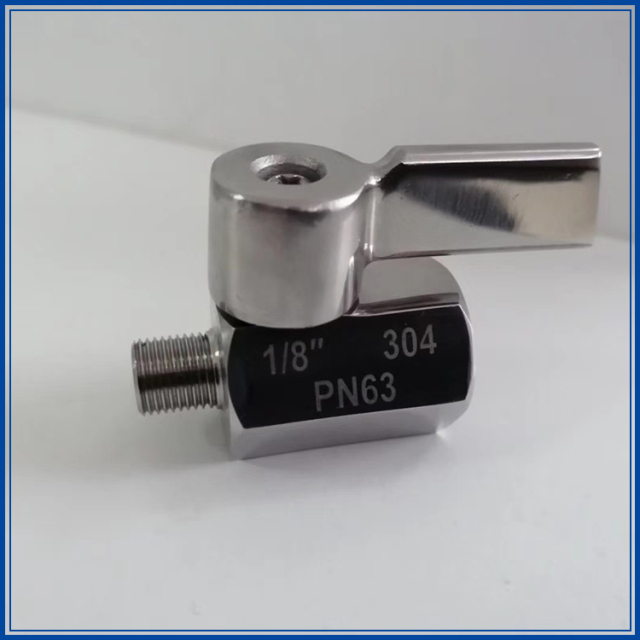

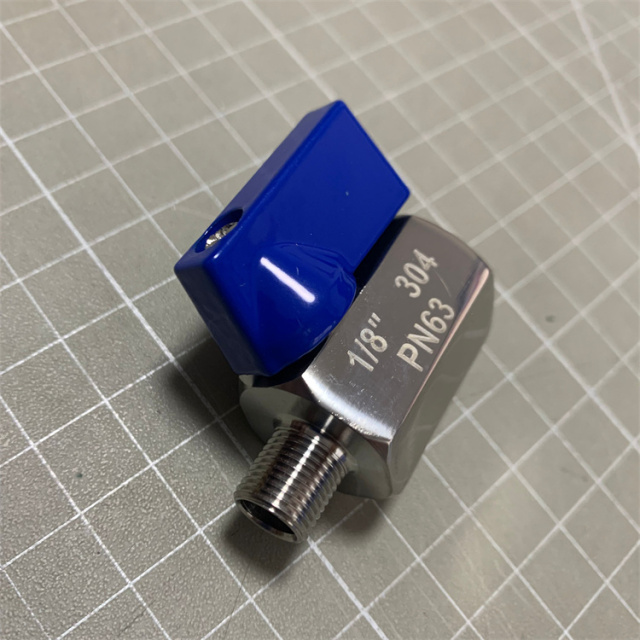

Key Features of Stainless Steel Mini Ball Valves
Compact & Space-Saving Design
Small footprint makes them ideal for tight installations (e.g., under sinks, in control panels, or on machinery).
Lightweight construction reduces strain on piping systems.
High-Quality Stainless Steel Construction
Made from 304/316L stainless steel, offering excellent resistance to corrosion, rust, and chemical attack.
Suitable for water, air, steam, oil, and mild chemicals (e.g., dilute acids, alkalis).
Full-Port or Reduced-Port Options
Full-port valves provide minimal flow restriction (straight-through design).
Reduced-port valves are more compact but slightly restrict flow.
Easy Operation
Manual lever handle for quick on/off control.
Some models support actuator mounting for automation (pneumatic/electric).
Leak-Proof Sealing
PTFE (Teflon) or RPTFE seats ensure tight shutoff even at low pressures.
Blowout-proof stem design prevents accidental disassembly under pressure.
Pressure & Temperature Ratings
Pressure: Up to PN63 (63 bar) / ANSI Class 800 (varies by model).
Temperature: -20°C to 180°C (depending on seal material).
End Connections
Threaded (NPT, BSPT, BSPP), socket weld (SW), or compression fittings.
Main Applications of Stainless Steel Mini Ball Valves
1. Residential & Commercial Plumbing
Water Supply Systems:
Controls cold/hot water flow in sinks, toilets, and water heaters.
HVAC & Refrigeration:
Used in small cooling lines, refrigerant circuits, and air conditioning units.
2. Pneumatic & Instrumentation Systems
Compressed Air Control:
Regulates airflow in pneumatic tools, actuators, and automation equipment.
Gas Sampling Lines:
Isolates instruments in analytical or laboratory setups.
3. Light Industrial Processes
Chemical Dosing Systems:
Controls the flow of additives in water treatment or food processing.
Steam & Condensate Lines:
Used in secondary steam circuits (e.g., heating systems, sterilization equipment).
4. Automotive & Marine Applications
Fuel & Fluid Management:
Installed in fuel lines, coolant circuits, or hydraulic systems.
Saltwater Resistance:
316L stainless steel prevents corrosion in marine environments.
5. DIY & Hobbyist Projects
Aquariums & Hydroponics:
Controls water flow in fish tanks or plant irrigation systems.
Home Brewing & Beverage Dispensing:
Regulates liquid flow in beer taps or soda machines
Jarzoo ensures the highest quality standards:
100% visual & pressure testing before shipment
No burrs, perfect threads, and smooth casting surfaces
In-house chemical analysis of molten material before casting
Traceability: All test samples retained for 2 years
✅ Compact & Space-Saving – Ideal for tight installations.
✅ Corrosion-Resistant – 304/316L stainless steel for water, air, oil, and mild chemicals.
✅ Dual-Thread Design –
"1/2" Stainless Steel Mini Ball Valve with NPT Male x Female Threads, 304 Grade, Full Port Design, for Water/Air Control."
Would you like a supplier recommendation or a 3D model reference for this valve type?
Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.
We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.
Packaging: Secure carton or pallet packing
Delivery Time: Samples within 25 days; bulk order within 60 days
Shipping: Global delivery supported
Payment Terms:
Orders ≤ $1000: 100% advance
Orders ≥ $1000: 30% deposit, 70% before shipment
Q: Do you offer samples?
A: Yes, sample is available with MOQ of 1 pc.
Q: Can I customize the logo or size?
A: Absolutely. We support custom logos, graphics, and non-standard sizes with a minimum order of 100 pieces.
Q: What materials can you provide?
A: We offer a wide range: SS304, SS316, WCB, alloy steel, carbon steel, copper alloys, and more.
Q: Can you trace materials and production batches?
A: Yes. All testing data and samples are archived for traceability.
