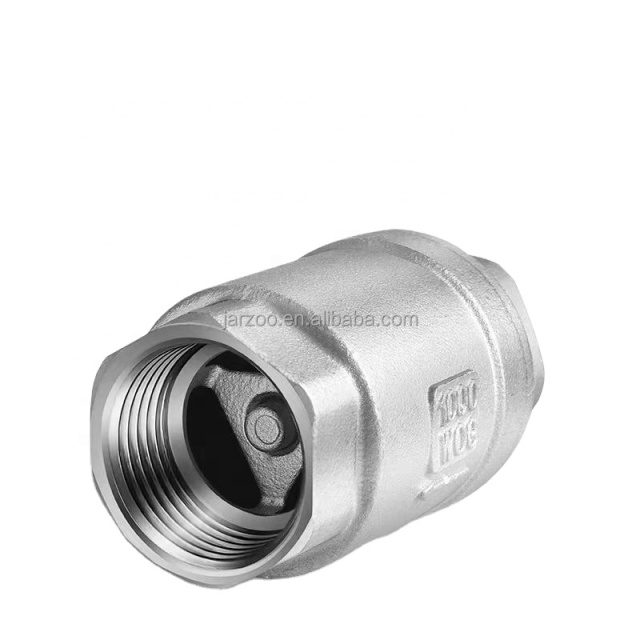

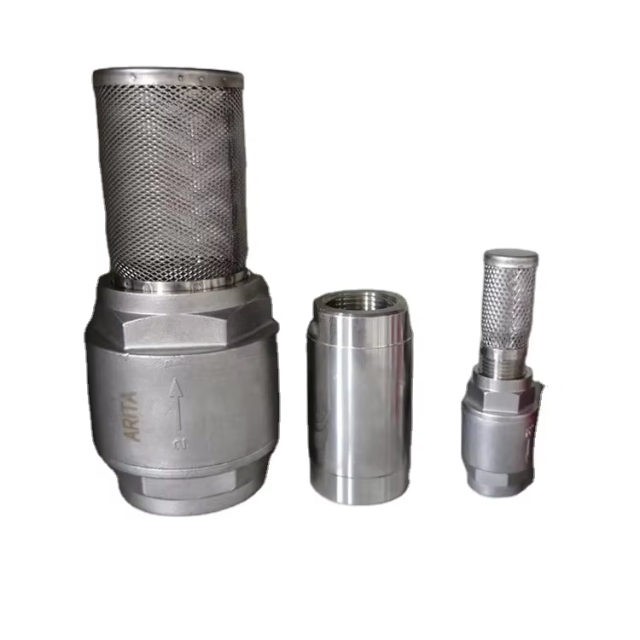

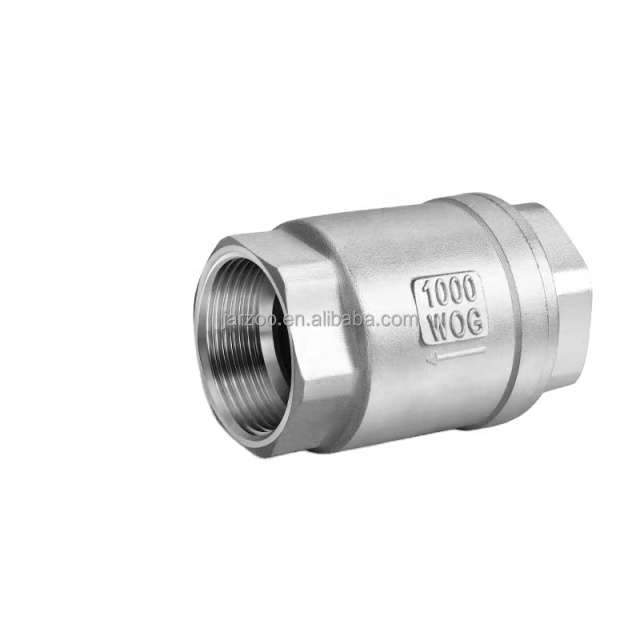

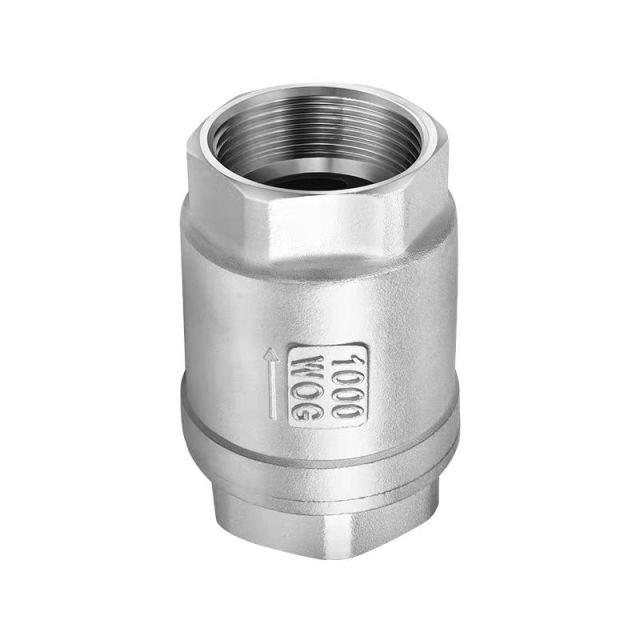

Stainless Steel 304 316 2PC Non Return Check Valve

Key Features & Benefits

Applications of Check Valves

Check valves are critical components in fluid systems, ensuring unidirectional flow and preventing backflow. Below are their primary applications across industries:

1. Water Supply & Drainage Systems

• Function: Prevent water from flowing backward in pipelines, protecting pumps and equipment from damage caused by reverse pressure (e.g., water hammer).
• Example: Installed at the outlet of water pumps in municipal water supply networks to maintain consistent flow direction.

2. Oil & Gas Industry

• Function: Isolate high-pressure oil/gas wells from low-pressure processing systems, preventing contamination and ensuring safe transportation.
• Example: Used in offshore drilling platforms to block reverse flow of hydrocarbon fluids during emergencies.

3. Chemical & Pharmaceutical Manufacturing

• Function: Avoid cross-contamination between different media (e.g., acids, solvents) by ensuring strict unidirectional flow.
• Example: Installed in reaction vessel feed lines to prevent reactive chemicals from mixing inadvertently.

4. Power Generation

• Function: Protect turbines and compressors from steam or coolant backflow, which could cause mechanical failure.
• Example: Used in boiler feedwater systems to prevent condensed water from returning to the boiler under low pressure.

5. HVAC (Heating, Ventilation, & Air Conditioning)

• Function: Maintain refrigerant flow direction in cooling systems, ensuring efficient heat exchange.
• Example: Prevent compressor oil from migrating into the evaporator coil during system shutdown.

6. Marine Engineering

• Function: Resist saltwater corrosion and prevent seawater from entering freshwater systems on ships.
• Example: Installed in ballast water pipelines to avoid contamination of potable water tanks.

7. Firefighting Systems

• Function: Ensure water flows exclusively toward fire hoses under high pressure, preventing reverse leakage.
• Example: Used in fire sprinkler networks to maintain system integrity during activation.

8. Wastewater Treatment

• Function: Block foul gases or sewage from re-entering buildings through drainage pipes.
• Example: Installed in residential sewer lines to prevent backflow of odors or wastewater during heavy rainfall.

Key Advantages

• Automatic Operation: No external power or manual control required; opens/closes based on flow pressure.
• Compact Design: Suitable for space-constrained installations (e.g., underwater pipelines).
• Material Versatility: Available in stainless steel (corrosion resistance), PVC (chemical resistance), and brass (affordability).

Selection Considerations

• Pressure Rating: Choose valves rated ≥1.5× the system’s maximum operating pressure.
• Thread Type: Match NPT, BSP, or metric threads to regional pipeline standards.
• Flow Velocity: High-velocity systems may require dual-plate or silent check valves to reduce water hammer.

Example Product Specification

Model: CV-316L-6NPT (316L Stainless Steel Swing Check Valve, 6" NPT)

• Application: High-pressure steam lines in chemical plants.
• Features:
  • Pressure rating: 42 MPa (6,090 PSI).
  • Temperature resistance: Up to 800°C.
  • Renewable seat for easy maintenance.

Check valves are indispensable for system safety and efficiency, with applications spanning from residential plumbing to industrial process control. Proper selection and installation are essential to avoid leaks, water hammer, or premature failure.

 Specifications

Quality Assurance

Jarzoo ensures the highest quality standards:

100% visual & pressure testing before shipment

No burrs, perfect threads, and smooth casting surfaces

In-house chemical analysis of molten material before casting

Traceability: All test samples retained for 2 years

About Jarzoo

Hebei Jarzoo Metal Products Co., Ltd. specializes in custom precision castings using advanced investment casting (silica sol/lost wax). With decades of experience since the 1990s and a complete production line including mold design, casting, machining, and surface treatment, we serve industries ranging from brewing and food processing to automotive and aerospace.

We support full OEM/ODM capabilities, fast sampling, and reliable international logistics from our well-located base near Beijing and Tianjin ports.

Packaging & Delivery

Packaging: Secure carton or pallet packing

Delivery Time: Samples within 25 days; bulk order within 60 days

Shipping: Global delivery supported

Payment Terms:

Orders ≤ $1000: 100% advance

Orders ≥ $1000: 30% deposit, 70% before shipment

FAQ

Q: Do you offer samples?
A: Yes, sample is available with MOQ of 1 pc.

Q: Can I customize the logo or size?
A: Absolutely. We support custom logos, graphics, and non-standard sizes with a minimum order of 100 pieces.

Q: What materials can you provide?
A: We offer a wide range: SS304, SS316, WCB, alloy steel, carbon steel, copper alloys, and more.

Q: Can you trace materials and production batches?
A: Yes. All testing data and samples are archived for traceability.
