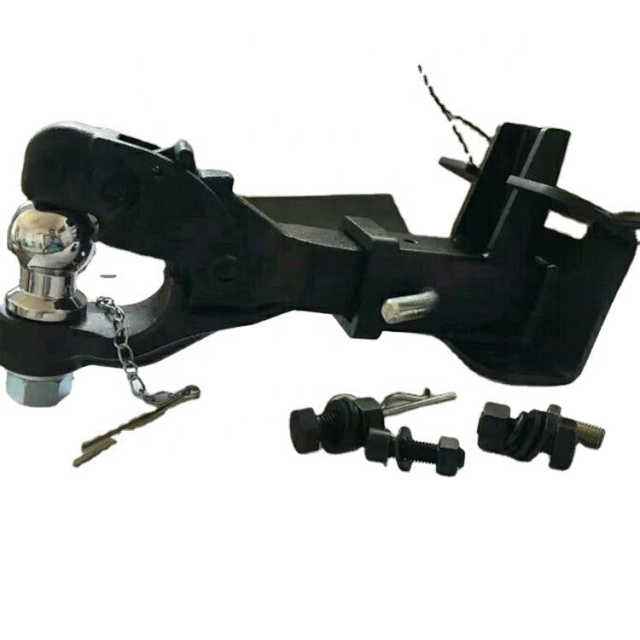

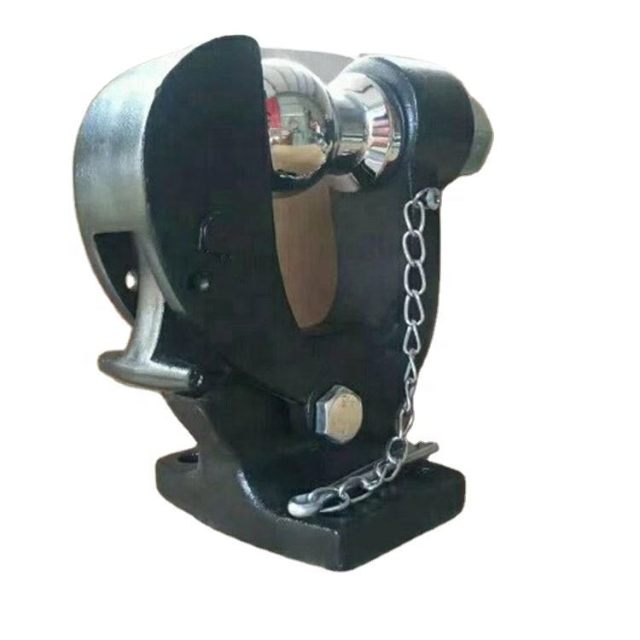

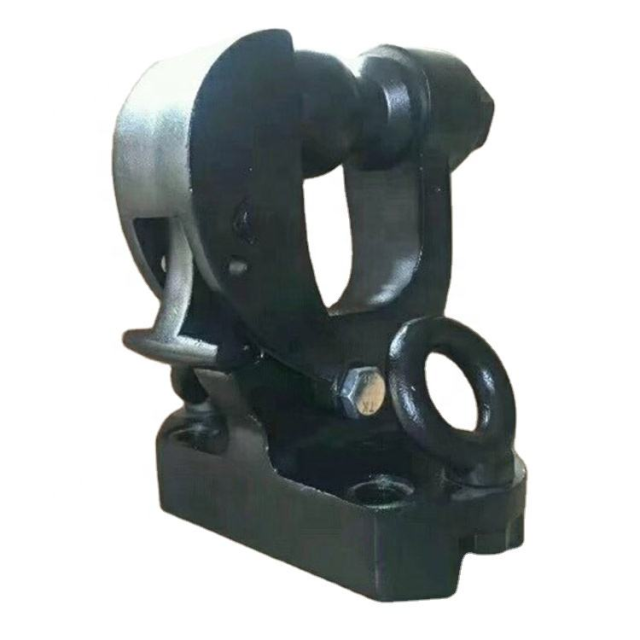

Stainless Steel 304 316 Investment Casting (Silica Sol Precision Casting) Auto Spare Parts

Precision-Cast Automotive Components: Key Manufacturing Processes

1. Investment Casting (Lost-Wax Casting)
   • Process: Molten metal (e.g., aluminum, stainless steel, titanium) is poured into a ceramic shell mold created from a wax pattern.
   • Advantages:
     • Achieves ±0.1mm tolerance for intricate shapes (e.g., turbine wheels, valve bodies).
     • Eliminates need for secondary machining, reducing production costs by 15–30%.
     • Supports low-volume, high-mix production for niche automotive applications.
2. High-Pressure Die Casting (HPDC)
   • Process: Molten metal is injected under high pressure (15–150 MPa) into a steel die cavity.
   • Advantages:
     • Ideal for high-volume production (e.g., 100,000+ parts/year) of structural components (e.g., engine blocks, battery housings).
     • Produces parts with excellent surface finish (Ra ≤ 1.6μm) and dimensional stability.

Material Options

Core Advantages

1. Design Freedom
   • Enables one-piece casting of complex assemblies (e.g., integrated cooling channels in cylinder heads), reducing part count by 40–60%.
2. Weight Reduction
   • Aluminum/magnesium castings cut component weight by 50–70% vs. traditional steel, improving fuel efficiency by 5–8% in ICE vehicles and extending EV range by 10–15%.
3. Thermal & Mechanical Performance
   • Withstands -40°C to 300°C operating temperatures, critical for turbocharger housings and battery thermal management systems.
4. Cost Efficiency
   • Reduces total manufacturing cost by 20–35% compared to multi-part fabricated assemblies, due to minimized material waste and assembly labor.

Typical Applications

1. Powertrain Systems
   • Engine Components: Cylinder heads, crankcase covers, oil pump housings.
   • Transmission Parts: Gearbox casings, clutch carriers, differential housings.
2. Chassis & Suspension
   • Control arms, knuckles, and subframe brackets for improved ride comfort and crash safety.
3. Electric Vehicle (EV) Components
   • Battery Enclosures: Lightweight aluminum castings with integrated crash structures.
   • Motor Housings: High-precision die-cast parts for electric motor stators and rotors.
4. Thermal Management
   • Radiator end tanks, intercooler end caps, and HVAC system components.

Quality Assurance

• Non-Destructive Testing (NDT): X-ray, ultrasonic, and dye penetrant inspections to detect internal defects (e.g., porosity, cracks).
• Dimensional Validation: CMM (Coordinate Measuring Machine) scans ensure compliance with ISO 2768 (medium grade) or tighter tolerances.
• Material Certification: Traceable to ASTM/AISI standards (e.g., A356 for aluminum, 316L for stainless steel).

Customization Capabilities

1. Rapid Prototyping
   • 3D-printed wax patterns enable 5–7 day turnaround for functional prototypes.
2. Conformal Cooling Channels
   • Design cooling passages directly into castings to reduce thermal gradients in high-power components (e.g., EV motor housings).
3. Multi-Material Casting
   • Combine aluminum and magnesium in a single part to optimize stiffness-to-weight ratios (e.g., hybrid suspension components).

Case Study: Aluminum Cylinder Head

• Client: Leading automotive OEM
• Requirements:
  • Material: A356-T6 aluminum alloy
  • Tolerance: ±0.05mm on critical bore dimensions
  • Production Volume: 500,000 units/year
• Solution:
  • High-pressure die casting with vacuum assistance to minimize porosity.
  • Post-casting T6 heat treatment for improved mechanical properties (UTS ≥ 290 MPa).
• Result:
  • Reduced part weight by 35% vs. steel equivalent.
  • Achieved 99.8% first-pass yield rate in mass production.

Conclusion

Precision-cast automotive components are the cornerstone of lightweight, high-performance vehicle design. By leveraging advanced casting technologies and materials science, manufacturers can produce parts that are stronger, lighter, and more cost-effective than traditional alternatives, driving innovation across ICE, hybrid, and electric powertrains.

"Transform your automotive supply chain with precision castings that deliver performance without compromise."
