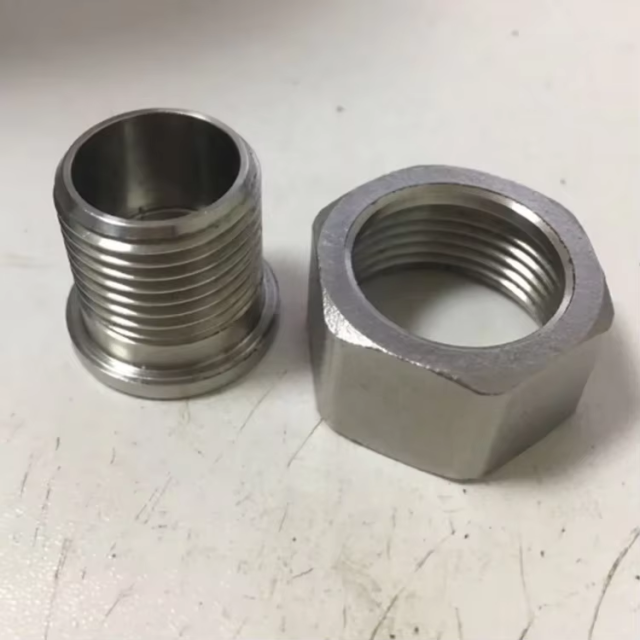

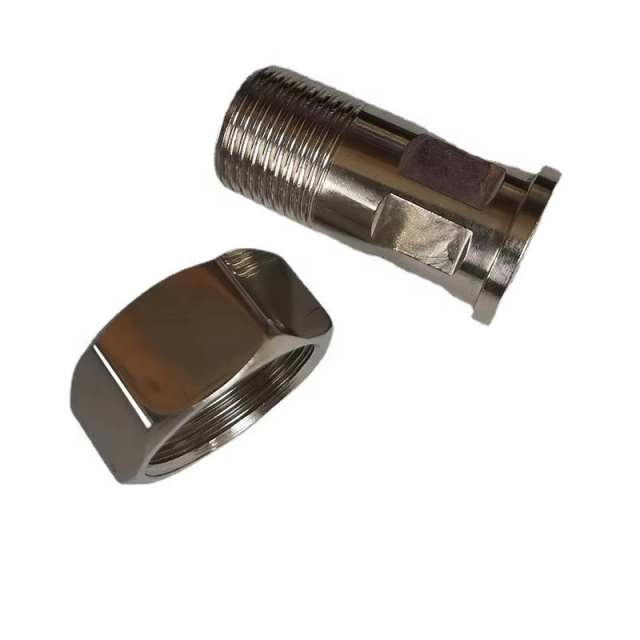

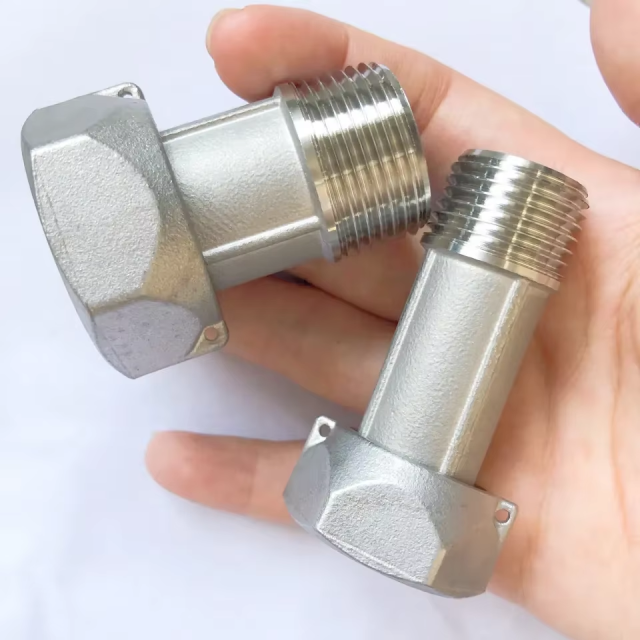

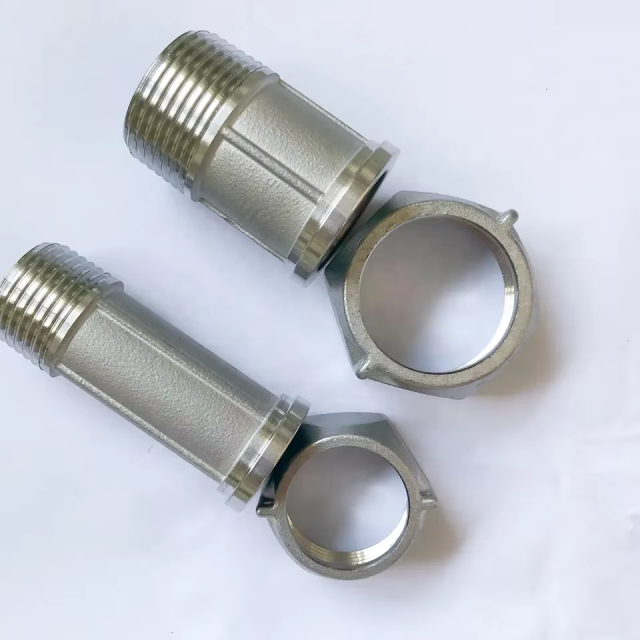

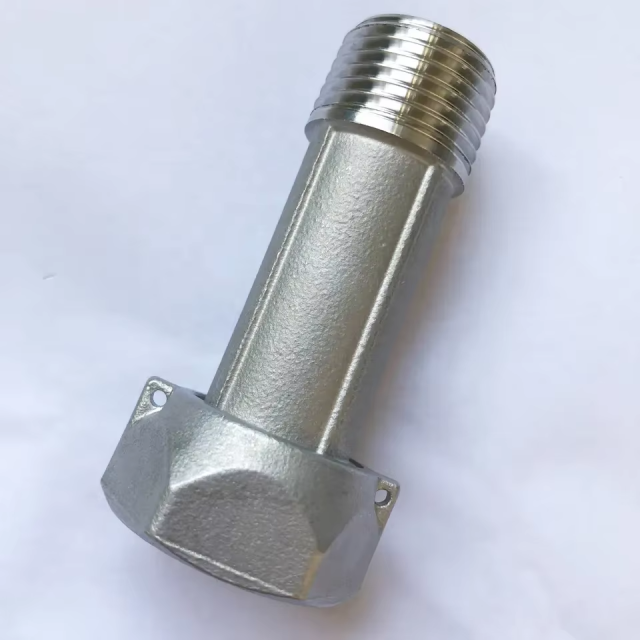

Name: Stainless Steel 304 316 Investment Casting Water Meter Connector
Brand: jzcastings.com
Availability: InStock
Rating: 5 (1 reviews)

Description

Stainless Steel Casting Water Meter Connector: A Durable and Reliable Plumbing Solution

Key Features & Benefits

Premium Stainless Steel Construction
- Made from 304 or 316 stainless steel, the connector offers superior resistance to rust, oxidation, and chemical corrosion, ensuring durability in both potable water and aggressive environments.
- The casting process ensures a seamless, one-piece design without weak joints, enhancing structural integrity under high pressure.
Precision Threaded Connections
- Equipped with standardized threads (e.g., NPT, BSP, ISO 228) for compatibility with most water meters and pipes.
- Available in various sizes to accommodate different meter diameters and plumbing configurations.
Leak-Proof Sealing
- Integrated EPDM or silicone gaskets provide a tight seal, preventing water leakage even under varying pressure conditions.
- Some models feature compression fittings or flange connections for added reliability in critical applications.
High-Pressure & Temperature Tolerance
- Suitable for systems operating at high pressures (up to 16 bar/232 psi) and temperatures ranging from -20°C to 120°C (-4°F to 248°F).
Easy Installation & Maintenance
- Lightweight yet robust, the connector simplifies installation with hand-tightening or wrench adjustment.
- Smooth surface finish minimizes sediment buildup, facilitating quick cleaning and inspection.

Applications

Residential Water Metering: Connects household water meters to municipal supply lines.
Commercial Buildings: Used in hotels, offices, and schools for accurate water consumption tracking.
Industrial Systems: Integrates into manufacturing plants, irrigation networks, and wastewater treatment facilities.
Municipal Infrastructure: Supports large-scale water distribution projects with reliable connections.

Technical Specifications

Material: 304/316 Stainless Steel (casting grade)
Thread Type: NPT, BSPT, or customer-specified
Pressure Rating: PN16 (16 bar)
Temperature Range: -20°C to 120°C
Surface Finish: Polished or brushed to prevent scaling

Why Choose Stainless Steel Cast Connectors?

Longevity: Outlasts brass or plastic alternatives in harsh conditions.
Hygiene: Stainless steel is non-toxic and meets drinking water safety standards (e.g., NSF/ANSI 61).
Cost-Efficiency: Low maintenance and replacement costs over its lifespan.

Example Usage

"The stainless steel cast water meter connector features a 1" NPT male thread and a built-in EPDM seal, ensuring a secure, leak-free connection to the water meter in a high-rise apartment complex."

This product is a trusted choice for engineers and plumbers seeking a high-performance, corrosion-resistant, and easy-to-install solution for water metering systems.

Silica Sol Precision Casting Process

STEP 01

Wax Pattern Creation

Wax patterns are produced according to the customer’s CAD drawings or samples. This step determines the final dimensions, shape, and surface quality.

STEP 02

Shell Building with Silica Sol Slurry

The wax pattern is repeatedly dipped in a high-purity silica sol slurry and coated with refractory zircon sand, forming a strong ceramic shell.

STEP 03

Drying

Each layer is dried in a constant temperature and humidity environment to avoid cracks and ensure shell integrity.

STEP 04

Dewaxing & Shell Sintering

Wax is removed, and the ceramic shell is sintered at high temperature to achieve strength and dimensional stability.

STEP 05

Metal Pouring

Molten stainless steel 304, 316, carbon steel, alloy steel, or non-ferrous alloys are poured into the shell.

STEP 06

Shell Removal & Cleaning

The shell is broken away, and the raw casting is cleaned of any residual material.

STEP 07

Heat Treatment & Finishing

Heat treatments such as annealing, hardening, tempering, or surface hardening are applied to improve mechanical properties. Surface treatments like electropolishing or mirror polishing are available upon request.

Advantages of Silica Sol Investment Casting

· High Dimensional Accuracy – Tolerance grade CT4–CT6, ISO 8062 standards.
· Excellent Surface Finish – Ra 1.6–3.2 μm as-cast, Ra 0.8–3.2 μm after machining.
· Complex Shape Capability – Thin walls (0.5–0.8 mm) and intricate geometries.
· Material Versatility – Stainless steel, carbon steel, alloy steel, aluminum alloys, copper alloys.
· Reduced Machining – Near-net-shape production reduces post-processing time and cost.
· OEM & ODM Service – Fully customized according to drawings or samples.

Technical Specifications

Parameter	Specification
Materials	SS304 (CF8 / 1.4308), 304L (CF3), 316 (CF8M / 1.4408), 316L (CF3M / 1.4404 / 1.4409), WCB (1.0619), Carbon Steel #25/#35/#45, Alloy Steel, Aluminum Alloy, Copper Alloy
Casting Process	Silica Sol Precision Casting / Investment Casting / Lost-Wax Casting
Machining	CNC Machining Centers, CNC Lathes
Casting Tolerance	ISO 2768-mK, VDG P690 D1-D2, ISO 8062-3-2007 DCTG4-6, GCTG4-6
Casting Roughness	Ra 1.6–3.2 μm
Machining Tolerance	±0.005 mm, ISO 2768-f
Machining Roughness	Ra 0.8–3.2 μm
Weight Range	0.01–150 kg
Min. Wall Thickness	0.5–0.8 mm
Furnace Capacity	200 T
Finishing	Acid Passivation, Electropolishing, Mirror Polishing, Custom Surface Treatments
Heat Treatment	Annealing, Normalizing, Hardening, Tempering, Surface Hardening

Applications

Our silica sol precision castings are widely used in:
· Aerospace components
· Automotive parts & valve bodies
· Marine and shipbuilding hardware
· Medical instruments & surgical tools
· Industrial machinery & pump housings
· Agricultural machinery parts
· Architectural fittings & decorative hardware
· Pipe fittings & flanges
· OEM/ODM custom projects
