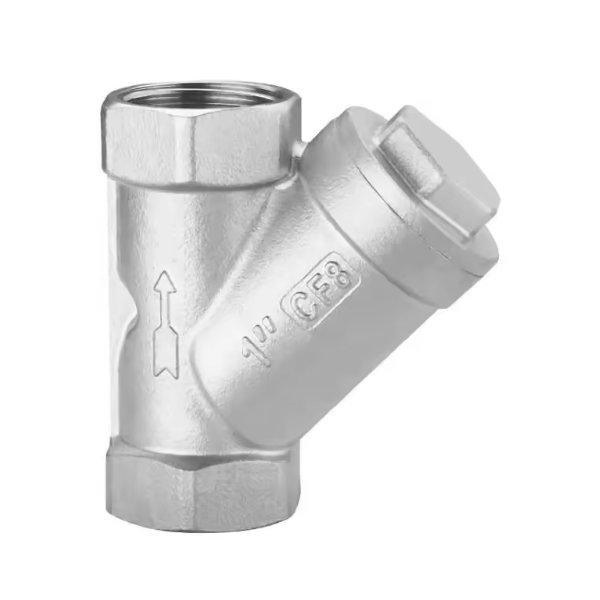

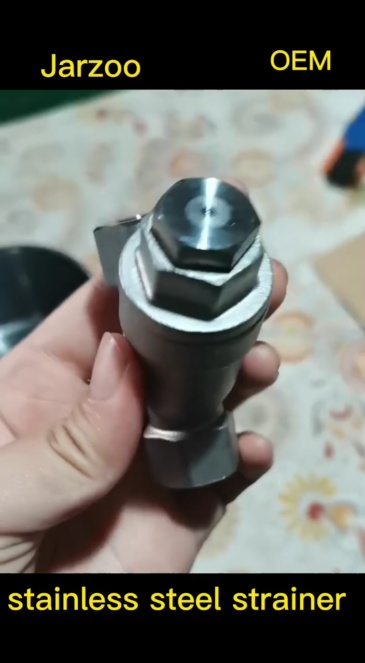

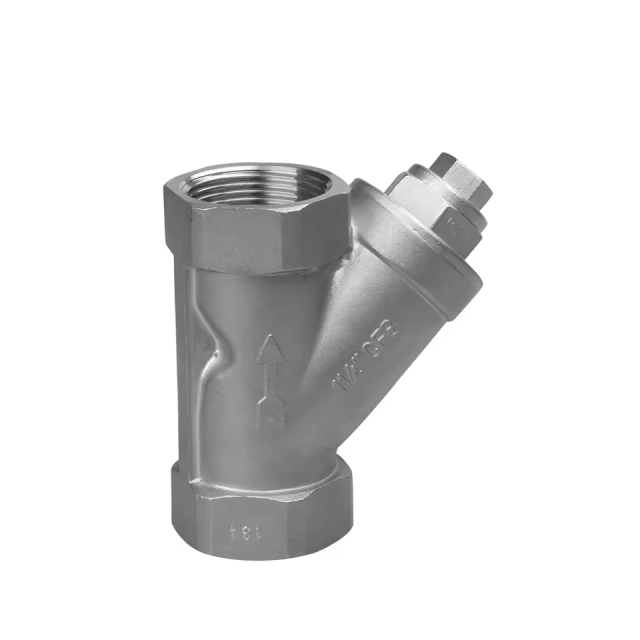

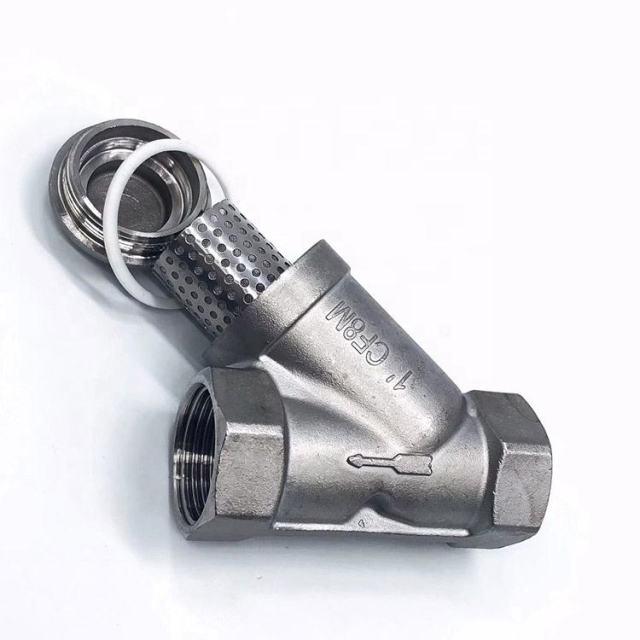

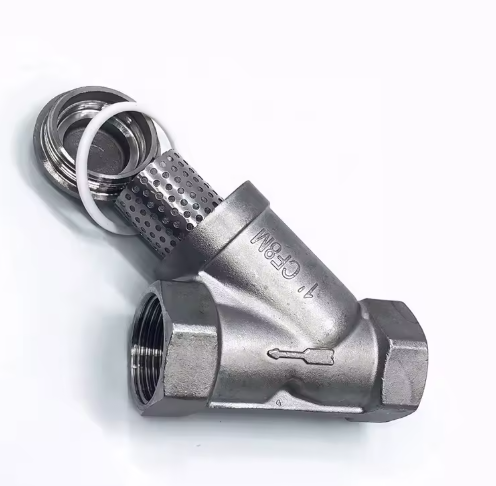

Stainless Steel 304 316 Y Type Strainers with Plug

Stainless Steel Y-Strainers for Efficient Pipeline Filtration

Stainless Steel Y-Strainers are critical components in pipeline systems, expertly designed to remove unwanted solids and protect vital equipment such as pumps, valves, and meters. By utilizing a Y-Type Pipeline Filter, industries can ensure smooth fluid flow, minimize downtime, and extend system service life.

Stainless steel filters are advanced filtration solutions engineered to efficiently remove impurities from liquids and gases. Built from high-grade 304 or 316L stainless steel, these corrosion-resistant filtration systems offer exceptional durability and reliability across a wide range of applications. They are ideal for industrial filtration processes, serving as sanitary strainers in food and pharmaceutical sectors, or as high-pressure filters in chemical and energy industries. With their ability to withstand extreme temperatures and harsh environments while maintaining strict hygienic standards, stainless steel filters ensure long service life and consistent performance where it matters most.

Basic Information

Key Features

Stainless steel filters are built to perform under demanding conditions, offering a range of key features tailored for industrial use:

• Corrosion-Resistant Filtration: Highly resistant to rust, acids, alkalis, and chlorides, these filters excel in harsh environments such as chemical processing and marine applications.
• High-Temperature Performance: Capable of operating continuously at temperatures up to 500°C (932°F), depending on seal materials.
• High-Pressure Filter Capability: Designed to withstand pressures from vacuum up to 100 bar (1,450 psi), making them suitable for rigorous industrial filtration
• Sanitary Strainer Design: Features crevice-free construction and electropolished surfaces ideal for hygienic applications including food, beverage, and pharmaceutical industries.
• Customizable Filtration Options: Configurable with mesh screens, sintered metal media, or pleated cartridges to achieve precise particle retention for various uses.

Technical Specifications

Category	Details
Material Grades	• 304 Stainless Steel: General corrosion resistance; suitable for water, oils, and mild chemicals.
	• 316L Stainless Steel: Excellent pitting and crevice corrosion resistance; ideal for saltwater, pharmaceutical, and aggressive fluids.
	• Duplex/Super Duplex Stainless Steel: For ultra-high-pressure and highly corrosive environments (e.g., offshore oil & gas).
Filtration Media	• Wire Mesh Screens: Micron ratings from 5–2,000 µm; reusable and backflushable.
	• Sintered Metal Elements: Porosity from 0.1–100 µm; high dirt-holding capacity and strength.
	• Pleated Cartridges: High surface area; compatible with activated carbon or membrane filters.
End Connections	Threaded (NPT/BSP), Flanged (ANSI/DIN), Sanitary Tri-Clamp®, or Quick-Connect Fittings.
Certifications	Compliant with FDA, 3A Sanitary Standards, ASME BPE, PED 2014/68/EU, and ATEX (for explosive atmospheres).

Applications

Stainless steel filters deliver high-performance contamination control across a wide range of critical industries:

• Food & Beverage Production:Used to filter juices, beer, wine, dairy products, and edible oils by removing sediments, yeast, and impurities to ensure product quality and safety.
• Pharmaceutical & Biotechnology:Essential for the sterile filtration of APIs (Active Pharmaceutical Ingredients), buffers, and WFI (Water for Injection), meeting stringent hygienic standards.
• Chemical Processing:Protects sensitive equipment such as pumps, valves, and nozzles from abrasive particles in acids, solvents, and polymers.
• Oil & Gas:Effectively removes sand, scale, and rust from wellhead fluids and hydraulic systems, enhancing operational reliability.
• Water Treatment:Serves as pre-filtration for reverse osmosis (RO) systems and wastewater treatment plants, protecting membranes and downstream processes.
• Automotive & Aerospace:Applied in filtering fuel, lubricants, and hydraulic fluids within engines and aviation systems to ensure safety and performance.

Advantages Over Alternative Materials

• Longevity:Outlasts plastic or carbon steel filters in corrosive environments, significantly reducing replacement frequency and downtime.
• Thermal Stability:Maintains structural integrity at extreme temperatures, unlike plastic filters which may deform or fail under heat.
• Chemical Compatibility:Highly resistant to a wide range of chemicals, including strong acids and bases, ensuring broad applicability.
• Hygienic Compliance:Meets stringent sanitary standards required in regulated industries such as pharmaceuticals and food processing.

Selection Guide

When selecting a stainless steel filter, consider the following factors to ensure optimal performance and compatibility:



Fluid Compatibility:

Ensure that the seals (e.g., Viton®, EPDM) are resistant to chemical degradation based on your fluid type.

Filtration Requirement:

Choose the appropriate micron rating (e.g., 5 µm for fine sediments) based on the size of contaminants to be removed.

Flow Rate & Pressure:

Match the filter size and pressure rating to your system’s operational demands to maintain efficiency and avoid failures.

Certification Needs:

Verify that the filter complies with required industry standards such as FDA, ASME BPE, or other relevant regulations.

Product Types

• Inline Filters (Basket/Y-Strainers): Cost-effective design for coarse filtration, protecting pumps from debris.
• Basket Strainers: High debris capacity for high-flow applications.
• Y-Strainers: Compact size, suitable for vertical and horizontal setups.
• Duplex Filters: Dual-chamber design allows continuous operation while one chamber is cleaned.
• High-Pressure Filters: Rated up to 1,000 bar (14,500 psi); ideal for hydraulic systems and oilfield equipment.
• Sanitary Filters: Electropolished surfaces and Tri-Clamp® connections for food and pharmaceutical processing.
• Automatic Backflush Filters: Self-cleaning through reverse flow or mechanical agitation, minimizing downtime and labor.

Why Choose Us?

At Jarzoo, we pride ourselves on delivering exceptional value through our extensive industry experience and commitment to quality. With over 32 years in manufacturing, we understand the unique needs of our clients and strive to provide tailored solutions.

With over 32 years of expertise in manufacturing, our professional team, including seasoned R&D and international trade specialists, ensures a deep understanding of industry needs.

We adhere to stringent material selection and quality inspection processes. Our rigorous QC system guarantees that you receive products of the highest quality at competitive prices.

Our attentive pre-sales and after-sales support ensures timely resolution of any issues you may encounter, prioritizing customer satisfaction at every step.

We offer OEM and ODM services, allowing customization based on your specific drawings or product requirements. Our experienced technicians are ready to assist you in designing exactly what you need.

Get a Free Quotation Today

Submit your drawings or samples, and our engineering team will deliver technical consultation, 3D modeling, and a competitive quote within 24 hours

Packaging & Delivery

Custom Services

	Customization Options	Minimum Order Quantity
	Custom Logo	100 pieces
	Custom Packaging	100 pieces
	Graphic Customization	100 pieces
	Product Customization	100 pieces

FAQs

Q1: What is your typical delivery time?

Samples are usually delivered within 25 working days, while bulk production generally takes 60 working days.

Q2: What are your payment terms?

For payments up to $1,000, full payment is required upfront. For amounts of $1,000 or more, a 30% T/T deposit is needed in advance, with the remaining balance due before shipment.

Q3: What information do you need from customers for product customization?

We can create customized products based on your provided drawings and samples.

Q4: Can you ensure traceability?

Yes, tested samples will be kept in our laboratory for a minimum of two years.
