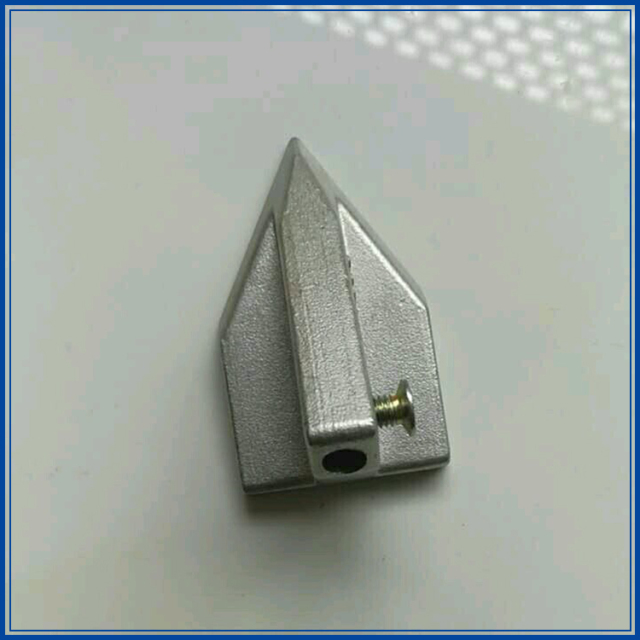

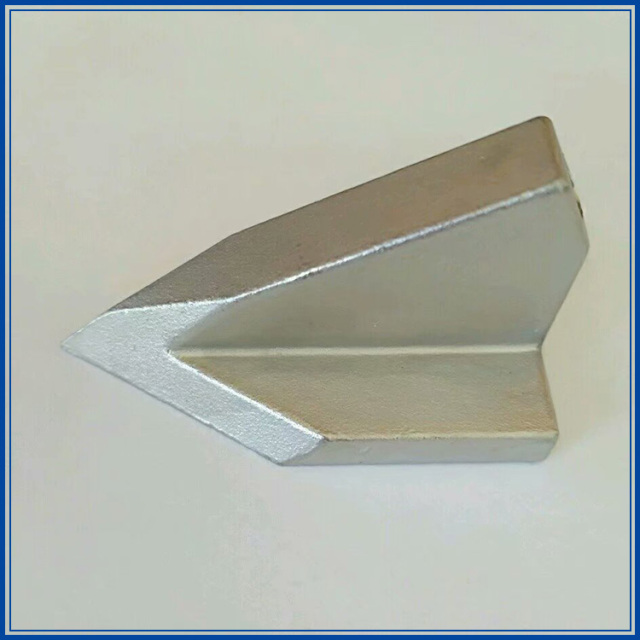

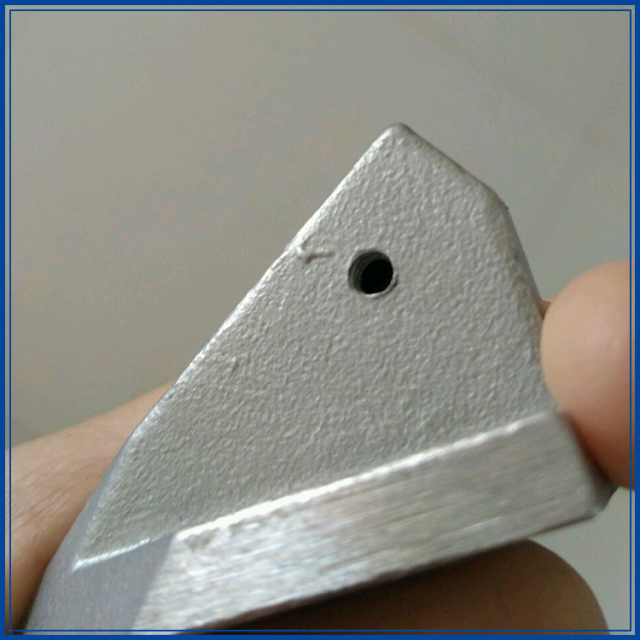

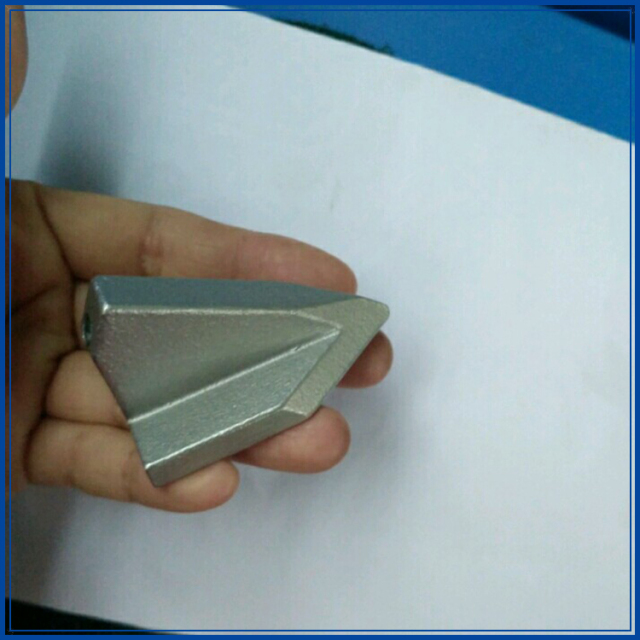

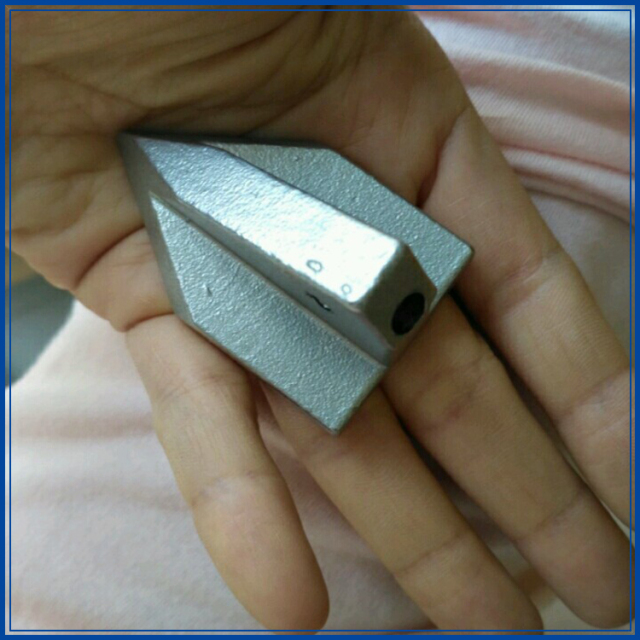

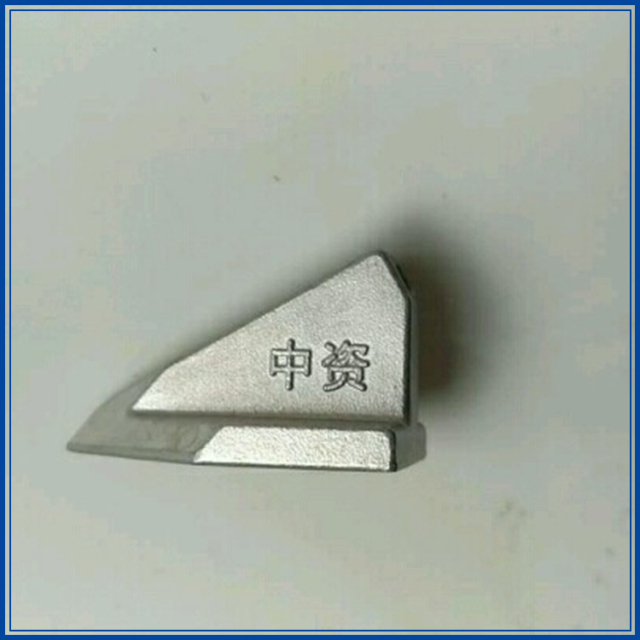

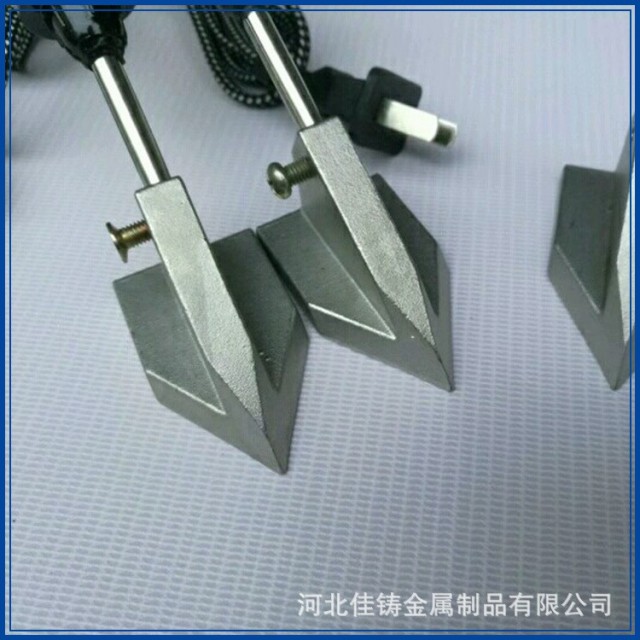

Stainless Steel 304 Investment Casting Mini Soldering Iron Tip for Picture Framing Machines

Precision Casting Components for Picture Framing Machines: English Introduction

Product Overview

Precision casting components for picture framing machines are high-accuracy metal parts manufactured using advanced investment casting (lost-wax casting) technology. These components are integral to the structural integrity, operational precision, and longevity of automated or manual framing equipment, ensuring smooth performance in tasks such as mat cutting, frame assembly, and corner joining.

Key Features

1. Material & Process
   • Stainless Steel (304/316L): Resists corrosion from adhesives, varnishes, and humidity in framing workshops.
   • Aluminum Alloy (A356/A380): Lightweight yet durable, ideal for reducing machine vibration.
   • Investment Casting: Achieves tolerances as tight as ±0.05mm, eliminating the need for extensive post-machining.
2. Surface Finish & Treatment
   • Polished/Brushed Finishes: Enhances aesthetic appeal and reduces friction in moving parts.
   • Anodizing (for aluminum) or Passivation (for stainless steel): Improves corrosion resistance and extends service life.
3. Design Flexibility
   • Supports complex geometries (e.g., internal channels, thin walls) for customized framing machine functions.
   • One-Piece Construction: Reduces assembly errors and improves structural stability.

Technical Specifications

• Materials: 304/316L stainless steel, A356/A380 aluminum alloy, or customized alloys.
• Tolerances: ±0.05mm–±0.2mm (depending on component size).
• Surface Roughness: Ra ≤ 1.6μm (polished) or Ra ≤ 3.2μm (as-cast).
• Weight Range: 0.01kg–50kg per component.
• Heat Treatment: Optional T6 tempering (for aluminum) to enhance hardness.

Applications

1. Automated Framing Machines
   • Mat Cutters: Precision-cast guide rails and blade holders ensure clean, straight cuts.
   • Frame Assembly Systems: Cast hinges and clamps provide secure, repeatable corner joints.
   • V-Nailers: Durable housings and anvils withstand high-pressure nail insertion.
2. Manual Framing Tools
   • Corner Crimpers: Cast handles and jaws offer ergonomic grip and consistent pressure.
   • Underpinners: Heavy-duty cast bases and vices stabilize frames during assembly.
3. Custom Framing Equipment
   • Specialized Clamps/Brackets: Tailored to fit unique frame profiles or materials (e.g., acrylic, metal).

Advantages

1. High Precision: Minimizes misalignment, reducing material waste and rework.
2. Durability: Withstands repeated use and exposure to chemicals without deformation.
3. Cost-Effectiveness: Lower production costs compared to CNC-machined parts for complex designs.
4. Quick Turnaround: Investment casting allows rapid prototyping and scalable production.

Example Products

1. Stainless Steel Mat Cutter Guide Rail
   • Material: 316L stainless steel.
   • Features: Polished surface, ±0.1mm tolerance, corrosion-resistant.
   • Application: High-end automated mat cutting systems.
2. Aluminum Alloy Frame Clamp Hinge
   • Material: A380 aluminum alloy, T6 heat-treated.
   • Features: Lightweight, anodized finish, ±0.08mm tolerance.
   • Application: Manual corner joining tools for wooden frames.
3. Custom Underpinner Anvil
   • Material: 304 stainless steel.
   • Features: Hardened surface, precision-cast V-groove for nail alignment.
   • Application: Heavy-duty frame assembly machines.

Manufacturing Process

1. Wax Pattern Creation: 3D-printed or molded wax prototypes of the component.
2. Shell Building: Coating wax patterns with ceramic slurry to form molds.
3. Dewaxing & Firing: Melting wax and hardening ceramic shells at high temperatures.
4. Metal Pouring: Injecting molten metal (e.g., stainless steel, aluminum) into the mold.
5. Post-Processing: Cutting, grinding, and surface treating the cast components.

Conclusion

Precision casting components for picture framing machines deliver unmatched accuracy, durability, and cost efficiency, making them indispensable for framing professionals seeking to optimize equipment performance and product quality.

"Elevate your framing equipment with precision-engineered castings—where every detail matters." 🖼️🔧
