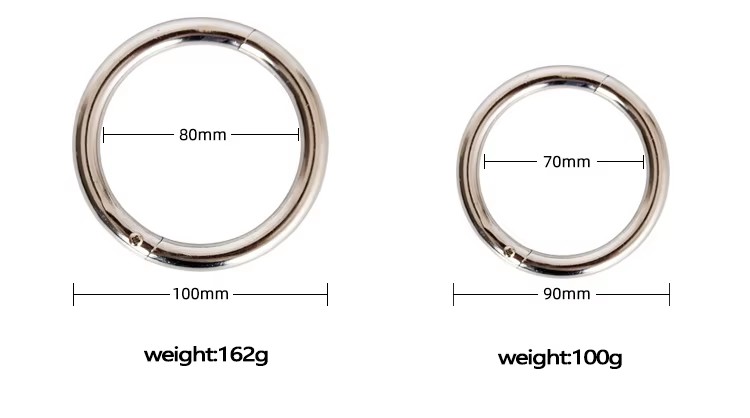

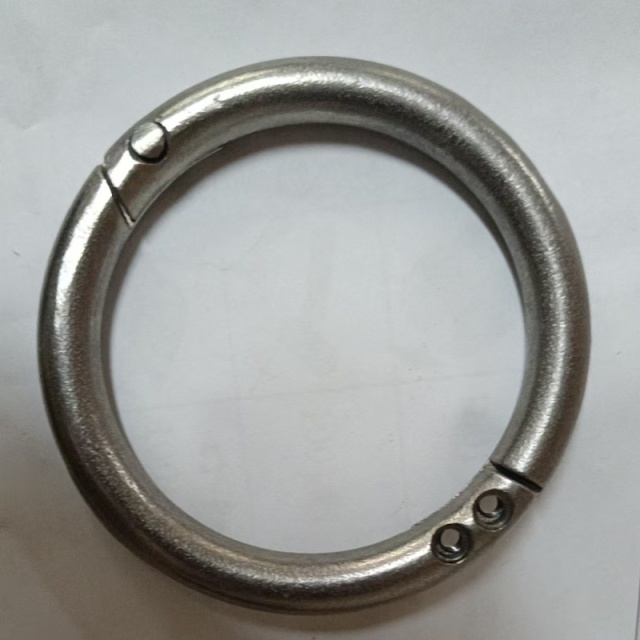

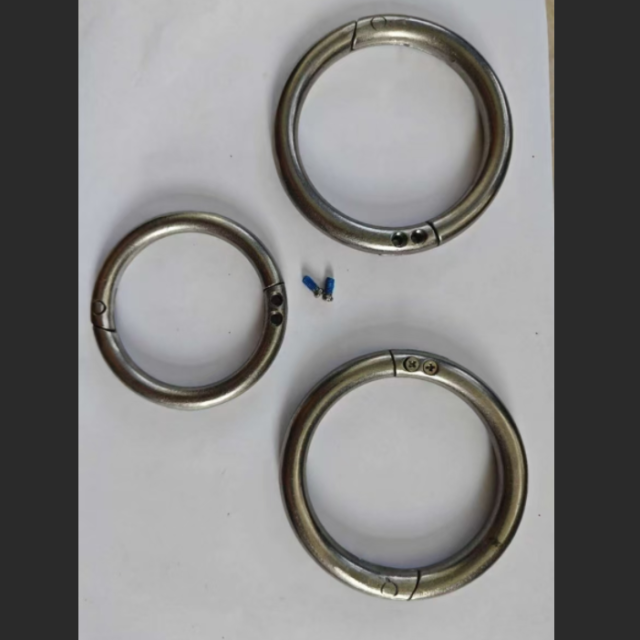

Name: Stainless Steel Cattle Nose Rings Bull Ox Cow Bovine Traction Clasp Farm Animal
Brand: jzcastings.com
Availability: InStock
Rating: 5 (1 reviews)

Description

* 【High-quality Materials】The cow nose ring is made of premium stainless steel, which is anti-rust and available for long service life.

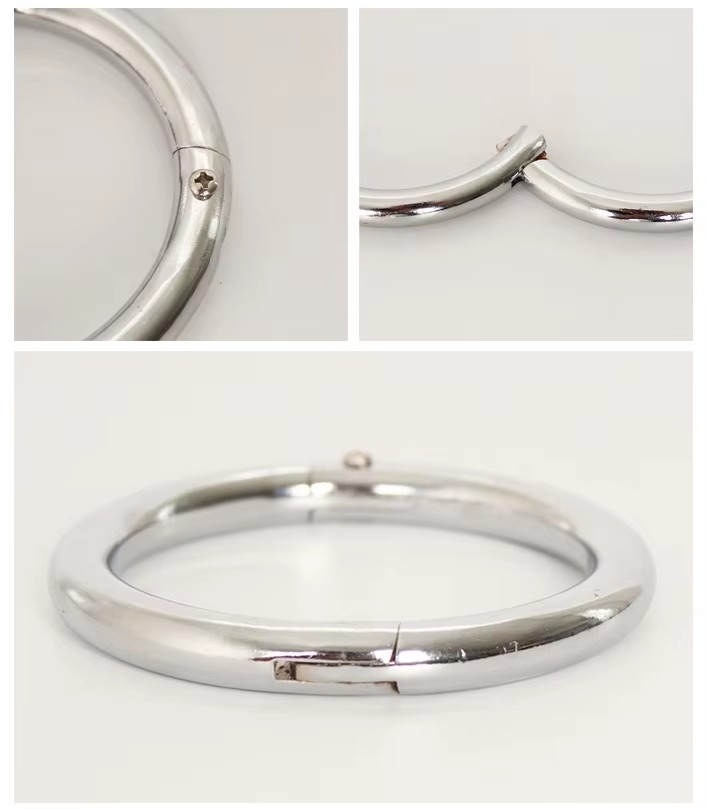

* 【Smooth】The surface of this cow nose ring is smooth and burr-free, preventing accidental injuries.
* 【Practical】The operation is simple and easy to use, automatic locking, high practical performance.
* 【Easy to Use】This cattle nose ring is easy to use, just open it with a screwdriver.
* 【Livestock Tools】Our bull nose ring is an essential tool for farmers and veterinarians.

How do I install a bull nose ring?

1.Use a screwdriver to loosen the fixing screw, and then break the bull nose ring to the right size, ready to ring the bull nose.

2.Before piercing the bull's nose ring, a person needs to hold the neck of the cow and lift it up, so that the cow has no strength to resist, and then touch the thin place between the two nostrils of the cow's nose, like human ear cartilage, and close the bull's nose ring after passing the cow's nose, tighten the screw with the product, and slightly twist the screw head off.

Silica Sol Precision Casting Process

STEP 01

Wax Pattern Creation

Wax patterns are produced according to the customer’s CAD drawings or samples. This step determines the final dimensions, shape, and surface quality.

STEP 02

Shell Building with Silica Sol Slurry

The wax pattern is repeatedly dipped in a high-purity silica sol slurry and coated with refractory zircon sand, forming a strong ceramic shell.

STEP 03

Drying

Each layer is dried in a constant temperature and humidity environment to avoid cracks and ensure shell integrity.

STEP 04

Dewaxing & Shell Sintering

Wax is removed, and the ceramic shell is sintered at high temperature to achieve strength and dimensional stability.

STEP 05

Metal Pouring

Molten stainless steel 304, 316, carbon steel, alloy steel, or non-ferrous alloys are poured into the shell.

STEP 06

Shell Removal & Cleaning

The shell is broken away, and the raw casting is cleaned of any residual material.

STEP 07

Heat Treatment & Finishing

Heat treatments such as annealing, hardening, tempering, or surface hardening are applied to improve mechanical properties. Surface treatments like electropolishing or mirror polishing are available upon request.

Advantages of Silica Sol Investment Casting

· High Dimensional Accuracy – Tolerance grade CT4–CT6, ISO 8062 standards.
· Excellent Surface Finish – Ra 1.6–3.2 μm as-cast, Ra 0.8–3.2 μm after machining.
· Complex Shape Capability – Thin walls (0.5–0.8 mm) and intricate geometries.
· Material Versatility – Stainless steel, carbon steel, alloy steel, aluminum alloys, copper alloys.
· Reduced Machining – Near-net-shape production reduces post-processing time and cost.
· OEM & ODM Service – Fully customized according to drawings or samples.

Technical Specifications

Parameter	Specification
Materials	SS304 (CF8 / 1.4308), 304L (CF3), 316 (CF8M / 1.4408), 316L (CF3M / 1.4404 / 1.4409), WCB (1.0619), Carbon Steel #25/#35/#45, Alloy Steel, Aluminum Alloy, Copper Alloy
Casting Process	Silica Sol Precision Casting / Investment Casting / Lost-Wax Casting
Machining	CNC Machining Centers, CNC Lathes
Casting Tolerance	ISO 2768-mK, VDG P690 D1-D2, ISO 8062-3-2007 DCTG4-6, GCTG4-6
Casting Roughness	Ra 1.6–3.2 μm
Machining Tolerance	±0.005 mm, ISO 2768-f
Machining Roughness	Ra 0.8–3.2 μm
Weight Range	0.01–150 kg
Min. Wall Thickness	0.5–0.8 mm
Furnace Capacity	200 T
Finishing	Acid Passivation, Electropolishing, Mirror Polishing, Custom Surface Treatments
Heat Treatment	Annealing, Normalizing, Hardening, Tempering, Surface Hardening

Applications

Our silica sol precision castings are widely used in:
· Aerospace components
· Automotive parts & valve bodies
· Marine and shipbuilding hardware
· Medical instruments & surgical tools
· Industrial machinery & pump housings
· Agricultural machinery parts
· Architectural fittings & decorative hardware
· Pipe fittings & flanges
· OEM/ODM custom projects
