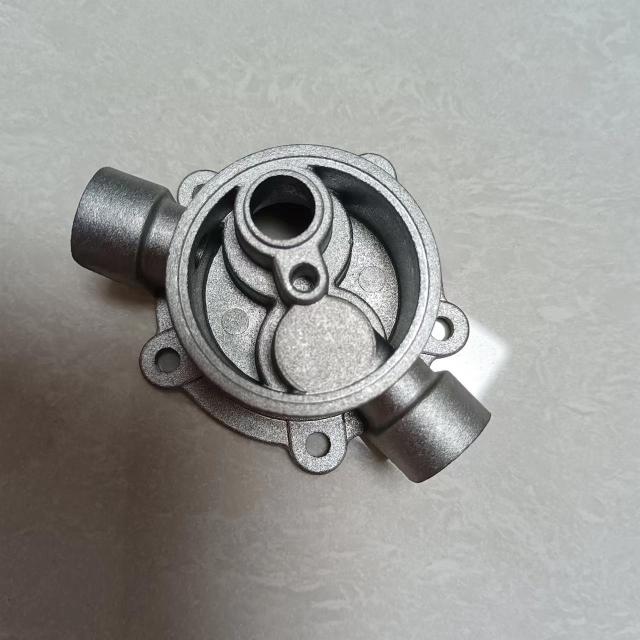

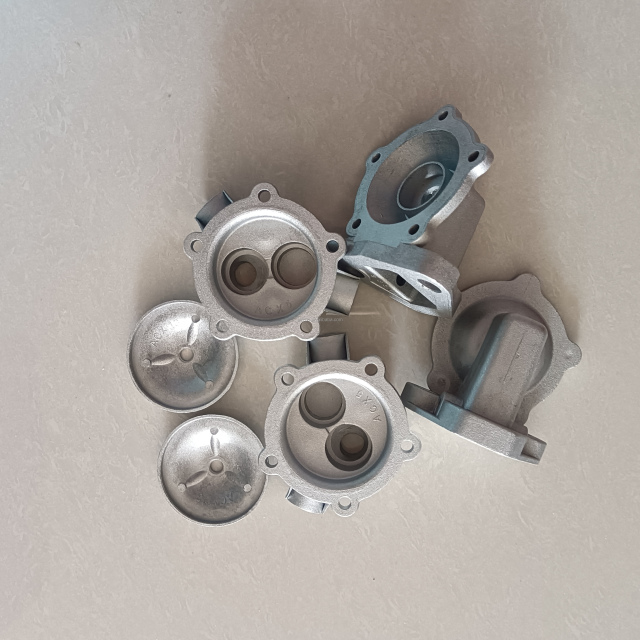

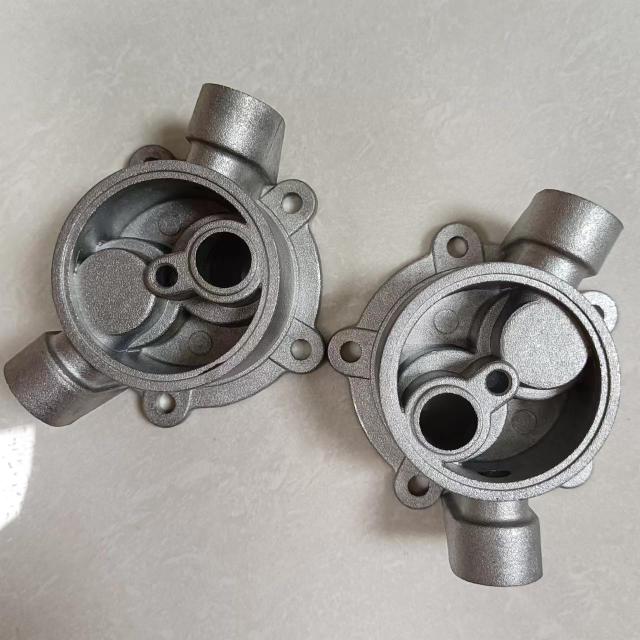

zinc alloy die casting aluminum die casting

Key Components and Steps of Die Casting

1. Die (Mold): The die is the core of the die casting process. It is typically made of high-quality steel and consists of two halves: the cover die and the ejector die. The cover die is fixed, while the ejector die can move to facilitate part removal. The die cavity is shaped to match the final part geometry, and it may include features such as cores, slides, and ejector pins for creating internal holes, undercuts, and facilitating part ejection.
2. Molten Metal Preparation: The choice of metal depends on the desired properties of the final part. Common metals used in die casting include aluminum alloys, zinc alloys, magnesium alloys, and copper alloys. The metal is melted in a furnace to the appropriate temperature, ensuring it has the right fluidity for injection into the die.
3. Injection: Once the molten metal reaches the desired temperature, it is injected into the die cavity under high pressure. The pressure ranges from a few thousand to tens of thousands of pounds per square inch (psi), depending on the metal type, part size, and complexity. The high pressure ensures that the molten metal fills all the intricate details of the die cavity, including thin walls and fine features.
4. Solidification: After injection, the molten metal rapidly cools and solidifies within the die cavity. The cooling time is carefully controlled to ensure that the part reaches sufficient strength and dimensional stability before being ejected from the die. The die itself is usually cooled by circulating water or oil to maintain a consistent temperature and improve cycle times.
5. Ejection: Once the part has solidified, the ejector die moves forward, and ejector pins push the part out of the die cavity. The part is then removed from the die casting machine, and any excess material, such as flash (a thin layer of metal that may form at the parting line of the die), is trimmed off.

Advantages of Die Casting

• High Precision and Dimensional Accuracy: Die casting can produce parts with tight tolerances and excellent surface finish, reducing the need for additional machining operations.
• Complex Shapes and Features: The process allows for the creation of parts with intricate geometries, including internal holes, threads, and undercuts, which would be difficult or impossible to achieve with other manufacturing methods.
• High Production Efficiency: Die casting is a high-speed process, with cycle times ranging from a few seconds to a few minutes, depending on the part size and complexity. This makes it suitable for mass production, resulting in low per-unit costs.
• Material Utilization: The process generates minimal waste, as most of the molten metal is used to form the part, and any excess material can be recycled and reused.
• Strength and Durability: Die-cast parts often exhibit high strength and good mechanical properties, making them suitable for a wide range of applications, including automotive, aerospace, electronics, and consumer goods.

Applications of Die Casting

Die casting is widely used in various industries due to its numerous advantages. Some common applications include:

• Automotive Industry: Die-cast parts are used in engines, transmissions, chassis, and body components, such as cylinder heads, intake manifolds, wheel hubs, and door handles.
• Electronics Industry: The process is used to manufacture housings for electronic devices, such as laptops, smartphones, and cameras, as well as heat sinks and connectors.
• Consumer Goods: Die casting is employed in the production of household appliances, furniture, and sporting goods, including refrigerator components, lamp fixtures, and bicycle frames.
• Aerospace Industry: Although used to a lesser extent than in other industries due to strict weight and performance requirements, die casting is still used for certain aerospace components, such as brackets, fittings, and housings.

In conclusion, die casting is a well-established and widely used metal forming process that offers numerous advantages in terms of precision, efficiency, and versatility. Its ability to produce complex parts with high quality and at a low cost makes it an essential manufacturing method in many industries.

Advantages of Silica Sol Investment Casting

· High Dimensional Accuracy – Tolerance grade CT4–CT6, ISO 8062 standards.
· Excellent Surface Finish – Ra 1.6–3.2 μm as-cast, Ra 0.8–3.2 μm after machining.
· Complex Shape Capability – Thin walls (0.5–0.8 mm) and intricate geometries.
· Material Versatility – Stainless steel, carbon steel, alloy steel, aluminum alloys, copper alloys.
· Reduced Machining – Near-net-shape production reduces post-processing time and cost.
· OEM & ODM Service – Fully customized according to drawings or samples.

Technical Specifications

Applications

Our silica sol precision castings are widely used in:
· Aerospace components
· Automotive parts & valve bodies
· Marine and shipbuilding hardware
· Medical instruments & surgical tools
· Industrial machinery & pump housings
· Agricultural machinery parts
· Architectural fittings & decorative hardware
· Pipe fittings & flanges
· OEM/ODM custom projects

Quality Assurance
